Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 4 illustrations

Illustrations

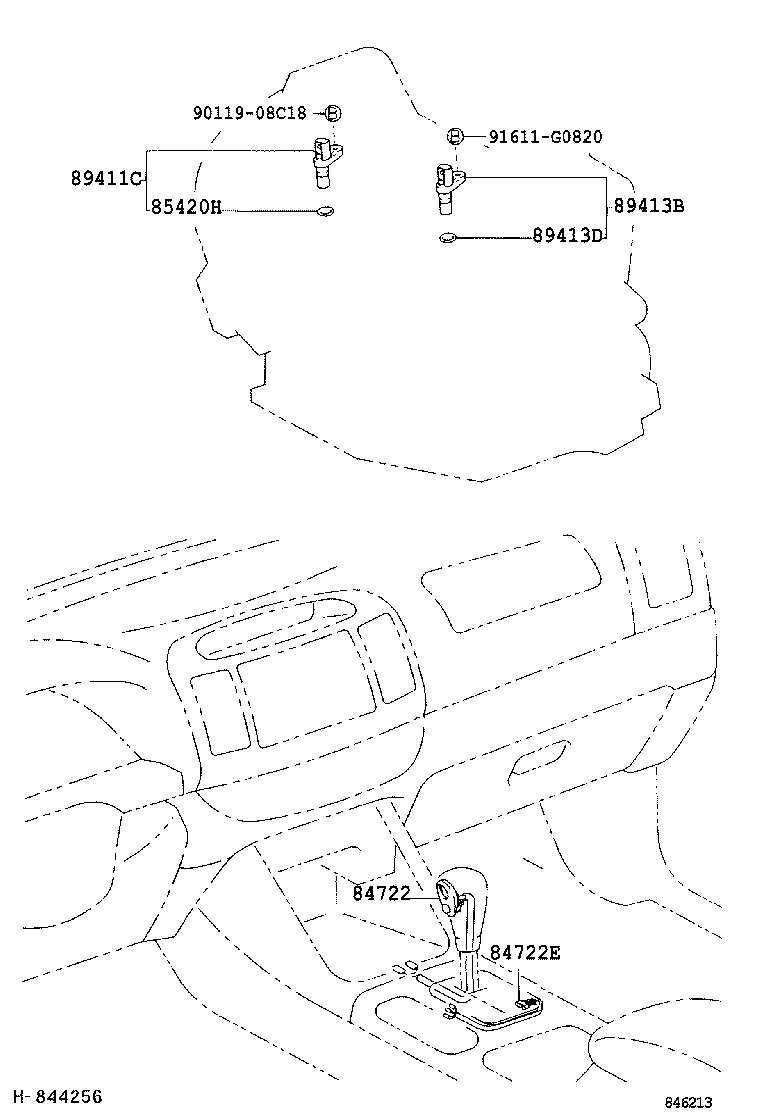

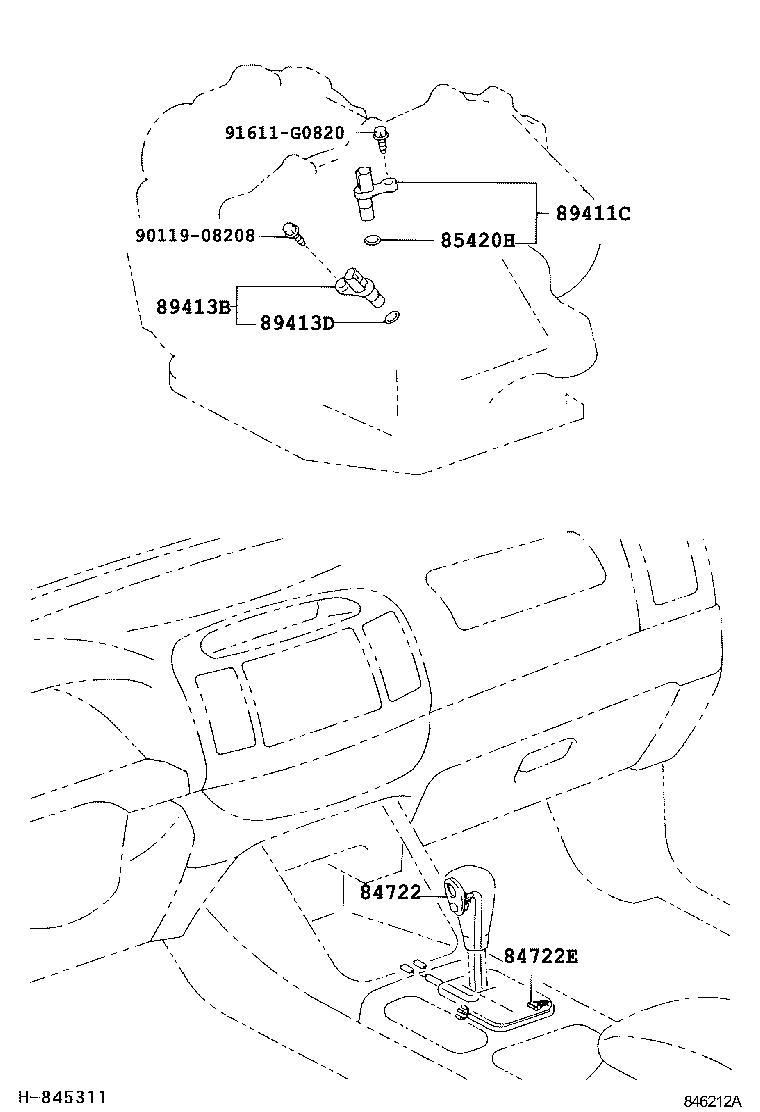

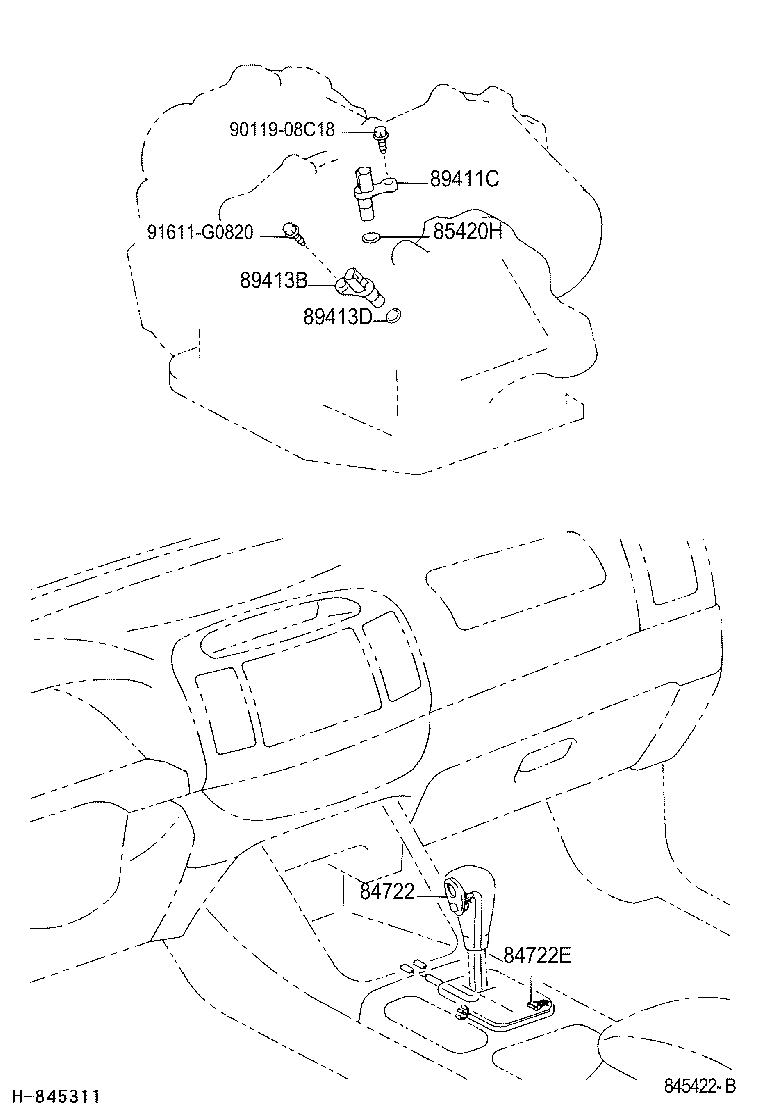

Figure 844255E 844255E 2001-07 → 2004-06 Figure 845422B 845422B 2002-12 → 2004-06 Figure 846212A 846212A 2004-06 → — Figure 846213 846213 2004-06 → —

Part groups

PNCDescription
84722 Switch, Transmission Control
84722E Switch, Transmission Control
85420H Ring, O(FOR SPEED SENSOR)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
