Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

9 part groups · 4 illustrations

Illustrations

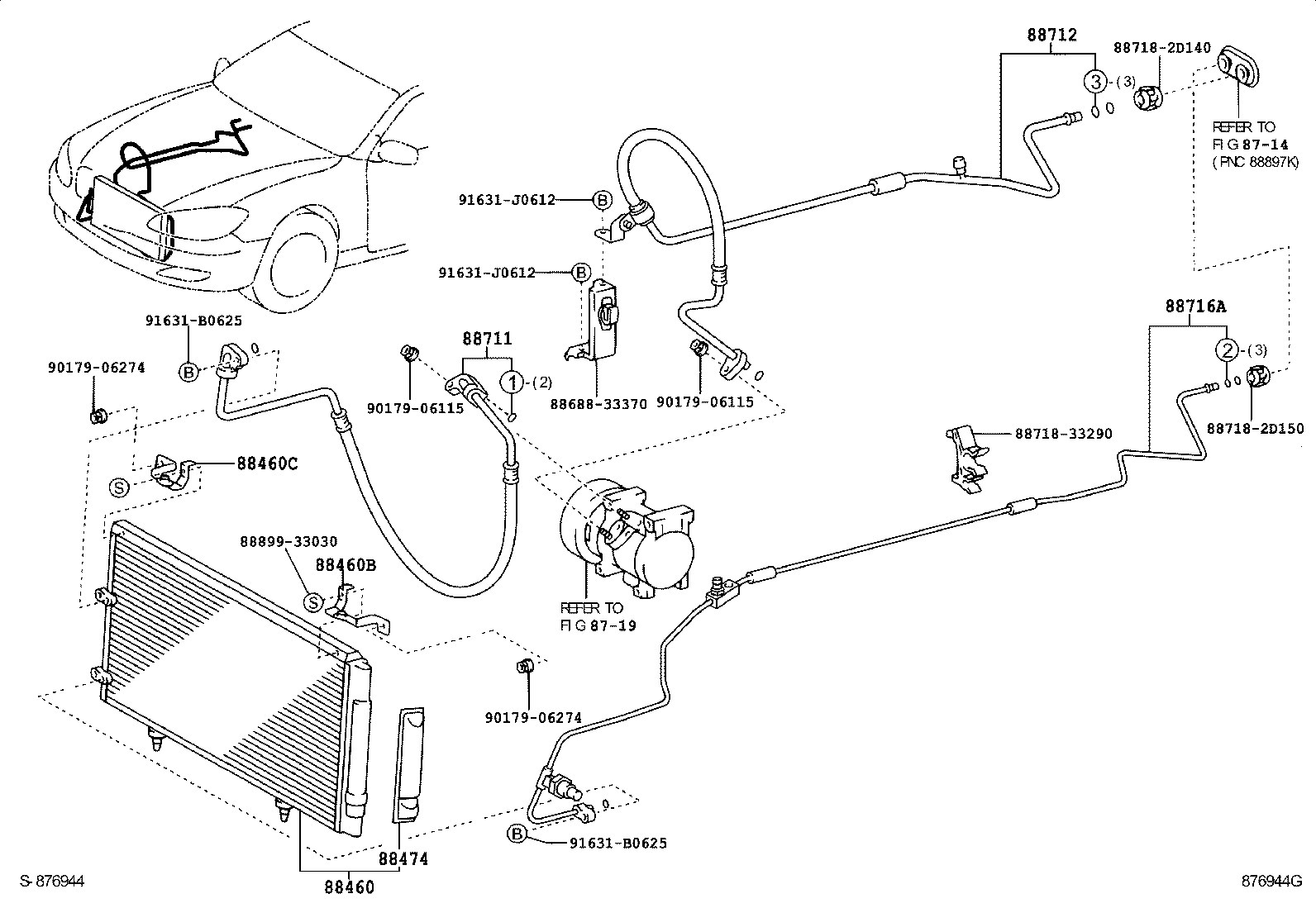

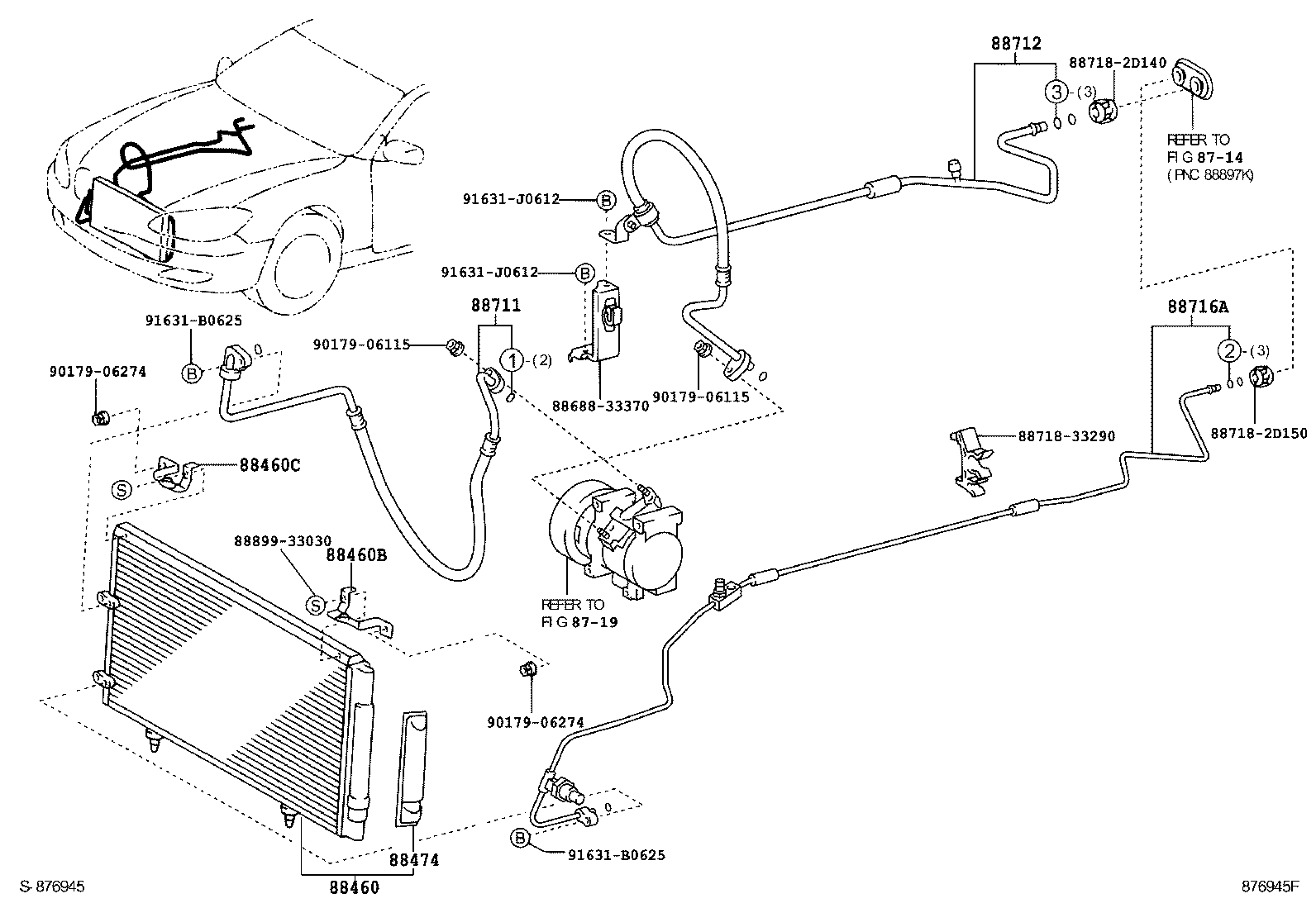

Figure 875013N 875013N 2001-07 → 2004-06 Figure 876944G 876944G 2004-06 → — Figure 876945F 876945F 2004-06 → — Figure 876947 876947 2001-07 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
