Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

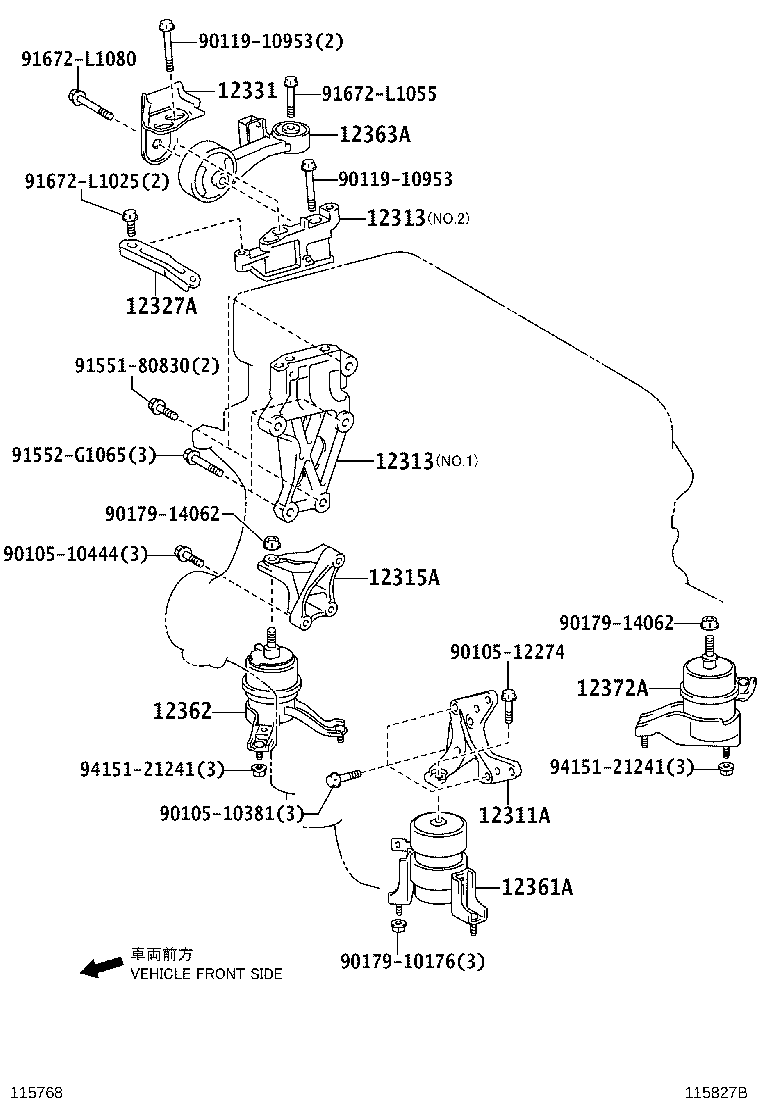

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-28210 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12311-31060 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12311-31060 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12311-36030 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) | ||||
| 12313-31010 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12313-31010 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12313-36010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12313-36030 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-28070 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12315-31100 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12315-31100 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12319-36010 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12327A — Stay, Engine Mounting, NO.2 RH | ||||
| 12327-28030 |
Stay, Engine Mounting, NO.2 RH
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12327-31010 note |
Stay, Engine Mounting, NO.2 RH
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12327-31020 note |
Stay, Engine Mounting, NO.2 RH
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12327-31010 note |
Stay, Engine Mounting, NO.2 RH
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12327-31020 note |
Stay, Engine Mounting, NO.2 RH
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12327-36010 |
Stay, Engine Mounting, NO.2 RH
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12331 — Stay, Engine Mounting, NO.3 RH | ||||
| 12331-31010 |
Stay, Engine Mounting, NO.3 RH
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12331-31010 |
Stay, Engine Mounting, NO.3 RH
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12331-36020 |
Stay, Engine Mounting, NO.3 RH
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12361-28220 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12361-28220 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-01 → 2009-09
ended
|
2ARFE ASV40 JPP | — | |
| 12361-28221 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-28190 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12362-31040 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12362-31040 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12362-36030 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12363A — Rod, Engine Moving Control | ||||
| 12363-31010 |
Rod, Engine Moving Control
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12363-31010 |
Rod, Engine Moving Control
2009-01 → 2010-10
ended
|
2GRFE GSV40 JPP | — | |
| 12363-31011 |
Rod, Engine Moving Control
2010-11 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12363-36020 |
Rod, Engine Moving Control
2009-01 → 2010-10
ended
|
2ARFE ASV40 JPP | — | |
| 12363-36021 |
Rod, Engine Moving Control
2010-11 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12306-28040 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP 5F | — | |
| 12372-28200 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP 5FC | — | |
| 12372-31010 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12372-28200 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12372-31010 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
