Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

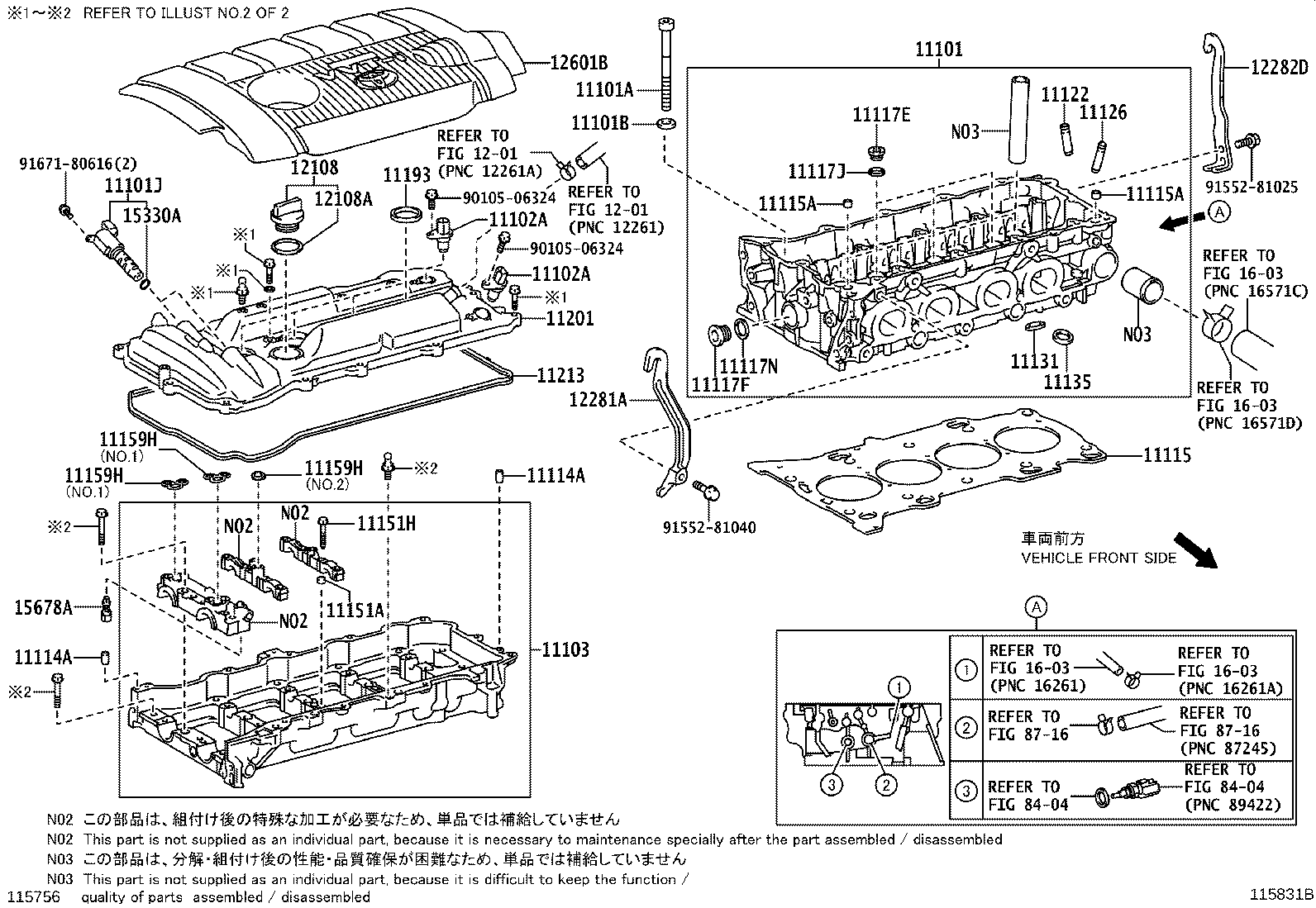

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-0H011 note |
Head Sub-assy, Cylinder
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11101-28012 note |
Head Sub-assy, Cylinder
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11101-39535 |
Head Sub-assy, Cylinder
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11101-39535 |
Head Sub-assy, Cylinder
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11101-39715 |
Head Sub-assy, Cylinder
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 note |
Bolt(FOR CYLINDER HEAD SET)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90910-A2006 note |
Bolt(FOR CYLINDER HEAD SET)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-28020 note |
Valve Assy, Camshaft Timing Oil Control
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 15330-37010 |
Valve Assy, Camshaft Timing Oil Control
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11102A — Sensor, Camshaft Position | ||||
| 90080-19014 note |
Sensor, Camshaft Position
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90919-05026 note |
Sensor, Camshaft Position
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90919-05060 |
Sensor, Camshaft Position
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11103 — Housing Sub-assy, Camshaft | ||||
| 11103-36010 |
Housing Sub-assy, Camshaft
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11114A — Pin, Straight | ||||
| 90250-06003 note |
Pin, Straight
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-28040 note |
Gasket, Cylinder Head
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11115-31060 |
Gasket, Cylinder Head
2006-01 → 2008-11
ended
|
2GRFE GSV40 JPP | — | |
| 11115-31080 |
Gasket, Cylinder Head
2008-11 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11115-31080 |
Gasket, Cylinder Head
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11115-36030 |
Gasket, Cylinder Head
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11115A — Pin, Ring | ||||
| 90253-12002 |
Pin, Ring
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90341-27006 note |
Plug, W/Head Straight Screw, NO.1
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90341-24011 |
Plug, W/Head Straight Screw, NO.2
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90430-27005 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90430-20004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11117N — Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90430-24246 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-28010 note |
Bush, Intake Valve Guide
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11122-28010 note |
Bush, Intake Valve Guide
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11123-28010 note |
Bush, Intake Valve Guide
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11123-28010 note |
Bush, Intake Valve Guide
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-0H020 note |
Seat, Intake Valve
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11131-28021 note |
Seat, Intake Valve
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11131-31040 note |
Seat, Intake Valve
2006-01 → 2006-11
ended
|
2GRFE GSV40 JPP | — | |
| 11131-31050 note |
Seat, Intake Valve
2006-11 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11132-0H020 note |
Seat, Intake Valve
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11132-0H020 note |
Seat, Intake Valve
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11132-28021 note |
Seat, Intake Valve
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11132-28021 note |
Seat, Intake Valve
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11132-31040 note |
Seat, Intake Valve
2006-01 → 2006-10
ended
|
2GRFE GSV40 JPP | — | |
| 11132-31050 note |
Seat, Intake Valve
2006-11 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11131-31050 note |
Seat, Intake Valve
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11131-36020 note |
Seat, Intake Valve
2009-01 → 2011-05
ended
|
2ARFE ASV40 JPP | — | |
| 11131-36030 note |
Seat, Intake Valve
2011-05 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11132-31050 note |
Seat, Intake Valve
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11132-36020 note |
Seat, Intake Valve
2009-01 → 2011-05
ended
|
2ARFE ASV40 JPP | — | |
| 11132-36030 note |
Seat, Intake Valve
2011-05 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-0H020 note |
Seat, Exhaust Valve
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11135-28040 note |
Seat, Exhaust Valve
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11135-31060 note |
Seat, Exhaust Valve
2006-01 → 2006-11
ended
|
2GRFE GSV40 JPP | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2006-11 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11136-0H020 note |
Seat, Exhaust Valve
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11136-0H020 note |
Seat, Exhaust Valve
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11136-28040 note |
Seat, Exhaust Valve
2006-01 → 2008-01
ended
|
2AZFE ACV40 JPP | — | |
| 11136-28040 note |
Seat, Exhaust Valve
2008-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11136-31060 note |
Seat, Exhaust Valve
2006-01 → 2006-10
ended
|
2GRFE GSV40 JPP | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2006-11 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11135-36010 note |
Seat, Exhaust Valve
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11159H — Gasket, Camshaft Bearing Cap Oil Hole | ||||
| 11159-36010 note |
Gasket, Camshaft Bearing Cap Oil Hole
2009-01 → 2010-07
ended
|
2ARFE ASV40 JPP | — | |
| 11159-36011 note |
Gasket, Camshaft Bearing Cap Oil Hole
2010-07 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90430-10024 note |
Gasket, Camshaft Bearing Cap Oil Hole
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11193 — Gasket, Spark Plug Tube | ||||
| 11193-70010 |
Gasket, Spark Plug Tube
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11193-36010 |
Gasket, Spark Plug Tube
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11193-70010 |
Gasket, Spark Plug Tube
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0H050 note |
Cover Sub-assy, Cylinder Head
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11201-28031 note |
Cover Sub-assy, Cylinder Head
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11201-36010 |
Cover Sub-assy, Cylinder Head
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0H010 note |
Gasket, Cylinder Head Cover
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11213-28021 note |
Gasket, Cylinder Head Cover
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 11213-36020 |
Gasket, Cylinder Head Cover
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0H030 note |
Cap Sub-assy, Oil Filler
2006-01 → 2006-02
ended
|
2AZFE ACV40 JPP | — | |
| 12180-0H031 note |
Cap Sub-assy, Oil Filler
2006-02 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12180-28021 |
Cap Sub-assy, Oil Filler
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12180-28031 note |
Cap Sub-assy, Oil Filler
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12180-28021 note |
Cap Sub-assy, Oil Filler
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12180-31010 |
Cap Sub-assy, Oil Filler
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2009-03 → 2011-08
ended
|
2ARFE ASV40 JPP XLE | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90430-37004 note |
Gasket(FOR OIL FILLER CAP)
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 90430-37004 note |
Gasket(FOR OIL FILLER CAP)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-0H010 note |
Hanger, Engine, NO.1
2008-05 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12281-28010 note |
Hanger, Engine, NO.1
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12281-36020 |
Hanger, Engine, NO.1
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-0H010 note |
Hanger, Engine, NO.2
2008-05 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12282-28010 note |
Hanger, Engine, NO.2
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 12282-36020 |
Hanger, Engine, NO.2
2009-01 → 2010-09
ended
|
2ARFE ASV40 JPP | — | |
| 12282-36021 |
Hanger, Engine, NO.2
2010-09 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 12601B — Cover Sub-assy, Engine, NO.1 | ||||
| 12601-28150 |
Cover Sub-assy, Engine, NO.1
2006-01 → 2009-01
ended
|
2AZFE ACV40 JPP | — | |
| 12601-36010 note |
Cover Sub-assy, Engine, NO.1
2009-01 → 2009-11
ended
|
2ARFE ASV40 JPP | — | |
| 12601-36070 note |
Cover Sub-assy, Engine, NO.1
2009-11 → 2011-04
ended
|
2ARFE ASV40 JPP | — | |
| 12601-36110 |
Cover Sub-assy, Engine, NO.1
2011-05 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2006-01 → 2009-01
ended
|
2GRFE GSV40 JPP | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-01 → 2011-08
ended
|
2GRFE GSV40 JPP | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
| 15678A — Filter, Oil Control Valve | ||||
| 15678-37010 |
Filter, Oil Control Valve
2009-01 → 2011-08
ended
|
2ARFE ASV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
