Toyota Camry (JPP)

2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

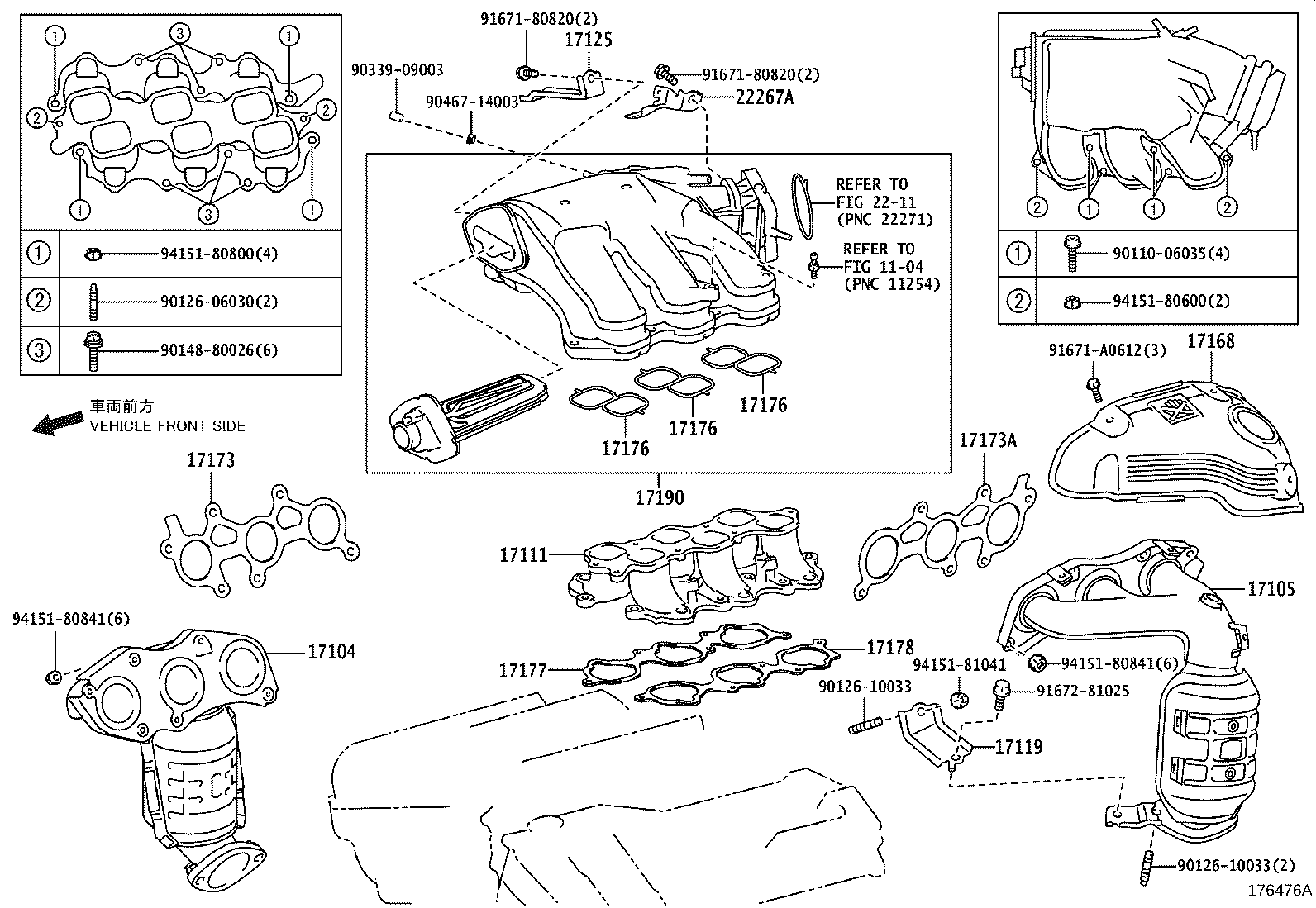

Exploded illustration 176476A 9011006035 — not listed in this catalogue 9012606030 — not listed in this catalogue 9014880026 — not listed in this catalogue 9012610033 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180841 — not listed in this catalogue 9415180841 — not listed in this catalogue 9167180820 — not listed in this catalogue 9033909003 — not listed in this catalogue 9167180820 — not listed in this catalogue 91671A0612 — not listed in this catalogue 9415180800 — not listed in this catalogue 17104 — MANIFOLD SUB-ASSY, EXHAUST, RH (5 parts) 17105 — MANIFOLD SUB-ASSY, EXHAUST, LH (2 parts) 17111 — MANIFOLD, INTAKE (6 parts) 17125 — STAY, SURGE TANK, NO.1 (2 parts) 17190 — TANK ASSY, INTAKE AIR SURGE (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (6 parts) 17173A — GASKET, EXHAUST MANIFOLD TO HEAD, LH (2 parts) 17176 — GASKET, AIR SURGE TANK TO INTAKE MANIFOLD (2 parts) 17176 — GASKET, AIR SURGE TANK TO INTAKE MANIFOLD (2 parts) 17176 — GASKET, AIR SURGE TANK TO INTAKE MANIFOLD (2 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (5 parts) 17178 — GASKET, INTAKE MANIFOLD TO HEAD, NO.2 (2 parts) 22267A — BRACKET, THROTTLE BODY (2 parts) 1104 — not listed in this catalogue 2211 — not listed in this catalogue 9167281025 — not listed in this catalogue 9415181041 — not listed in this catalogue 9012610033 — not listed in this catalogue 17119 — STAY, MANIFOLD, NO.2 (2 parts) 9046714003 — not listed in this catalogue
176476A · 15 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
17104 — Manifold Sub-assy, Exhaust, RH
17140-0P041 note Manifold Sub-assy, Exhaust, RH
2007-07 → 2009-01 ended
2GRFE GSV40 JPP —
17140-31160 note Manifold Sub-assy, Exhaust, RH
2006-01 → 2007-07 ended
2GRFE GSV40 JPP —
17140-31161 note Manifold Sub-assy, Exhaust, RH
2007-07 → 2009-01 ended
2GRFE GSV40 JPP —
17140-0P041 note Manifold Sub-assy, Exhaust, RH
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17140-31161 note Manifold Sub-assy, Exhaust, RH
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17105 — Manifold Sub-assy, Exhaust, LH
17150-31160 note Manifold Sub-assy, Exhaust, LH
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17150-31160 note Manifold Sub-assy, Exhaust, LH
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17111 — Manifold, Intake
17111-31141 Manifold, Intake
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17120-28140 note Manifold, Intake
2006-01 → 2009-01 ended
2AZFE ACV40 JPP —
17120-28160 note Manifold, Intake
2006-01 → 2009-01 ended
2AZFE ACV40 JPP 5FC —
17111-31141 Manifold, Intake
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17120-36010 Manifold, Intake
2009-01 → 2011-08 ended
2ARFE ASV40 JPP —
17120-36040 note Manifold, Intake
2010-01 → 2011-08 ended
2ARFE ASV40 JPP —
17119 — Stay, Manifold, NO.2
17119-31020 Stay, Manifold, NO.2
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17119-31020 Stay, Manifold, NO.2
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17125 — Stay, Surge Tank, NO.1
17125-31040 Stay, Surge Tank, NO.1
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17125-31040 Stay, Surge Tank, NO.1
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-28030 note Insulator, Exhaust Manifold Heat, NO.2
2006-01 → 2009-01 ended
2AZFE ACV40 JPP —
17168-31010 Insulator, Exhaust Manifold Heat, NO.2
2006-01 → 2007-02 ended
2GRFE GSV40 JPP —
17168-31011 Insulator, Exhaust Manifold Heat, NO.2
2007-03 → 2009-01 ended
2GRFE GSV40 JPP —
17168-31011 Insulator, Exhaust Manifold Heat, NO.2
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17168-36010 Insulator, Exhaust Manifold Heat, NO.2
2009-01 → 2011-08 ended
2ARFE ASV40 JPP —
17173 — Gasket, Exhaust Manifold TO Head
17173-0H020 note Gasket, Exhaust Manifold TO Head
2006-01 → 2009-01 ended
2AZFE ACV40 JPP —
17173-28010 note Gasket, Exhaust Manifold TO Head
2006-01 → 2009-01 ended
2AZFE ACV40 JPP —
17173-28010 note Gasket, Exhaust Manifold TO Head
2006-01 → 2009-01 ended
2AZFE ACV40 JPP 5FC —
17173-31020 Gasket, Exhaust Manifold TO Head
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17173-31020 Gasket, Exhaust Manifold TO Head
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17173-36020 Gasket, Exhaust Manifold TO Head
2009-01 → 2011-08 ended
2ARFE ASV40 JPP —
17173A — Gasket, Exhaust Manifold TO Head, LH
17173-31020 Gasket, Exhaust Manifold TO Head, LH
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17173-31020 Gasket, Exhaust Manifold TO Head, LH
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17176 — Gasket, Air Surge Tank TO Intake Manifold
17176-31040 Gasket, Air Surge Tank TO Intake Manifold
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17176-31040 Gasket, Air Surge Tank TO Intake Manifold
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-28010 note Gasket, Intake Manifold TO Head, NO.1
2006-01 → 2009-01 ended
2AZFE ACV40 JPP —
17177-28040 note Gasket, Intake Manifold TO Head, NO.1
2006-01 → 2009-01 ended
2AZFE ACV40 JPP 5FC —
17177-31040 Gasket, Intake Manifold TO Head, NO.1
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17171-36010 Gasket, Intake Manifold TO Head, NO.1
2009-01 → 2011-08 ended
2ARFE ASV40 JPP —
17177-31040 Gasket, Intake Manifold TO Head, NO.1
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17178 — Gasket, Intake Manifold TO Head, NO.2
17178-31030 Gasket, Intake Manifold TO Head, NO.2
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17178-31030 Gasket, Intake Manifold TO Head, NO.2
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
17190 — Tank Assy, Intake Air Surge
17190-31081 Tank Assy, Intake Air Surge
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
17190-31081 Tank Assy, Intake Air Surge
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
22267A — Bracket, Throttle Body
22267-31030 Bracket, Throttle Body
2006-01 → 2009-01 ended
2GRFE GSV40 JPP —
22267-31030 Bracket, Throttle Body
2009-01 → 2011-08 ended
2GRFE GSV40 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
