Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

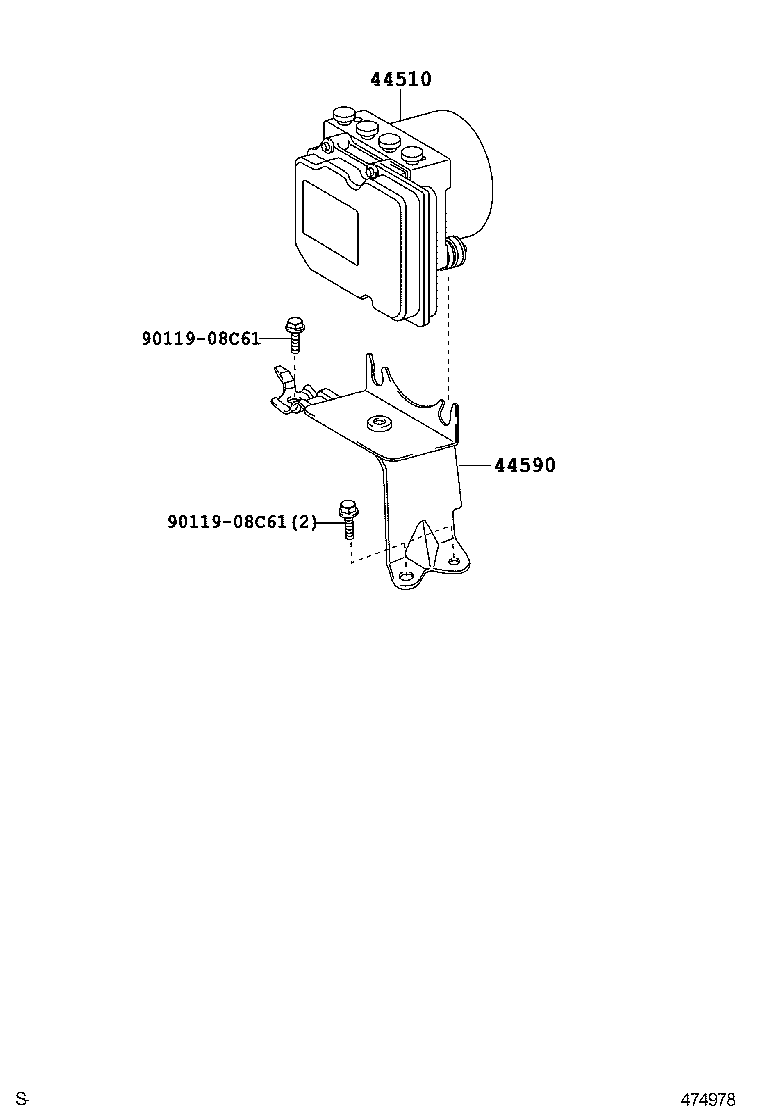

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-33160 note |
Actuator Assy, Brake
2006-01 → 2009-01
ended
|
ACV40,GSV40 JPP | — | |
| 44050-33240 |
Actuator Assy, Brake
2006-01 → 2009-01
ended
|
ACV40,GSV40 JPP | — | |
| 44050-33250 note |
Actuator Assy, Brake
2010-01 → 2011-08
ended
|
ASV40,GSV40 JPP | — | |
| 44050-33280 note |
Actuator Assy, Brake
2009-01 → 2010-01
ended
|
ASV40,GSV40 JPP | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-33100 |
Bracket Assy, Brake Actuator
2006-01 → 2009-01
ended
|
ACV40,GSV40 JPP | — | |
| 44590-33110 note |
Bracket Assy, Brake Actuator
2006-01 → 2009-01
ended
|
ACV40,GSV40 JPP | — | |
| 44590-33110 |
Bracket Assy, Brake Actuator
2009-01 → 2011-08
ended
|
ASV40,GSV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
