Toyota Camry (JPP)

2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

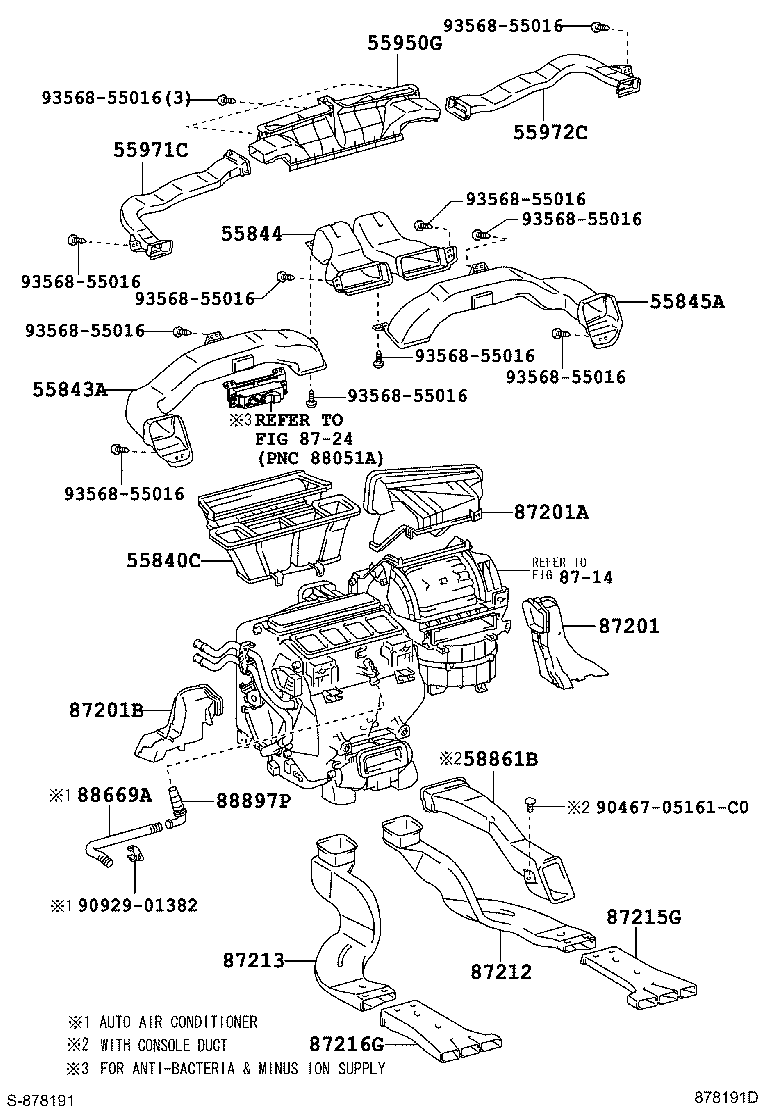

Exploded illustration 878191D 55971C — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (3 parts) 55972C — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (3 parts) 55950G — NOZZLE ASSY, DEFROSTER (2 parts) 88897P — ASPIRATOR (2 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (2 parts) 88669A — HOSE (FOR COOLER THERMISTOR) (2 parts) 55840C — DUCT ASSY, HEATER TO REGISTER, NO.6 (2 parts) 58861B — DUCT, CONSOLE BOX, NO.1 (2 parts) 87201A — DUCT SUB-ASSY, AIR (2 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (2 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (2 parts) 87213 — DUCT, AIR, REAR NO.2 (2 parts) 87212 — DUCT, AIR, REAR NO.1 (2 parts) 87215G — GUIDE, AIR DUCT, REAR RH (2 parts) 87216G — GUIDE, AIR DUCT, REAR LH (2 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (6 parts) 55845A — DUCT, HEATER TO REGISTER, NO.3 (3 parts) 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9092901382 — not listed in this catalogue 9046705161C0 — not listed in this catalogue 8714 — not listed in this catalogue 8724 — not listed in this catalogue
878191D · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
55840C — Duct Assy, Heater TO Register, NO.6
55840-33010 Duct Assy, Heater TO Register, NO.6
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
55840-33010 Duct Assy, Heater TO Register, NO.6
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
55843A — Duct, Heater TO Register, NO.1
55843-33130 Duct, Heater TO Register, NO.1
2006-01 → 2008-11 ended
ACV40,GSV40 JPP XLE —
55843-33131 Duct, Heater TO Register, NO.1
2008-12 → 2009-01 ended
ACV40,GSV40 JPP XLE —
55843-33140 Duct, Heater TO Register, NO.1
2006-01 → 2008-11 ended
ACV40,GSV40 JPP LE —
55843-33141 Duct, Heater TO Register, NO.1
2008-12 → 2009-01 ended
ACV40,GSV40 JPP LE —
55843-33131 Duct, Heater TO Register, NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP XLE —
55843-33141 Duct, Heater TO Register, NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP LE —
55844 — Duct, Heater TO Register, NO.2
55844-33140 Duct, Heater TO Register, NO.2
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
55844-33140 Duct, Heater TO Register, NO.2
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
55845A — Duct, Heater TO Register, NO.3
55845-33140 Duct, Heater TO Register, NO.3
2006-01 → 2008-11 ended
ACV40,GSV40 JPP —
55845-33141 Duct, Heater TO Register, NO.3
2008-12 → 2009-01 ended
ACV40,GSV40 JPP —
55845-33141 Duct, Heater TO Register, NO.3
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
55950G — Nozzle Assy, Defroster
55950-33090 Nozzle Assy, Defroster
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
55950-33090 Nozzle Assy, Defroster
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
55971C — Duct, Side Defroster Nozzle, NO.1
55971-33100 Duct, Side Defroster Nozzle, NO.1
2006-01 → 2008-11 ended
ACV40,GSV40 JPP —
55971-33101 Duct, Side Defroster Nozzle, NO.1
2008-12 → 2009-01 ended
ACV40,GSV40 JPP —
55971-33101 Duct, Side Defroster Nozzle, NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
55972C — Duct, Side Defroster Nozzle, NO.2
55972-33100 Duct, Side Defroster Nozzle, NO.2
2006-01 → 2008-11 ended
ACV40,GSV40 JPP —
55972-33101 Duct, Side Defroster Nozzle, NO.2
2008-12 → 2009-01 ended
ACV40,GSV40 JPP —
55972-33101 Duct, Side Defroster Nozzle, NO.2
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
58861B — Duct, Console Box, NO.1
58861-33030 Duct, Console Box, NO.1
2006-01 → 2009-01 ended
ACV40,GSV40 JPP XLE —
58861-33030 Duct, Console Box, NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP XLE —
87201 — Duct Sub-assy, Air, NO.1
87201-33290 Duct Sub-assy, Air, NO.1
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87201-33290 Duct Sub-assy, Air, NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87201A — Duct Sub-assy, Air
87201-33270 Duct Sub-assy, Air
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87201-33270 Duct Sub-assy, Air
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87201B — Duct Sub-assy, Air, NO.2
87201-33280 Duct Sub-assy, Air, NO.2
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87201-33280 Duct Sub-assy, Air, NO.2
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87212 — Duct, Air, Rear NO.1
87212-33040 Duct, Air, Rear NO.1
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87212-33040 Duct, Air, Rear NO.1
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87213 — Duct, Air, Rear NO.2
87213-33050 Duct, Air, Rear NO.2
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87213-33050 Duct, Air, Rear NO.2
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87215G — Guide, Air Duct, Rear RH
87215-33010 Guide, Air Duct, Rear RH
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87215-33010 Guide, Air Duct, Rear RH
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
87216G — Guide, Air Duct, Rear LH
87216-33010 Guide, Air Duct, Rear LH
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
87216-33010 Guide, Air Duct, Rear LH
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
88669A — Hose (FOR COOLER THERMISTOR)
88669-33090 Hose (FOR COOLER THERMISTOR)
2006-01 → 2009-01 ended
ACV40,GSV40 JPP XLE —
88669-33090 Hose (FOR COOLER THERMISTOR)
2009-01 → 2011-08 ended
ASV40,GSV40 JPP XLE —
88897P — Aspirator
88897-33030 Aspirator
2006-01 → 2009-01 ended
ACV40,GSV40 JPP —
88897-33030 Aspirator
2009-01 → 2011-08 ended
ASV40,GSV40 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
