Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

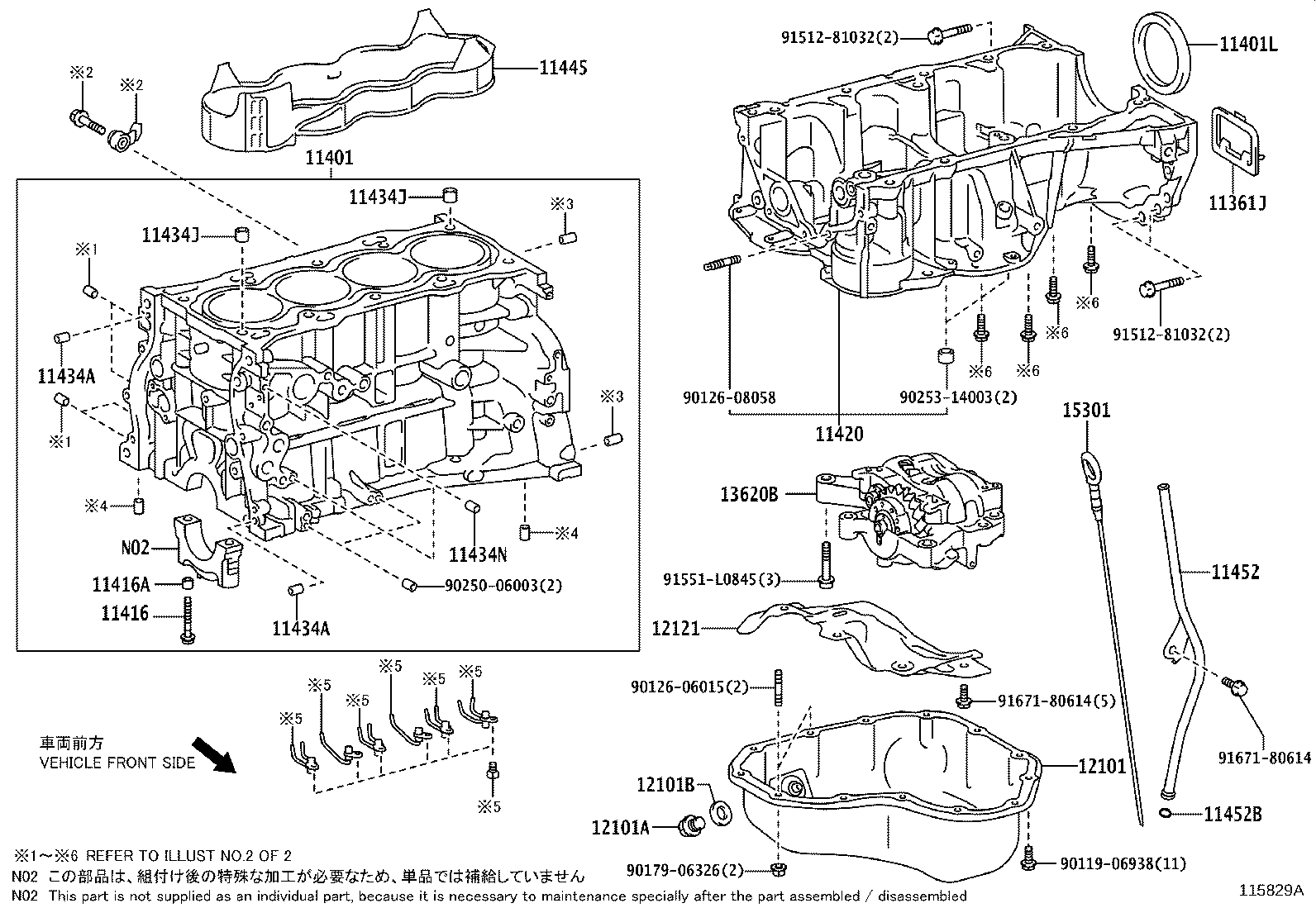

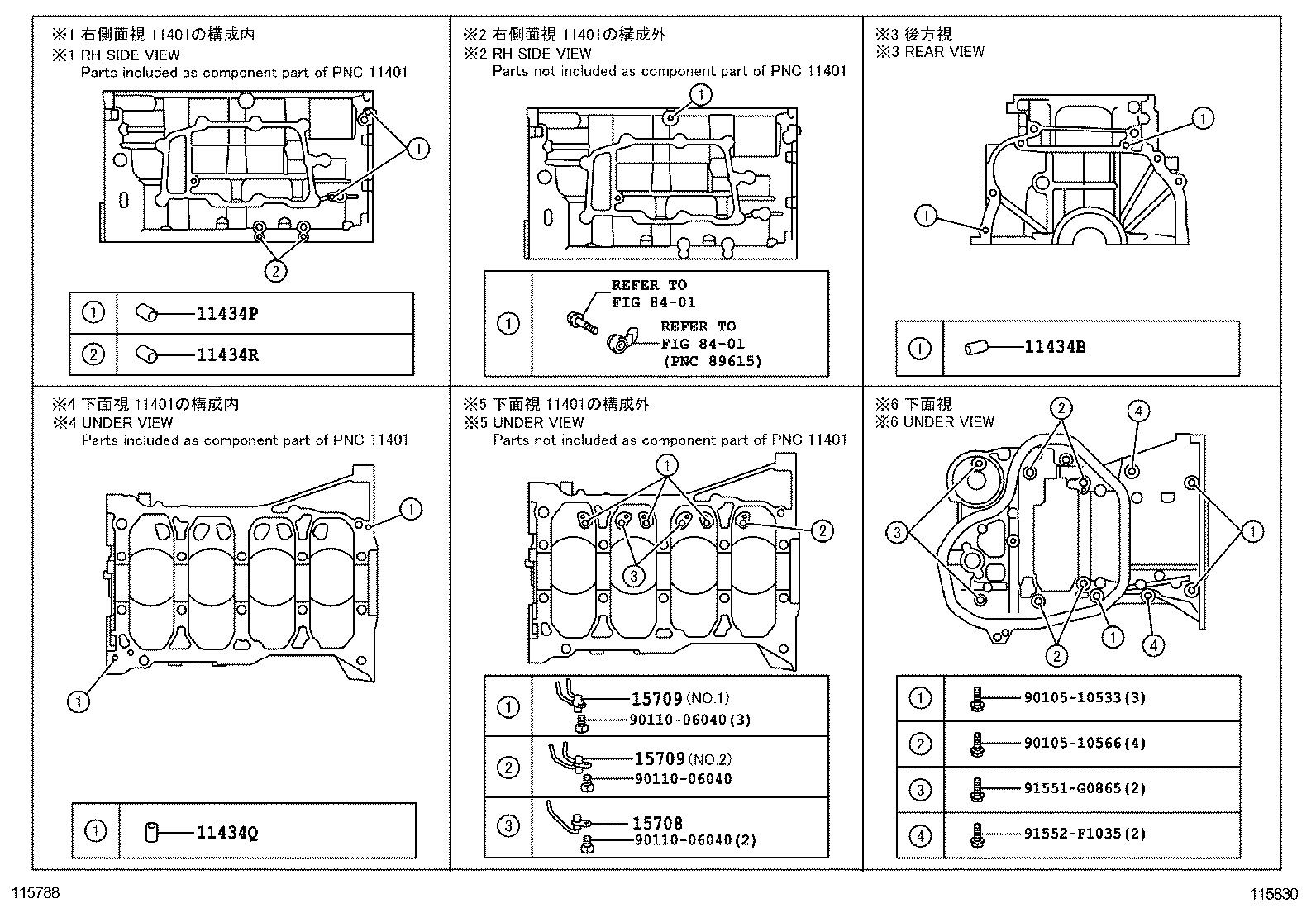

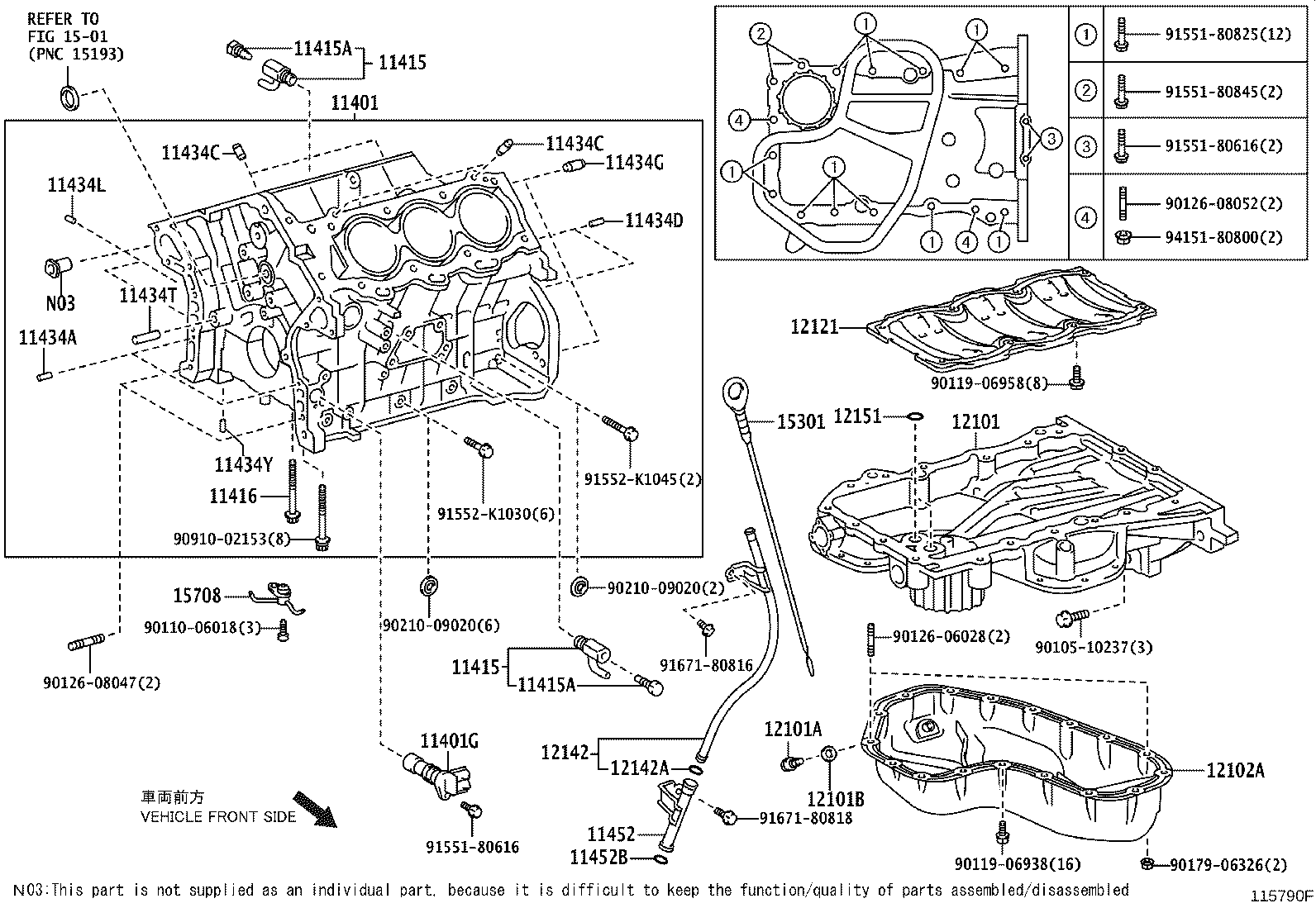

Cylinder Block
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432T | Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK) |
| 11432U | Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434L | Pin, Straight(FOR ENGINE MOUNTING) |
| 11434N | Pin, Straight(FOR WATER INLET HOUSING) |
| 11434P | Pin, Straight(FOR OIL PUMP SET) |
| 11434Q | Pin, Straight(FOR CRANKCASE) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11434T | Pin, Ring(FOR TIMING BELT IDLER BRACKET SET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12142 | Guide, Oil Level Gage, NO.2 |
| 12142A | Ring, O(FOR OIL LEVEL GAGE GUIDE, NO.2) |
| 12151 | Gasket, Oil Pan |
| 13620B | Balancer Assy, Engine |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15678B | Filter, Oil Control Valve |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 15709 | Nozzle Sub-assy, Oil, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
