Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

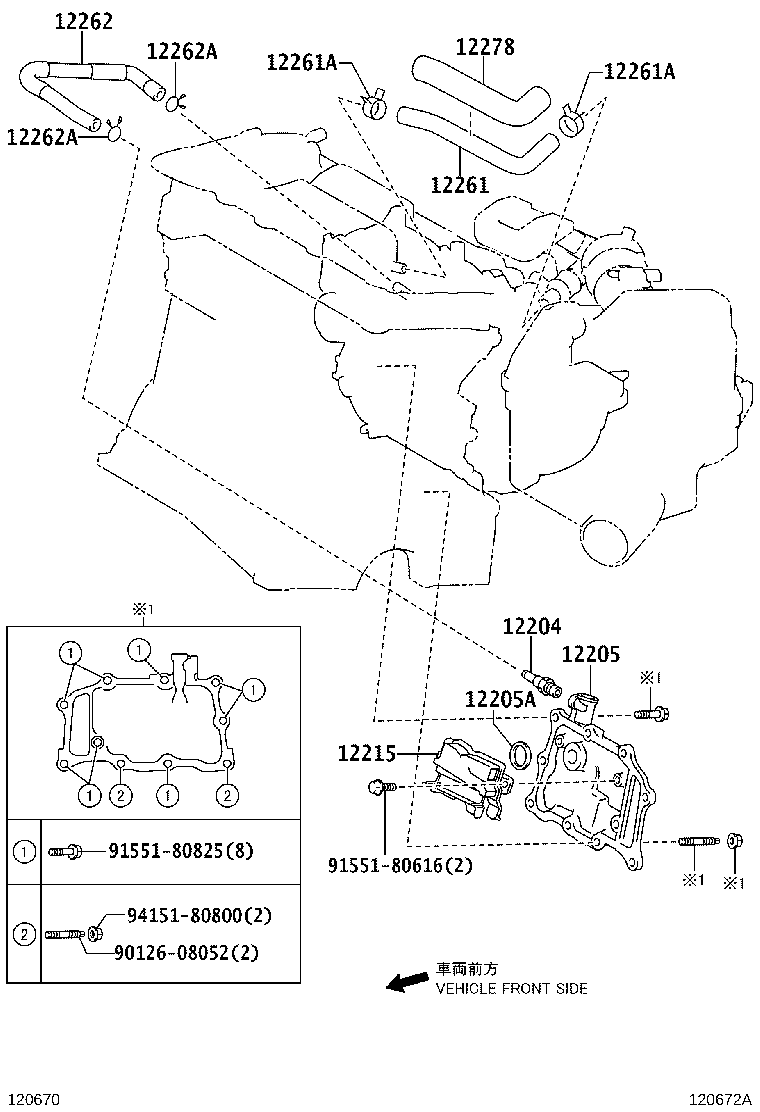

Ventilation Hose
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12205A | Ring, O(FOR VENTILATION CASE) |
| 12215 | Separator, Case |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12278 | Insulator, Ventilation Hose Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
