Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

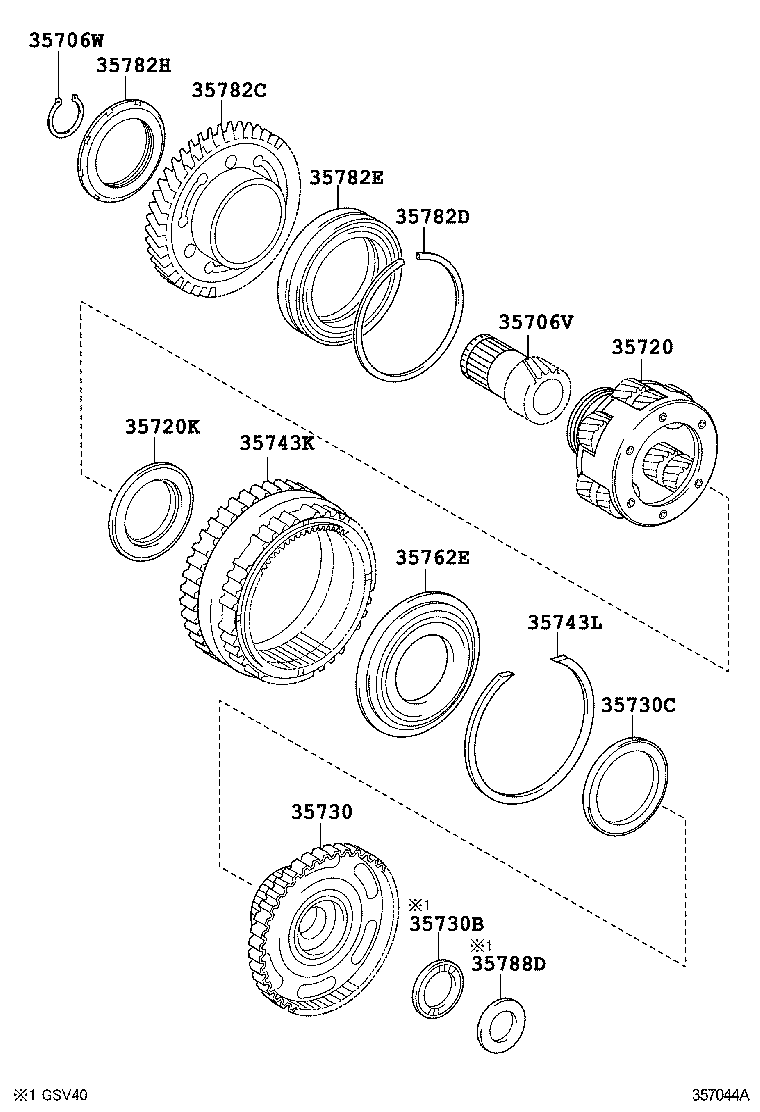

Planetary Gear, Reverse Piston & Counter Gear(ATM)
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 34061 | Hub Sub-assy, Overdreve Direct Clutch |
| 34244 | Ring, Underdrive Clutch Drum Oil Seal |
| 34346 | Ring, Underdrive Output Shaft Oil Seal |
| 35074B | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR FRONT) |
| 35074D | Bearing, Thrust (FOR REAR PLANETARY RING GEAR REAR) |
| 35706V | Gear Sub Assy, Planetary Sun |
| 35706W | Ring, Snap (FOR PLANETARY SUN GEAR) |
| 35720 | Gear Assy, Front Planetary |
| 35720C | Nut (FOR FRONT PLANETARY GEAR) |
| 35720D | Washer (FOR FRONT PLANETARY GEAR) |
| 35720K | Bearing, Thrust Needle Roller(FOR PLANETARY GEAR REAR) |
| 35730 | Gear Assy, Rear Planetary Sun |
| 35730A | Race, Thrust Bearing (FOR REAR PLANETARY SUN GEAR) |
| 35730B | Bearing, Thrust Needle Roller (FOR REAR PLANERARY SUN GEAR) |
| 35730C | Bearing, Thrust Needle(FOR REAR PLANETARY SUN GEAR, NO.2) |
| 35733 | Gear, Parking Lock |
| 35737A | Washer, Planetary Carrier Thrust, NO.1 |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35743 | Gear, Front Planetary Ring |
| 35743K | Gear, Planetary Ring |
| 35743L | Ring, Snap (FOR PLANETARY RING GEAR) |
| 35760 | Gear Assy, Rear Planetary |
| 35762E | Flange, Planetary Ring Gear |
| 35782C | Gear, Counter Drive |
| 35782D | Ring, Hole Snap(FOR COUNTER DRIVE GEAR) |
| 35782E | Bearing(FOR COUNTER DRIVE GEAR) |
| 35782H | Nut(FOR COUNTER DRIVE GEAR) |
| 35783D | Gear, Counter Driven |
| 35788D | Race, Thrust Bearing, NO.3 |
| 35797 | Race, 1 Way Clutch Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
