Toyota Camry (JPP)

2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

8 part groups · 3 illustrations

Illustrations

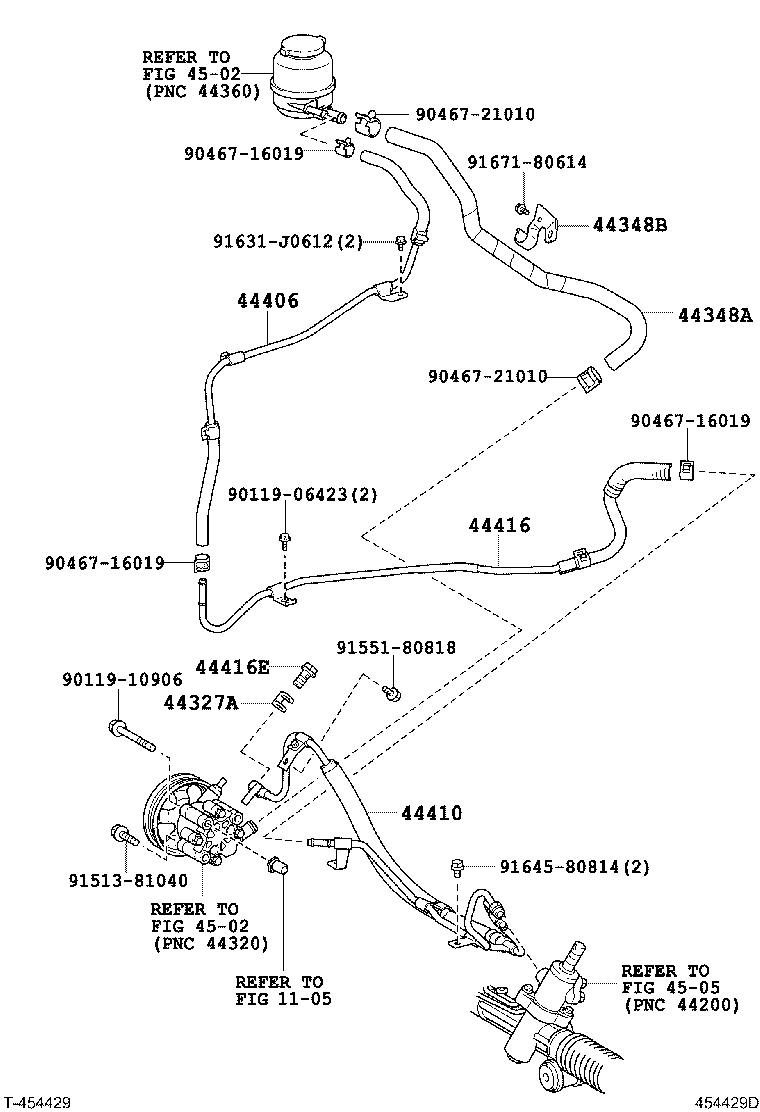

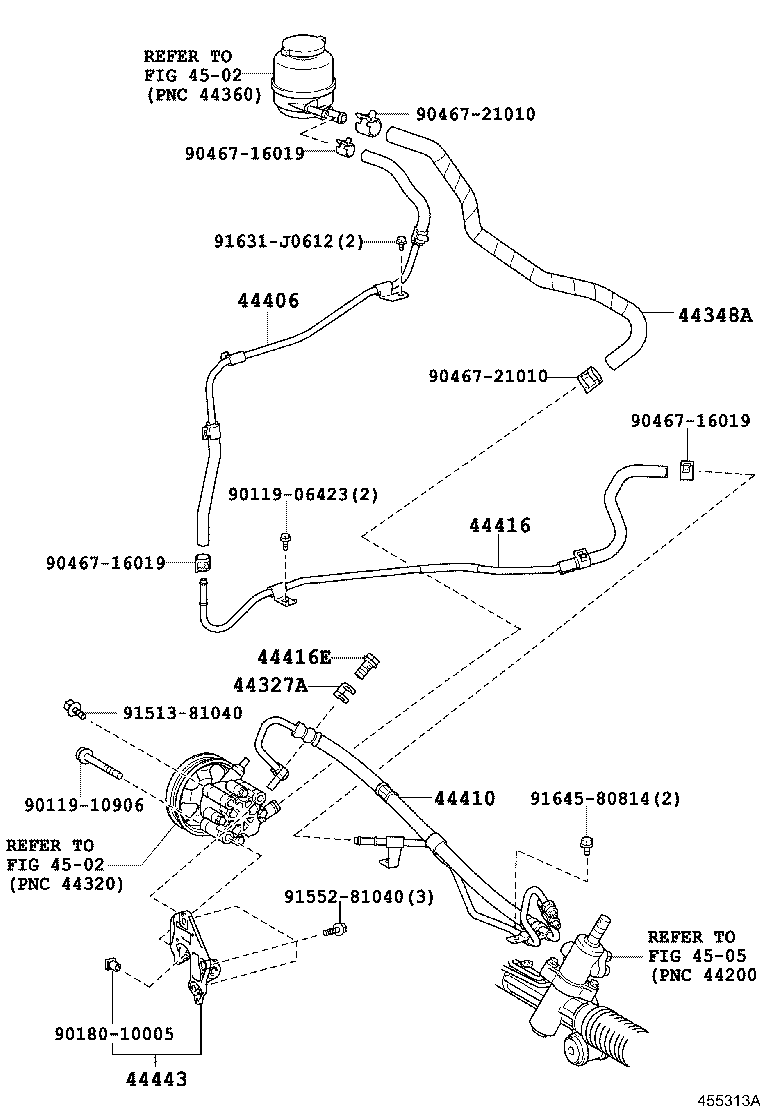

Figure 454428B 454428B 2006-01 → 2009-01 Figure 455313A 455313A 2009-01 → — Figure 454429D 454429D 2006-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
