Roof Headlining & Silencer Pad

20 part groups · 4 illustrations

Illustrations

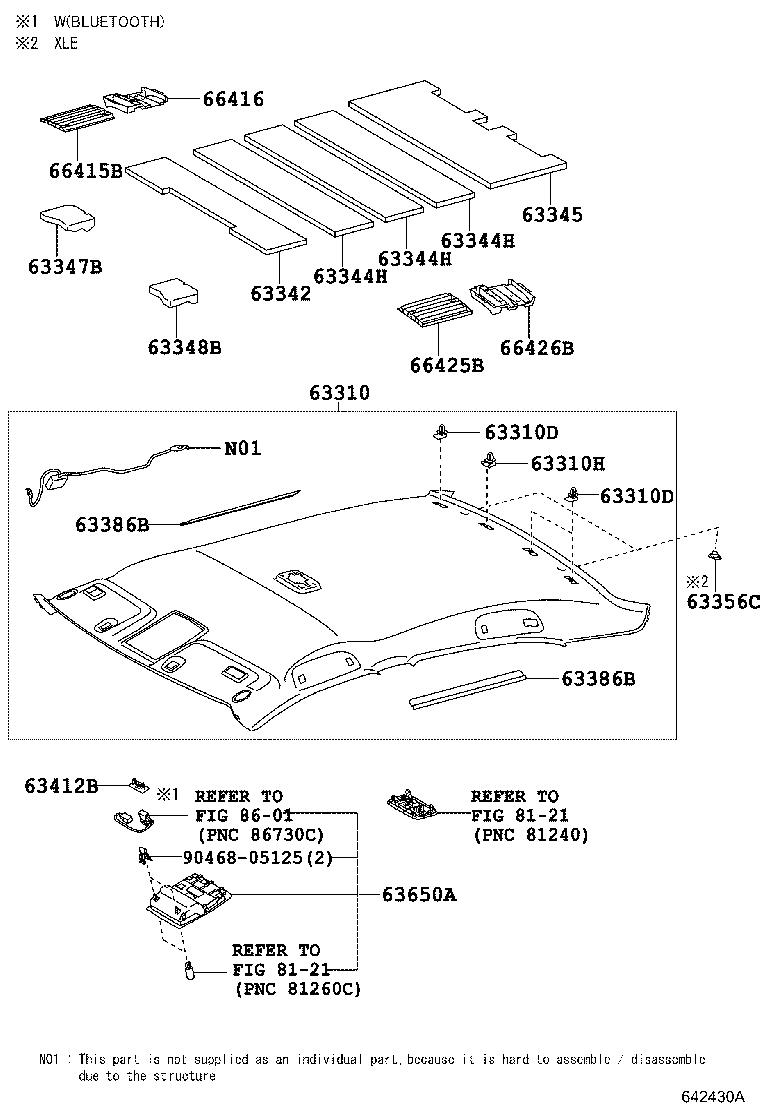

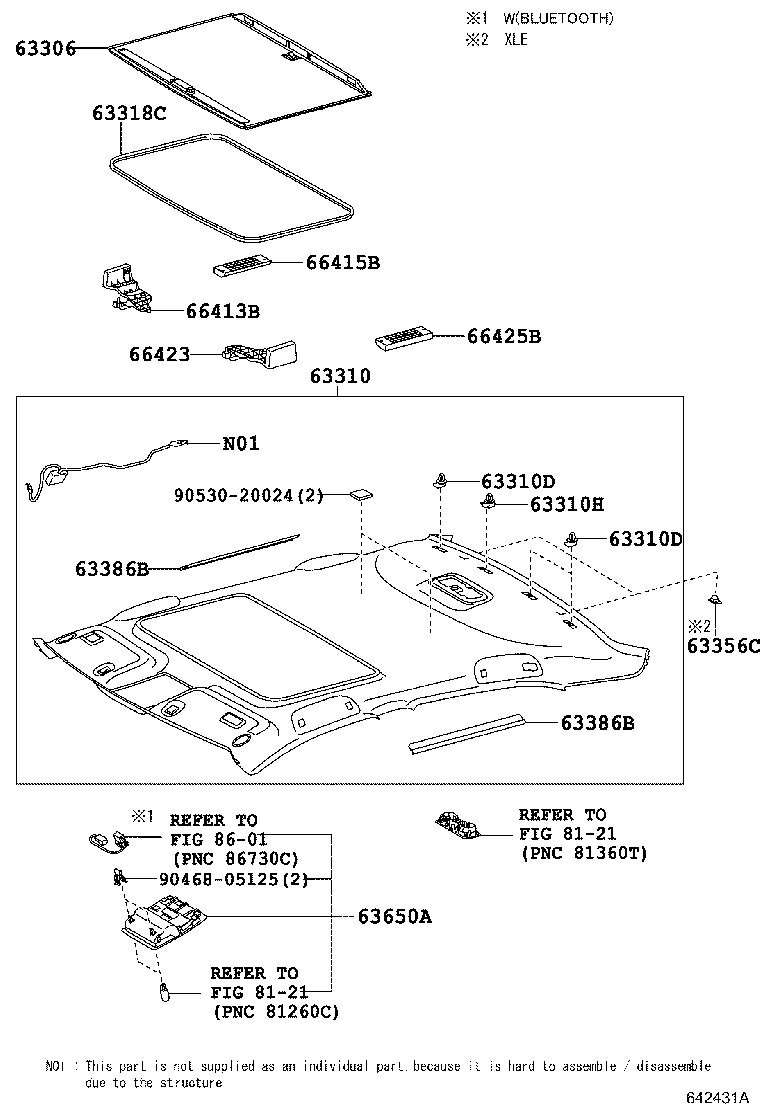

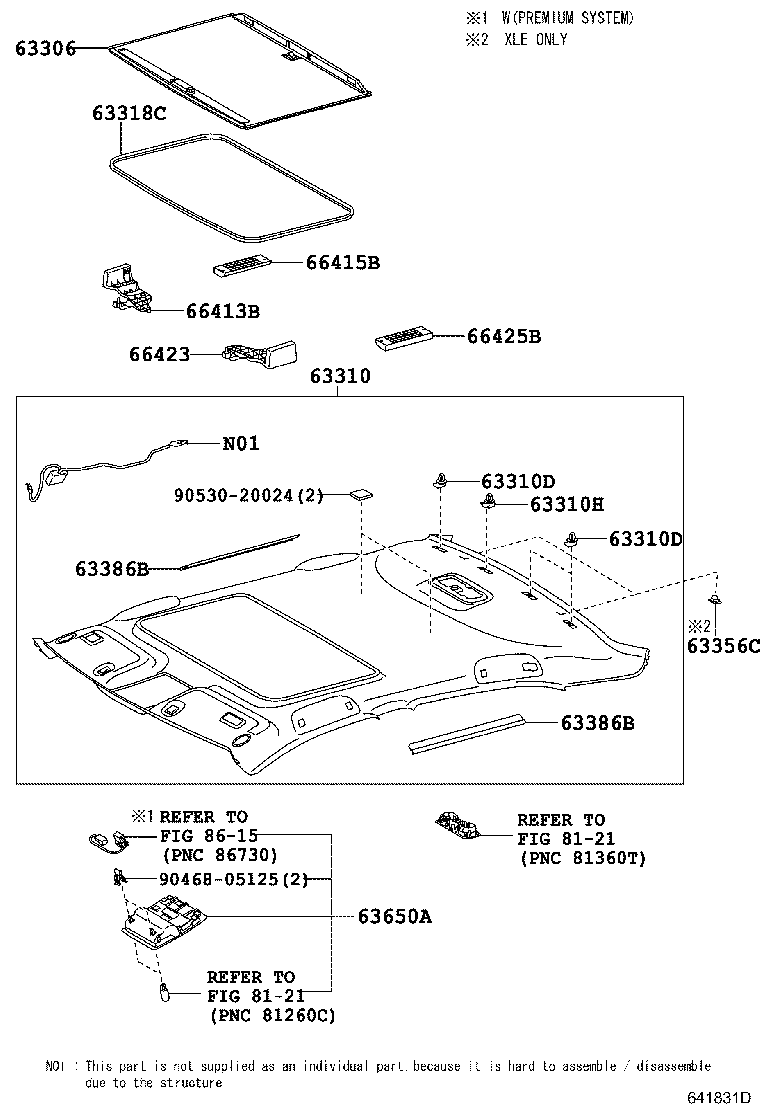

Figure 641830C 641830C 2006-01 → 2009-01 Figure 641831D 641831D 2006-01 → 2009-01 Figure 642430A 642430A 2009-01 → — Figure 642431A 642431A 2009-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63342 Pad, Roof Silencer, NO.2
63344H Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63347B Pad, Roof Side Rail Silencer, RH
63348B Pad, Roof Side Rail Silencer, LH
63356C Holder, Sunshade Trim
63386B Reinforcement, Roof Headlining Trim
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
66413B Spacer, Side Rail, Front RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
