Toyota Camry (JPP)

2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

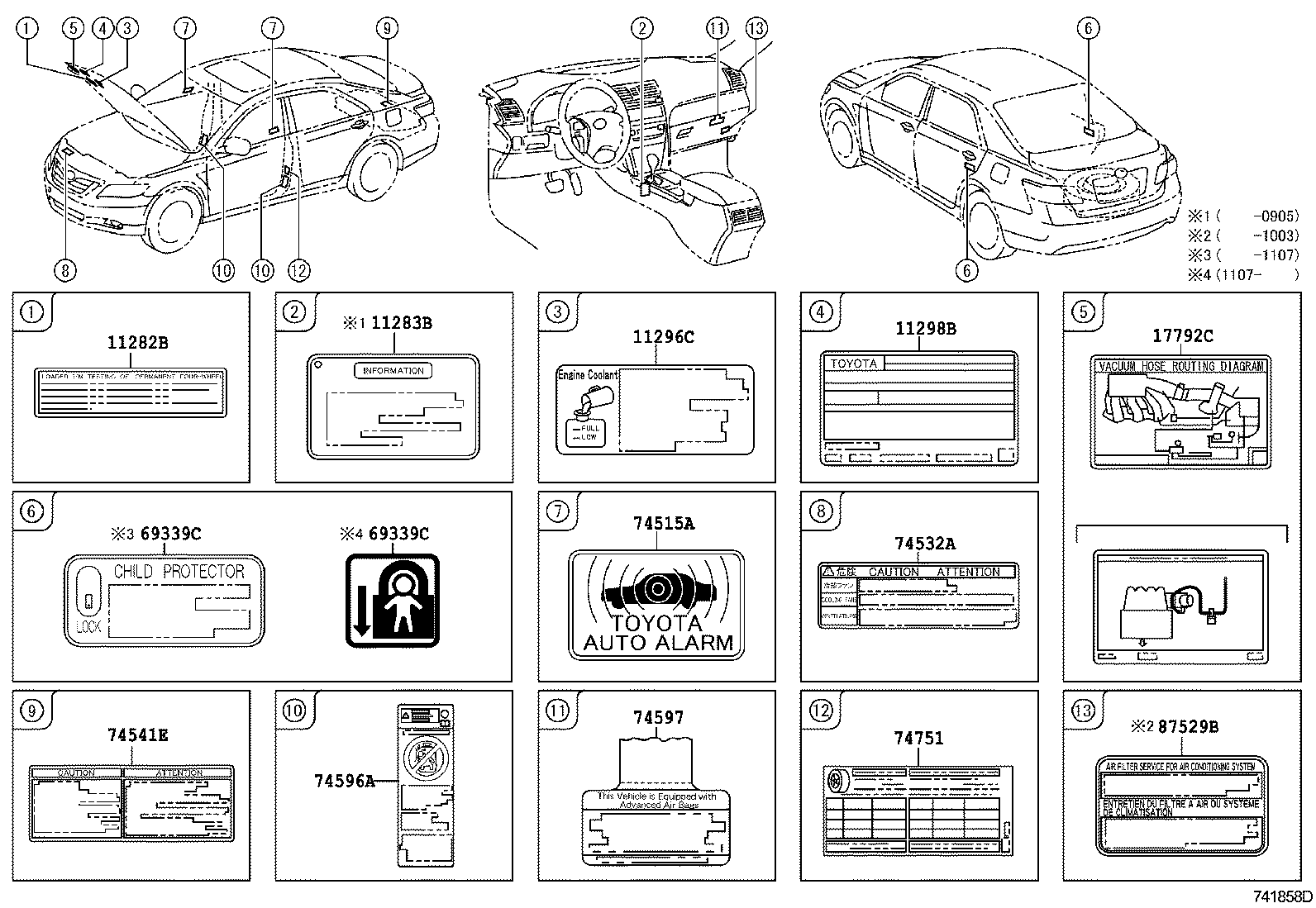

Figure 746121A 746121A 2006-01 → — Figure 741858D 741858D 2006-01 → — Figure 741859B 741859B 2006-01 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11283B Label, Leak Detection Pump Information
11289B Label, Spark Plug Notice
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74532A Plate, Caution
74541E Plate, Compact Spare Tire Caution
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
