Toyota Camry (JPP)
2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States
Supported model
Data version 2011-10

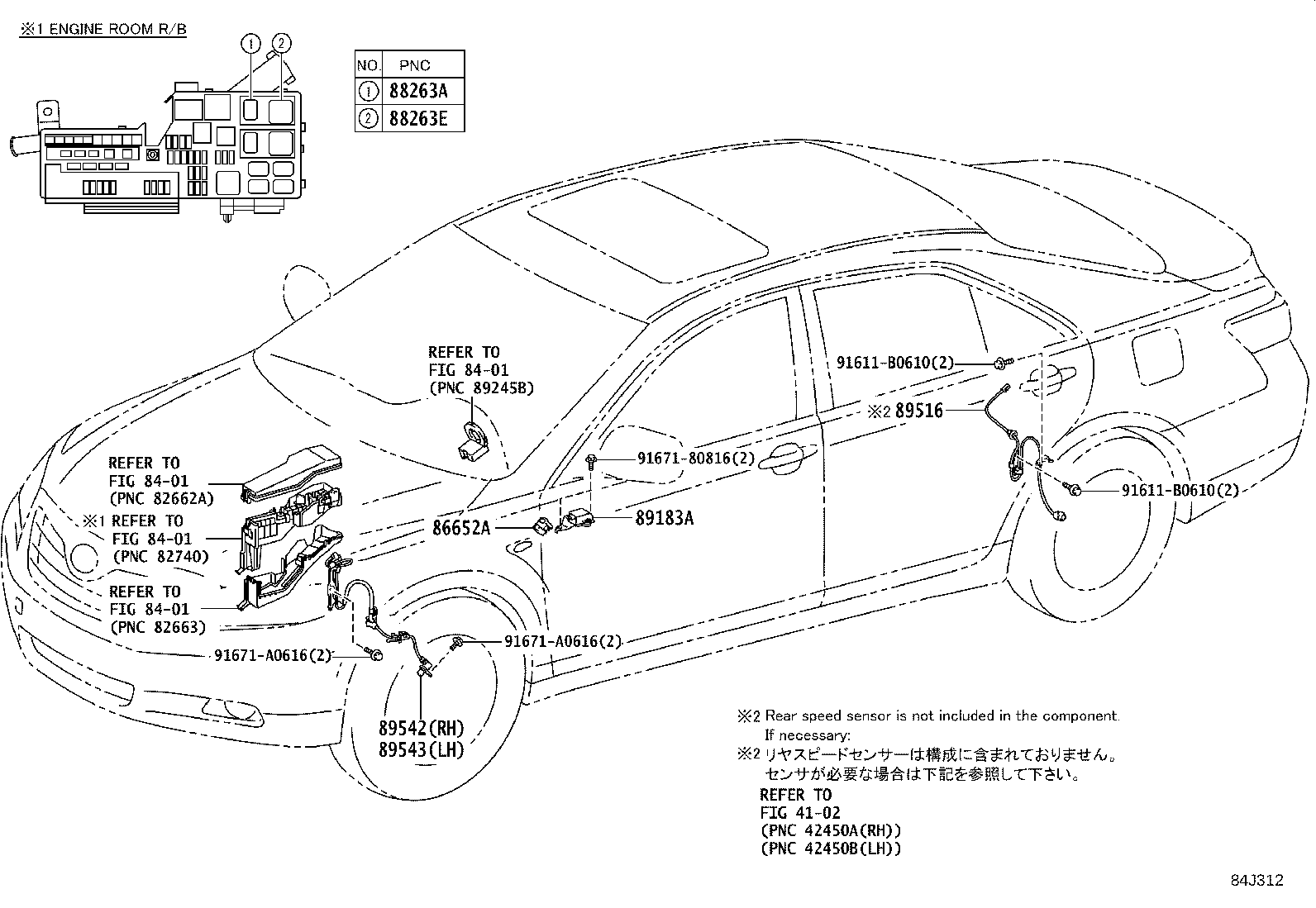

Abs & Vsc
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89516 | Wire, Skid Control Sensor |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
