Toyota Camry (JPP)

2006-01 → 2011-08 · chassis ACV40,ASV40,GSV40 · catalogue 284480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 3 illustrations

Illustrations

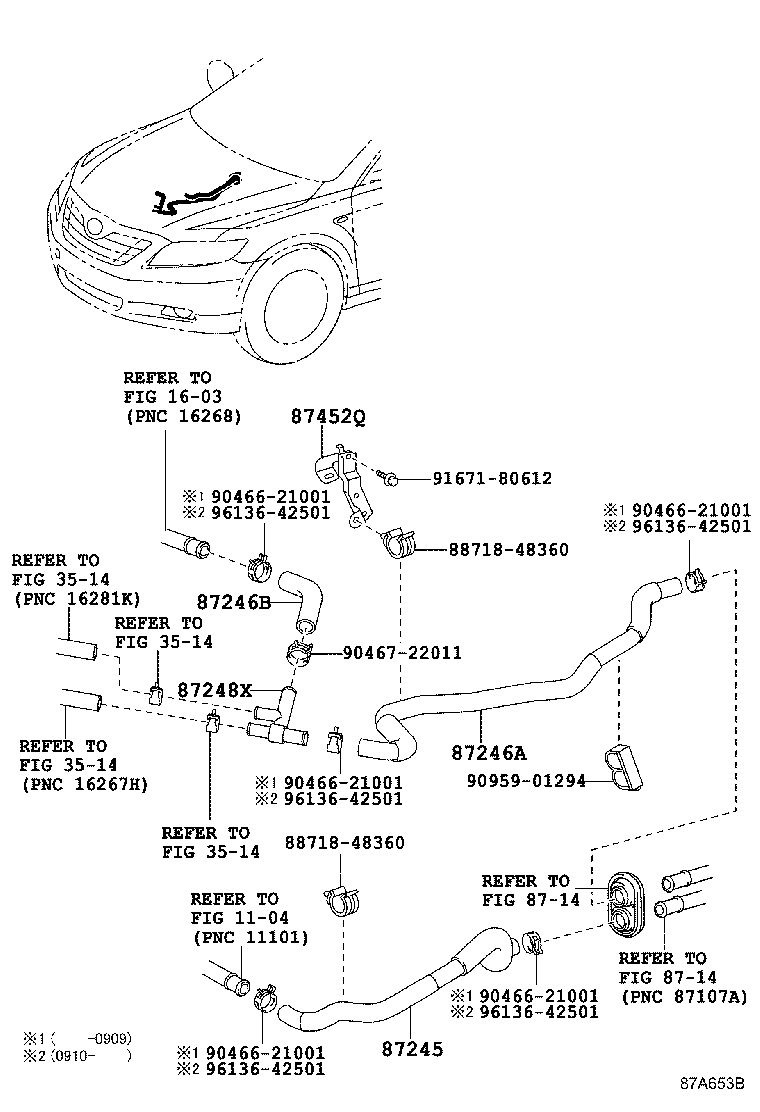

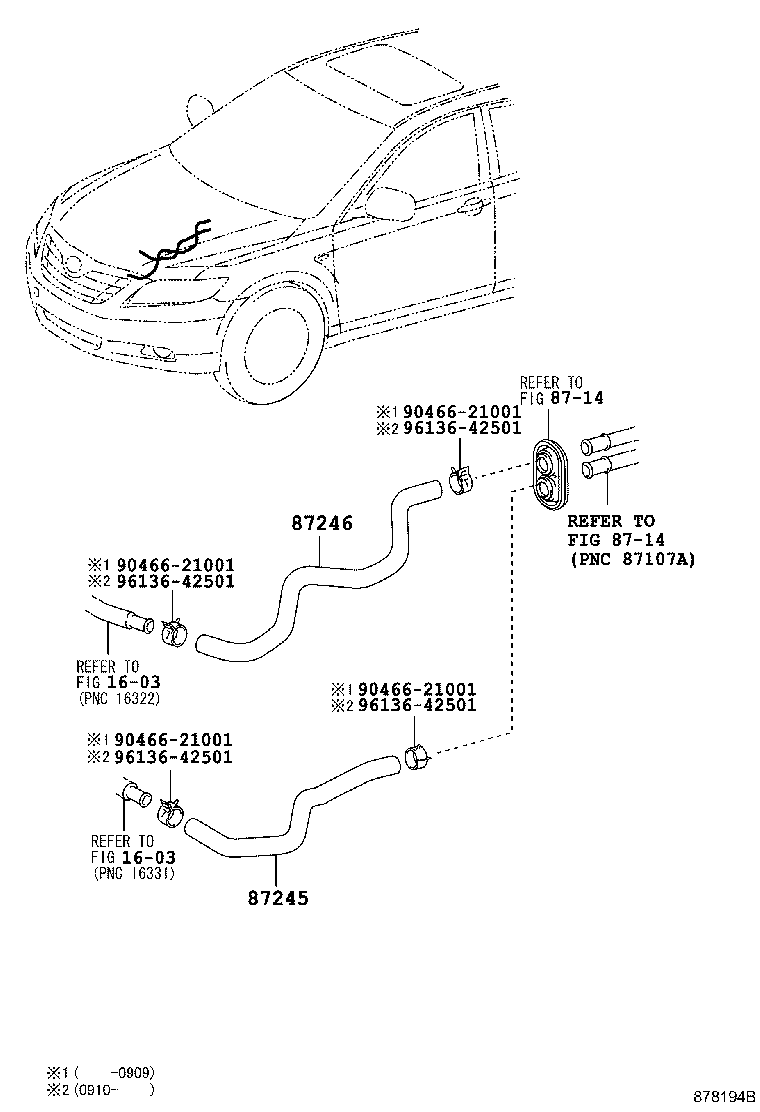

Figure 878195A 878195A 2006-01 → 2009-01 Figure 878194B 878194B 2006-01 → — Figure 87A653B 87A653B 2009-01 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248X Pipe, Heater Water
87452Q Bracket, Heater, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
