Heating & Air Conditioning - Cooler Piping

11 part groups · 4 illustrations

Illustrations

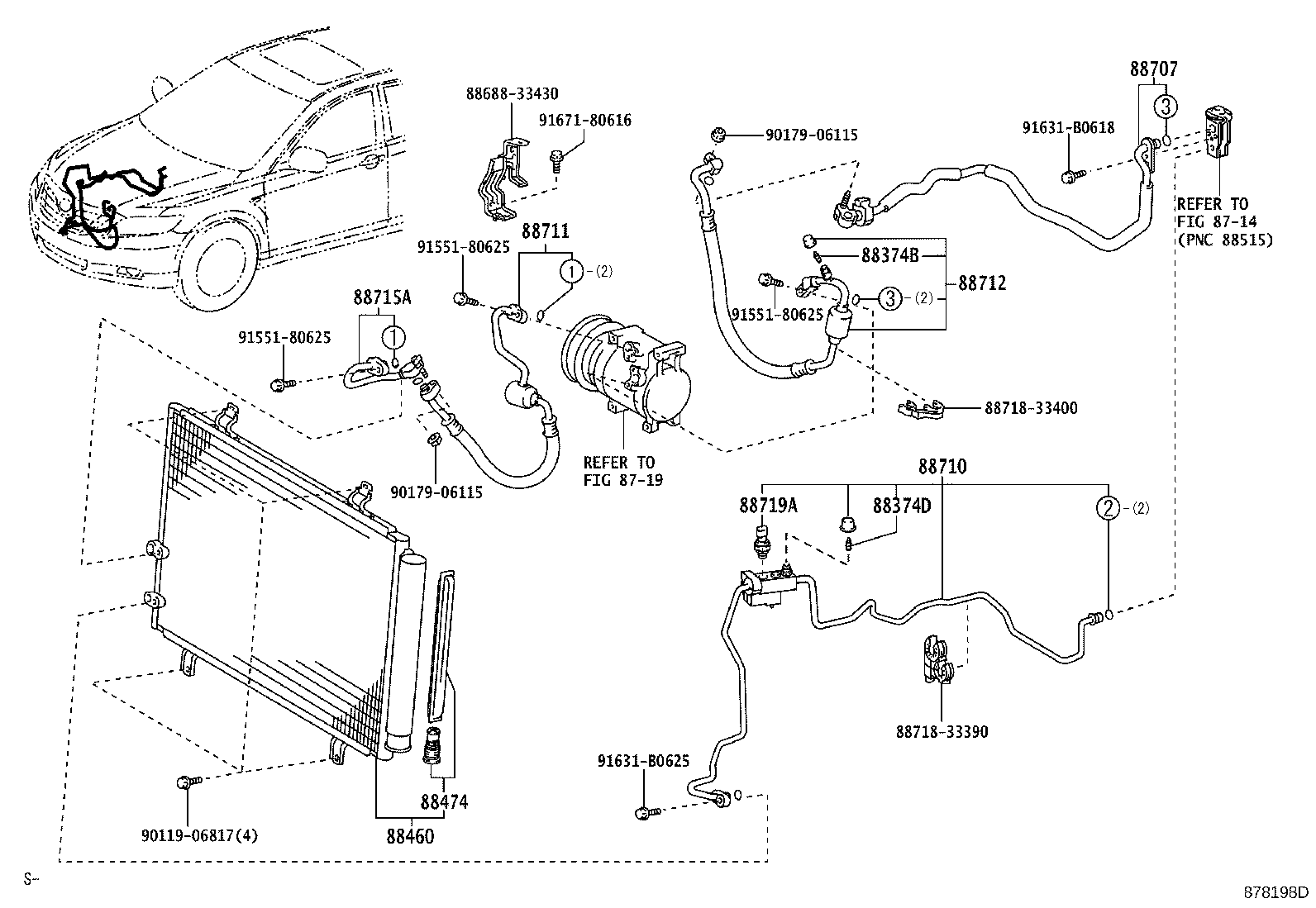

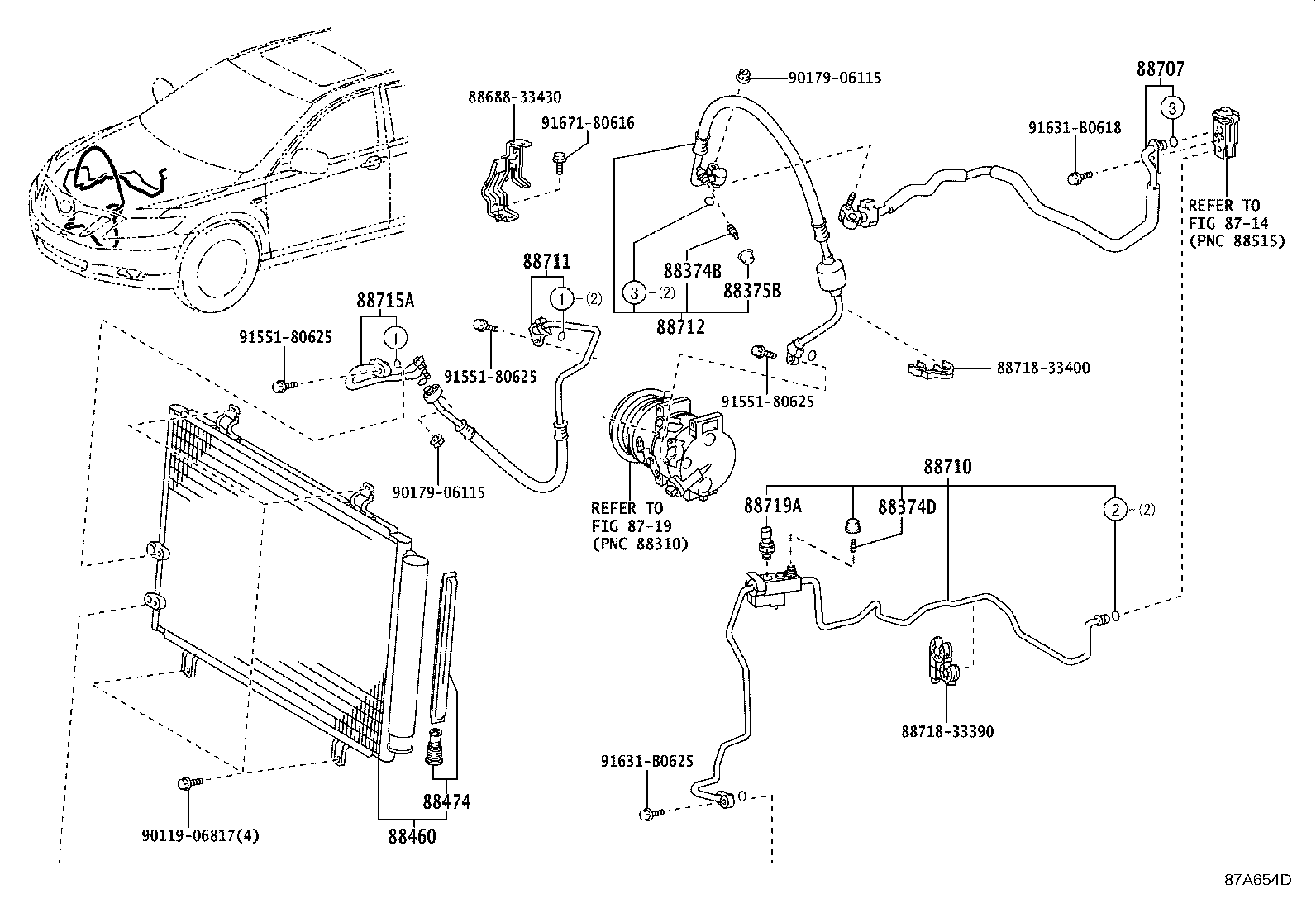

Figure 87A930C 87A930C 2006-01 → 2009-01 Figure 878198D 878198D 2006-01 → — Figure 87A654D 87A654D 2009-01 → — Figure 874585 874585 2006-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
