Toyota Camry (JPP)
2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States
Supported model
Data version 2018-08

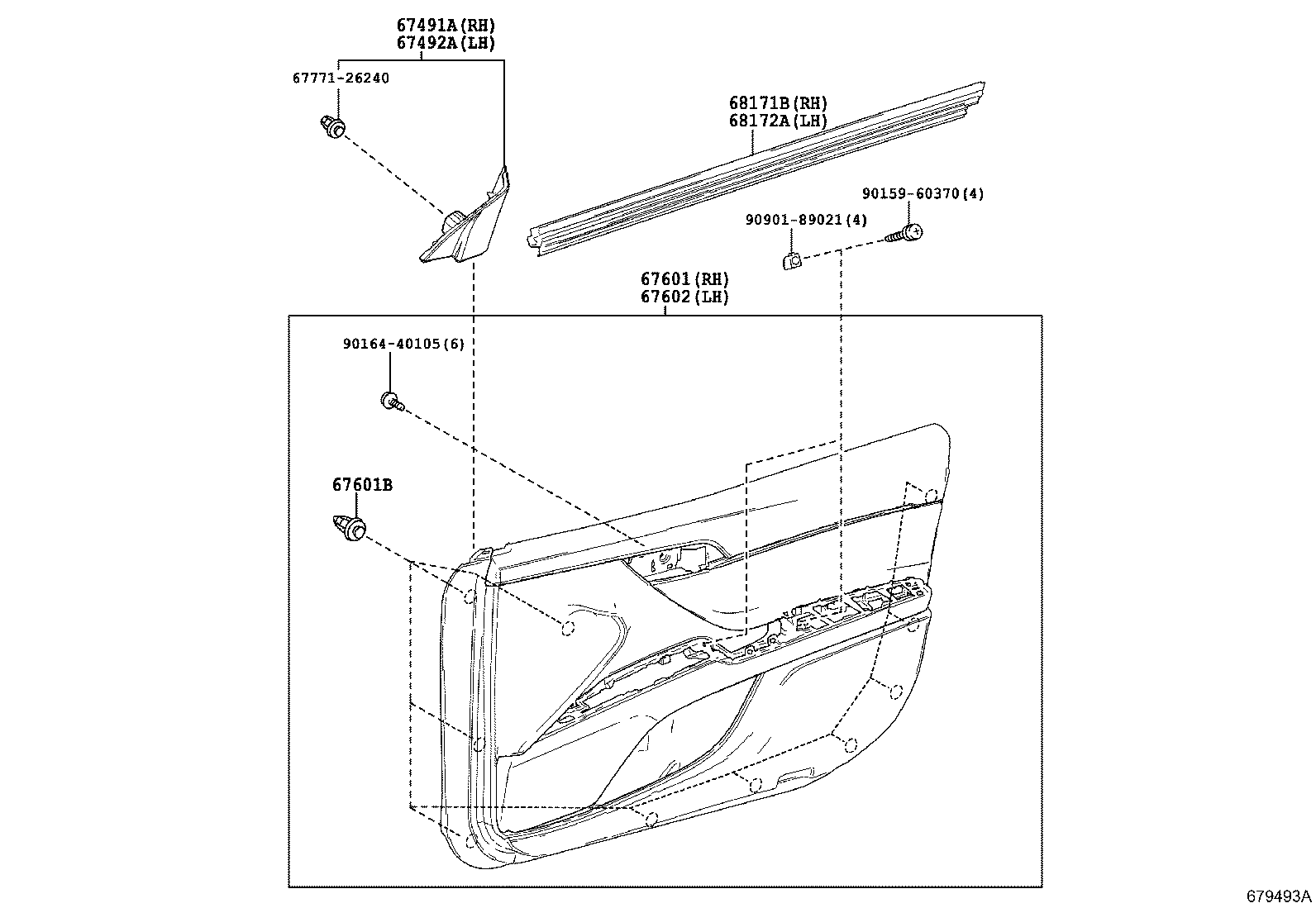

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-33130 |
Garnish, Front Door Lower Frame Bracket, RH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-33130 |
Garnish, Front Door Lower Frame Bracket, LH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-33F61-B4 note |
Board Sub-assy, Front Door Trim, RH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67610-33F61-C2 note |
Board Sub-assy, Front Door Trim, RH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67610-33F61-E2 note |
Board Sub-assy, Front Door Trim, RH
2017-03 → 2018-11
ended
|
AXVA70 LE | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-33F41-B4 note |
Board Sub-assy, Front Door Trim, LH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67620-33F41-C2 note |
Board Sub-assy, Front Door Trim, LH
2017-03 → 2018-11
ended
|
AXVA70 | — | |
| 67620-33F41-E2 note |
Board Sub-assy, Front Door Trim, LH
2017-03 → 2018-11
ended
|
AXVA70 LE | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-33110 |
Weatherstrip, Front Door Glass, Inner RH
2017-03 → 2018-08
ended
|
AXVA70 | — | |
| 68171-33111 |
Weatherstrip, Front Door Glass, Inner RH
2018-08 → 2018-11
ended
|
AXVA70 | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-33120 |
Weatherstrip, Front Door Glass, Inner LH
2017-03 → 2018-07
ended
|
AXVA70 | — | |
| 68172-33121 |
Weatherstrip, Front Door Glass, Inner LH
2018-08 → 2018-11
ended
|
AXVA70 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
