Toyota Camry (JPP)

2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

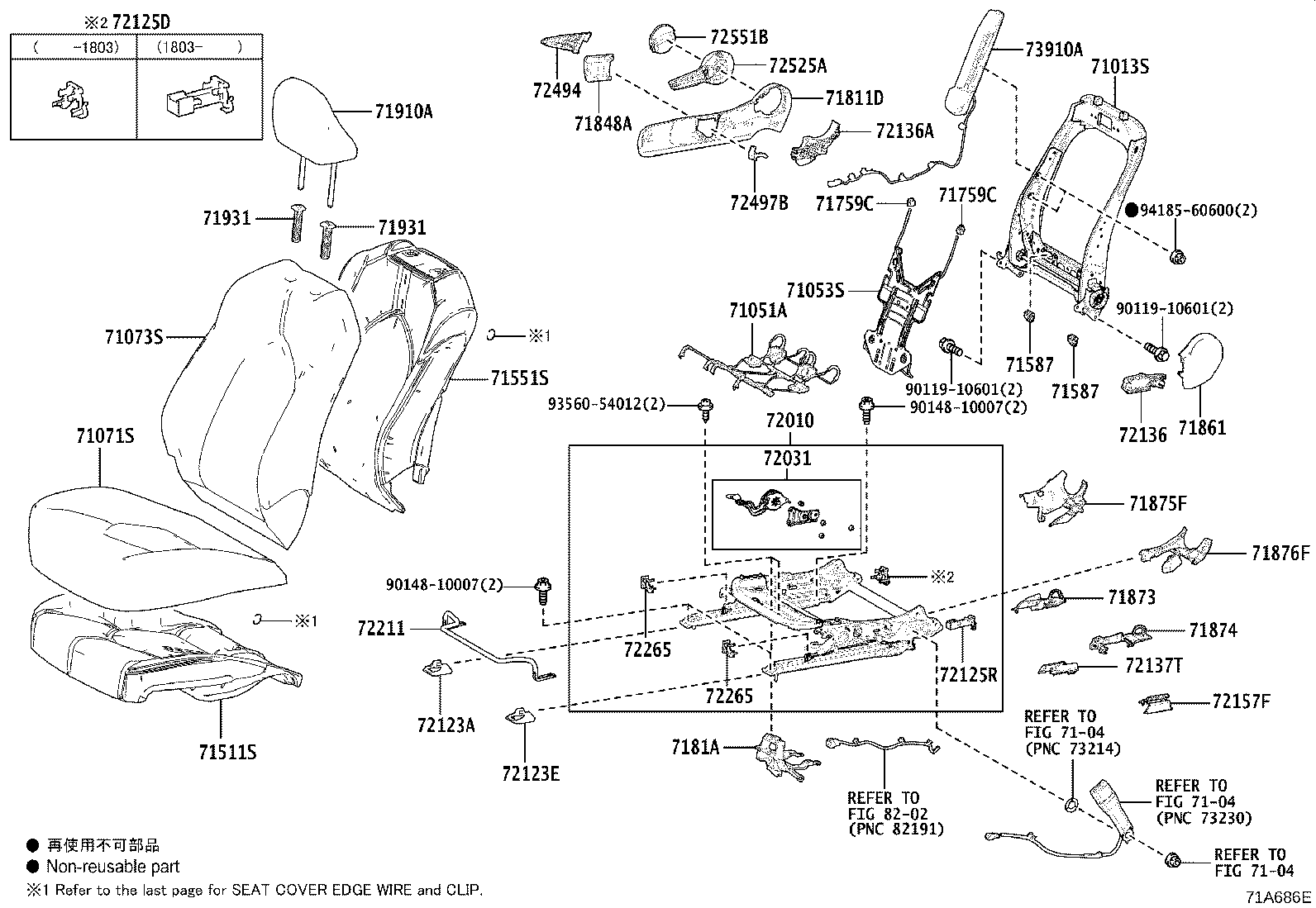

Exploded illustration 71A686E 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (4 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (1 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (10 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (10 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (3 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (1 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (3 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (3 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (3 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (3 parts) 71910A — HEADREST ASSY, FRONT SEAT (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (1 parts) 72031 — ADJUSTER ASSY, FRONT SEAT VERTICAL (1 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (1 parts) 72123E — COVER, SEAT TRACK BRACKET, INNER FRONT RH (1 parts) 72125R — COVER, SEAT TRACK, UPPER REAR NO.1 (1 parts) 72136 — SPACER, SEAT TRACK, LOWER NO.1 (1 parts) 72136A — SPACER, SEAT TRACK, LOWER NO.2 (1 parts) 72137T — COVER, SEAT TRACK BRACKET, OUTER REAR RH (1 parts) 72157F — COVER, SEAT TRACK BRACKET, INNER REAR RH (1 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (1 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 72494 — HANDLE, VERTICAL ADJUSTING, RH (3 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (3 parts) 72551B — COVER, RECLINING HINGE, RH (3 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 9356054012 — not listed in this catalogue 9418560600 — not listed in this catalogue 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (2 parts)
71A686E · 40 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-33360 Frame Sub-assy, Front Seatback, RH
2017-03 → 2018-05 ended
AXVA70 —
71013-33580 Frame Sub-assy, Front Seatback, RH
2018-05 → 2018-08 ended
AXVA70 LE —
71013-33580 Frame Sub-assy, Front Seatback, RH
2018-08 → 2018-11 ended
AXVA70 LE —
71013-33580 Frame Sub-assy, Front Seatback, RH
2018-05 → 2018-11 ended
AXVA70 SE —
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2017-03 → 2018-11 ended
AXVA70 —
71053S — Spring Sub-assy, Front Seatback, RH
71053-47050 Spring Sub-assy, Front Seatback, RH
2017-03 → 2018-11 ended
AXVA70 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-33P90-A3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71071-33P90-A4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71071-33P90-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71071-33P90-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71071-33P90-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71071-33P90-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71071-33R90-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 SE —
71071-33R90-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 SE —
71071-33R91-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 SE —
71071-33R91-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 SE —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-33R40-A4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71073-33R40-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71073-33R40-B5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71073-33R40-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 LE —
71073-33R40-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71073-33R40-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 LE —
71073-33T50-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 SE —
71073-33T50-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-08 ended
AXVA70 SE —
71073-33T51-B5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 SE —
71073-33T51-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-08 → 2018-11 ended
AXVA70 SE —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-33530 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-03 → 2018-11 ended
AXVA70 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-33410 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2017-03 → 2018-11 ended
AXVA70 —
71587 — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2017-03 → 2018-11 ended
AXVA70 —
71759C — Hook, Front Seatback, NO.1
71759-52050 Hook, Front Seatback, NO.1
2017-03 → 2018-11 ended
AXVA70 —
71811D — Shield, Front Seat Cushion, RH
71811-47140-B0 note Shield, Front Seat Cushion, RH
2017-03 → 2018-11 ended
AXVA70 —
71811-47140-C1 note Shield, Front Seat Cushion, RH
2017-03 → 2018-11 ended
AXVA70 —
71811-47140-E0 note Shield, Front Seat Cushion, RH
2017-03 → 2018-11 ended
AXVA70 LE —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-47010 Holder, Front Seat Cushion Wire Harness, RH
2017-03 → 2018-11 ended
AXVA70 —
71848A — Cap, Seat Adjuster Cover, RH
71848-47040-B0 note Cap, Seat Adjuster Cover, RH
2017-03 → 2018-11 ended
AXVA70 —
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2017-03 → 2018-11 ended
AXVA70 —
71848-47040-E0 note Cap, Seat Adjuster Cover, RH
2017-03 → 2018-11 ended
AXVA70 LE —
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-B0 note Shield, Front Seat Cushion, Inner RH
2017-03 → 2018-11 ended
AXVA70 —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2017-03 → 2018-11 ended
AXVA70 —
71861-47070-E0 note Shield, Front Seat Cushion, Inner RH
2017-03 → 2018-11 ended
AXVA70 LE —
71873 — Shield, Front Seat Cushion, Lower RH
71873-47070 Shield, Front Seat Cushion, Lower RH
2017-03 → 2018-11 ended
AXVA70 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-33140 Shield, Front Seat Cushion, Lower LH
2017-03 → 2018-11 ended
AXVA70 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-47040-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 —
71875-47040-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 LE —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-47070-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 —
71875-47070-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2017-03 → 2018-11 ended
AXVA70 LE —
71910A — Headrest Assy, Front Seat
71910-33A80-B3 note Headrest Assy, Front Seat
2017-03 → 2018-11 ended
AXVA70 LE —
71910-33A80-C5 note Headrest Assy, Front Seat
2017-03 → 2018-08 ended
AXVA70 LE —
71910-33A80-C6 note Headrest Assy, Front Seat
2018-08 → 2018-11 ended
AXVA70 LE —
71910-33A80-E4 note Headrest Assy, Front Seat
2017-03 → 2018-11 ended
AXVA70 LE —
71910-33B60-C9 note Headrest Assy, Front Seat
2017-03 → 2018-08 ended
AXVA70 SE —
71910-33B60-P0 note Headrest Assy, Front Seat
2017-03 → 2018-08 ended
AXVA70 SE —
71910-33B61-21 note Headrest Assy, Front Seat
2018-08 → 2018-11 ended
AXVA70 SE —
71910-33B61-P2 note Headrest Assy, Front Seat
2018-08 → 2018-11 ended
AXVA70 SE —
71931 — Support, Front Seat Headrest
71930-47050-B2 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 LE —
71930-47050-B3 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 SE —
71930-47050-C5 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 —
71930-47050-E0 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 LE —
71931-47030-B3 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 LE —
71931-47030-B4 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 SE —
71931-47030-C4 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 —
71931-47030-E0 note Support, Front Seat Headrest
2017-03 → 2018-11 ended
AXVA70 LE —
72010 — Adjuster Assy, Front Seat, RH
72010-33540 Adjuster Assy, Front Seat, RH
2017-03 → 2018-11 ended
AXVA70 —
72031 — Adjuster Assy, Front Seat Vertical
72443-47010 Adjuster Assy, Front Seat Vertical
2017-03 → 2018-11 ended
AXVA70 —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-47060 Cover, Seat Track Bracket, Outer Front RH
2017-03 → 2018-11 ended
AXVA70 —
72123E — Cover, Seat Track Bracket, Inner Front RH
72123-47060 Cover, Seat Track Bracket, Inner Front RH
2017-03 → 2018-11 ended
AXVA70 —
72125D — Cover, Seat Track, Upper Rear NO.2
72125-47010 Cover, Seat Track, Upper Rear NO.2
2018-03 → 2018-11 ended
AXVA70 —
72125-47020 Cover, Seat Track, Upper Rear NO.2
2017-03 → 2018-03 ended
AXVA70 —
72125R — Cover, Seat Track, Upper Rear NO.1
72125-47010 Cover, Seat Track, Upper Rear NO.1
2017-03 → 2018-11 ended
AXVA70 —
72136 — Spacer, Seat Track, Lower NO.1
72136-33250 Spacer, Seat Track, Lower NO.1
2017-03 → 2018-11 ended
AXVA70 —
72136A — Spacer, Seat Track, Lower NO.2
72136-33260 Spacer, Seat Track, Lower NO.2
2017-03 → 2018-11 ended
AXVA70 —
72137T — Cover, Seat Track Bracket, Outer Rear RH
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2017-03 → 2018-11 ended
AXVA70 —
72157F — Cover, Seat Track Bracket, Inner Rear RH
72157-47080 Cover, Seat Track Bracket, Inner Rear RH
2017-03 → 2018-11 ended
AXVA70 —
72211 — Handle, Seat Track Adjusting
72211-47050 Handle, Seat Track Adjusting
2017-03 → 2018-11 ended
AXVA70 —
72265 — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2017-03 → 2018-11 ended
AXVA70 —
72494 — Handle, Vertical Adjusting, RH
72494-47030-B0 note Handle, Vertical Adjusting, RH
2017-03 → 2018-11 ended
AXVA70 —
72494-47030-C1 note Handle, Vertical Adjusting, RH
2017-03 → 2018-11 ended
AXVA70 —
72494-47030-E0 note Handle, Vertical Adjusting, RH
2017-03 → 2018-11 ended
AXVA70 LE —
72497B — Cover, Vertical Adjuster Bracket, RH
72498-47010 Cover, Vertical Adjuster Bracket, RH
2017-03 → 2018-11 ended
AXVA70 —
72525A — Handle, Reclining Adjuster Release, RH
72525-33050-B0 note Handle, Reclining Adjuster Release, RH
2017-03 → 2018-11 ended
AXVA70 —
72525-33050-C0 note Handle, Reclining Adjuster Release, RH
2017-03 → 2018-11 ended
AXVA70 —
72525-33050-E0 note Handle, Reclining Adjuster Release, RH
2017-03 → 2018-11 ended
AXVA70 LE —
72551B — Cover, Reclining Hinge, RH
72551-33010-B0 note Cover, Reclining Hinge, RH
2017-03 → 2018-11 ended
AXVA70 —
72551-33010-C0 note Cover, Reclining Hinge, RH
2017-03 → 2018-11 ended
AXVA70 —
72551-33010-E0 note Cover, Reclining Hinge, RH
2017-03 → 2018-11 ended
AXVA70 LE —
73910A — Airbag Assy, Front Seat, RH
73910-33080 Airbag Assy, Front Seat, RH
2017-03 → 2018-11 ended
AXVA70 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
