Toyota Camry (JPP)

2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 2 illustrations

Illustrations

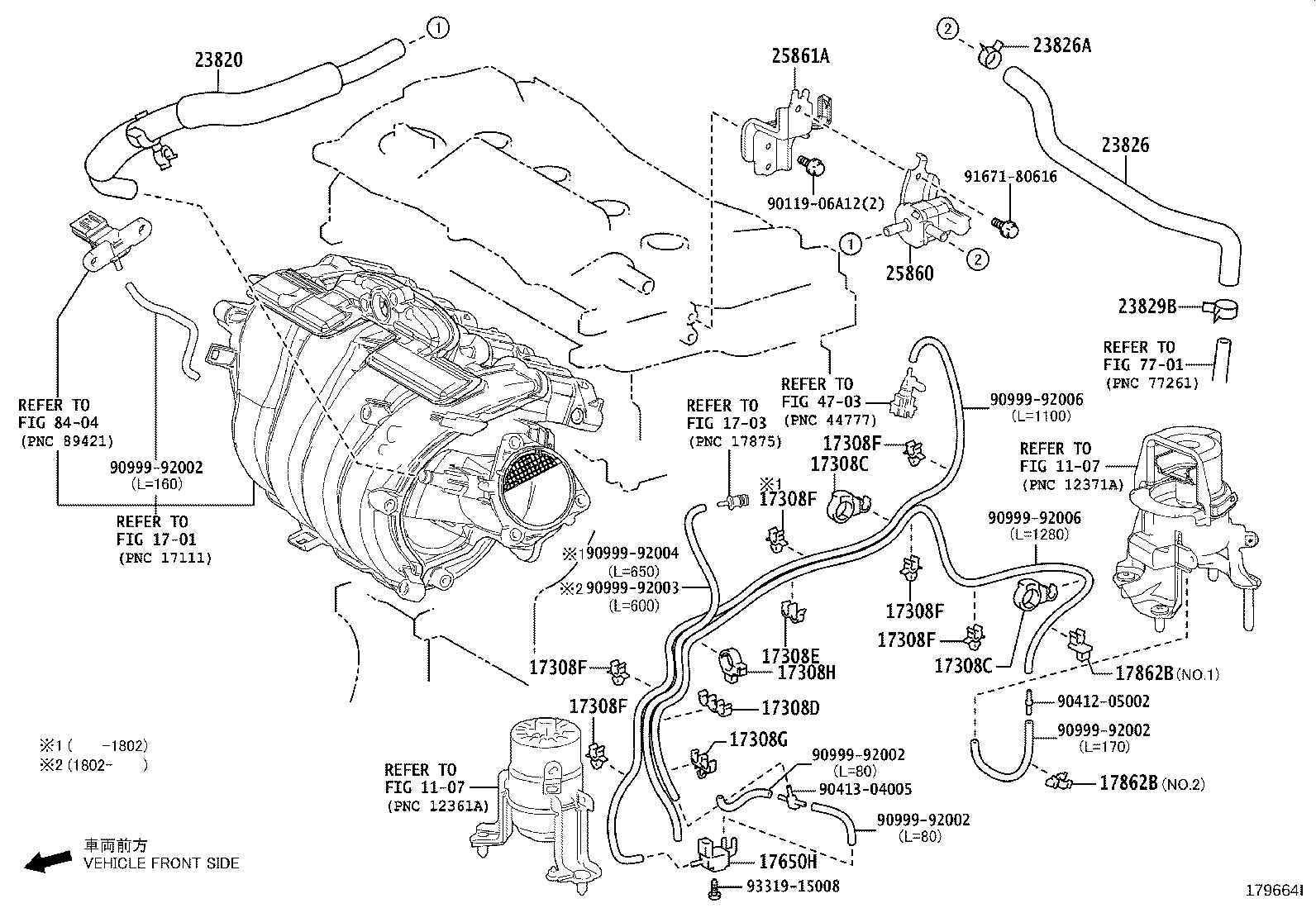

Figure 179833B 179833B 2017-03 → 2017-06 Figure 179664I 179664I 2017-06 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17650H Valve, Vacuum Switching
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
