Toyota Camry (JPP)

2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

32 part groups · 4 illustrations

Illustrations

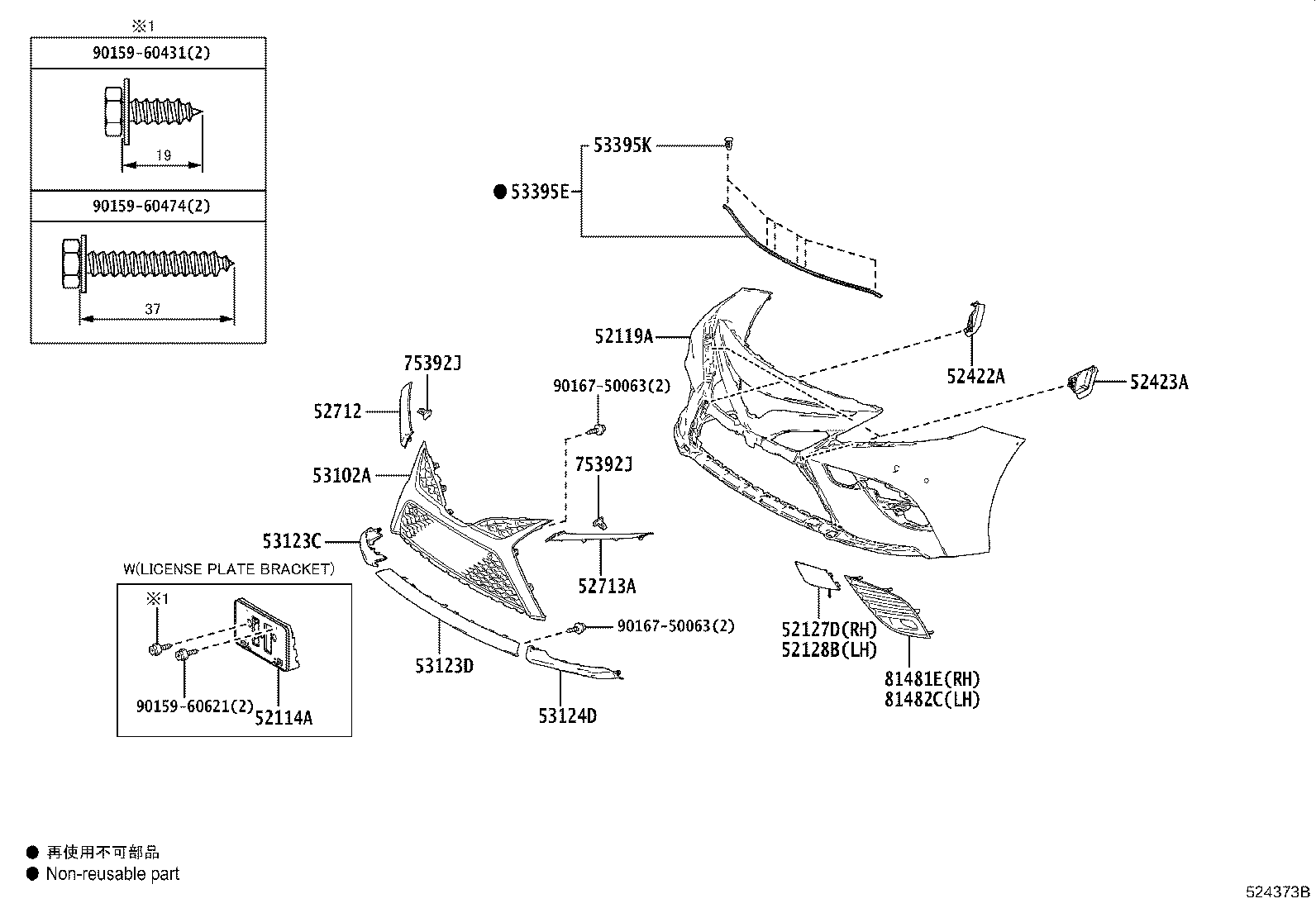

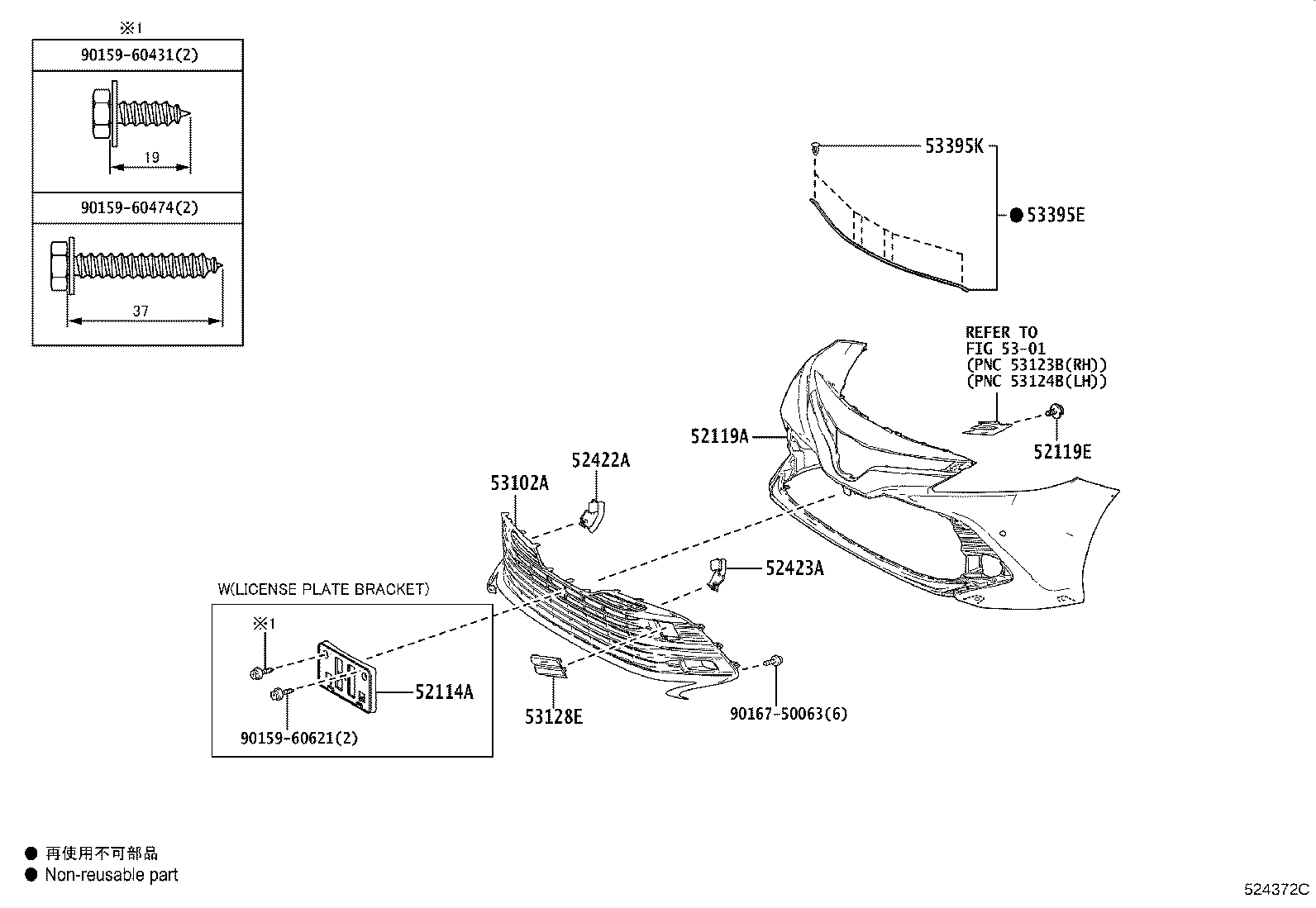

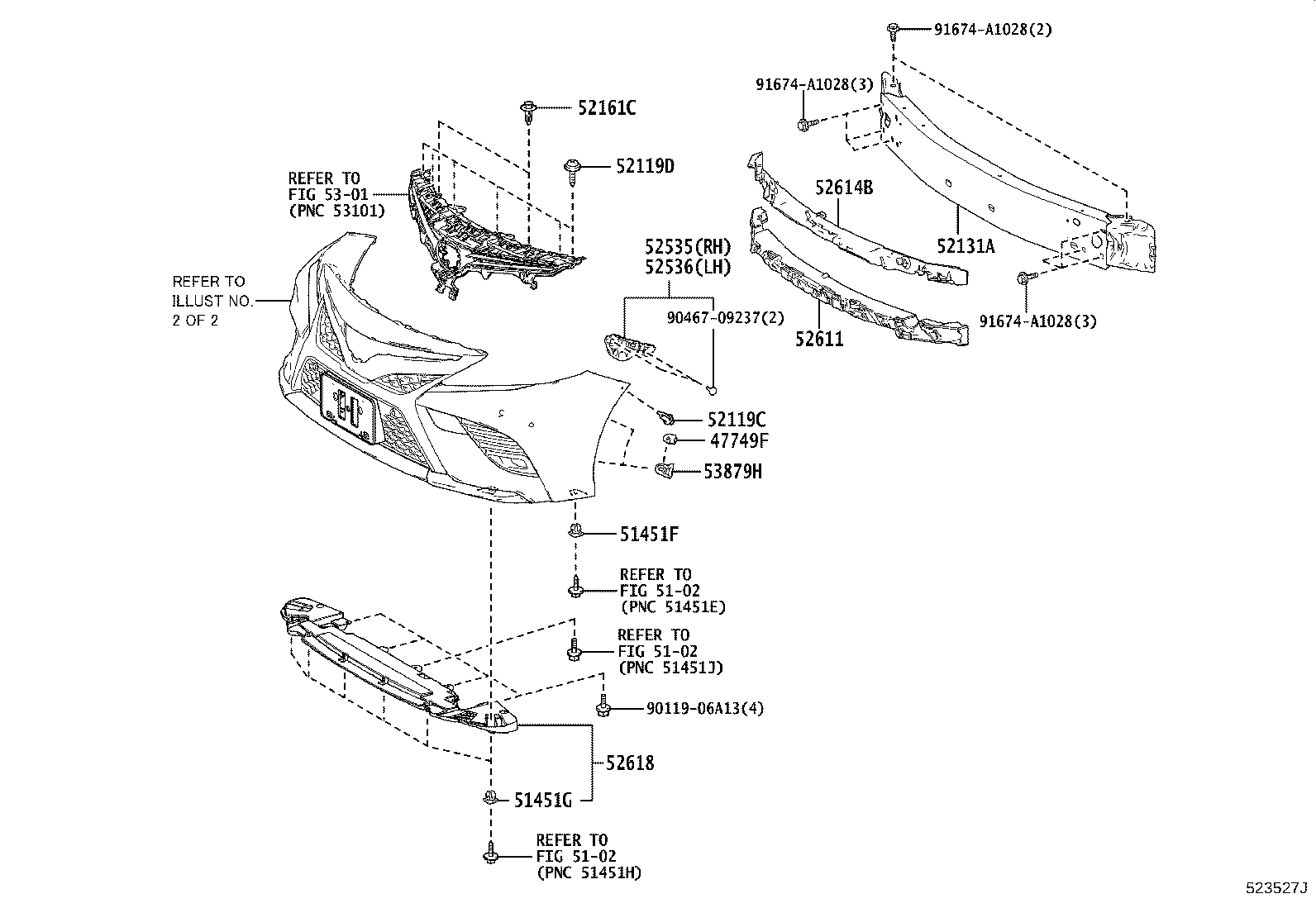

Figure 523526M 523526M 2017-03 → — Figure 524372C 524372C 2017-03 → — Figure 523527J 523527J 2017-03 → — Figure 524373B 524373B 2017-03 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451G Grommet, NO.2
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52119E Screw, NO.2
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52614B Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53123C Moulding, Radiator Grille, Lower RH
53123D Moulding, Radiator Grille, Lower
53124D Moulding, Radiator Grille, Lower LH
53128E Grille, Radiator, Lower Side LH
53395E Seal, Hood TO Front End Panel
53395K Clip(FOR HOOD TO FRONT END PANEL SEAL)
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
