Toyota Camry (JPP)

2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

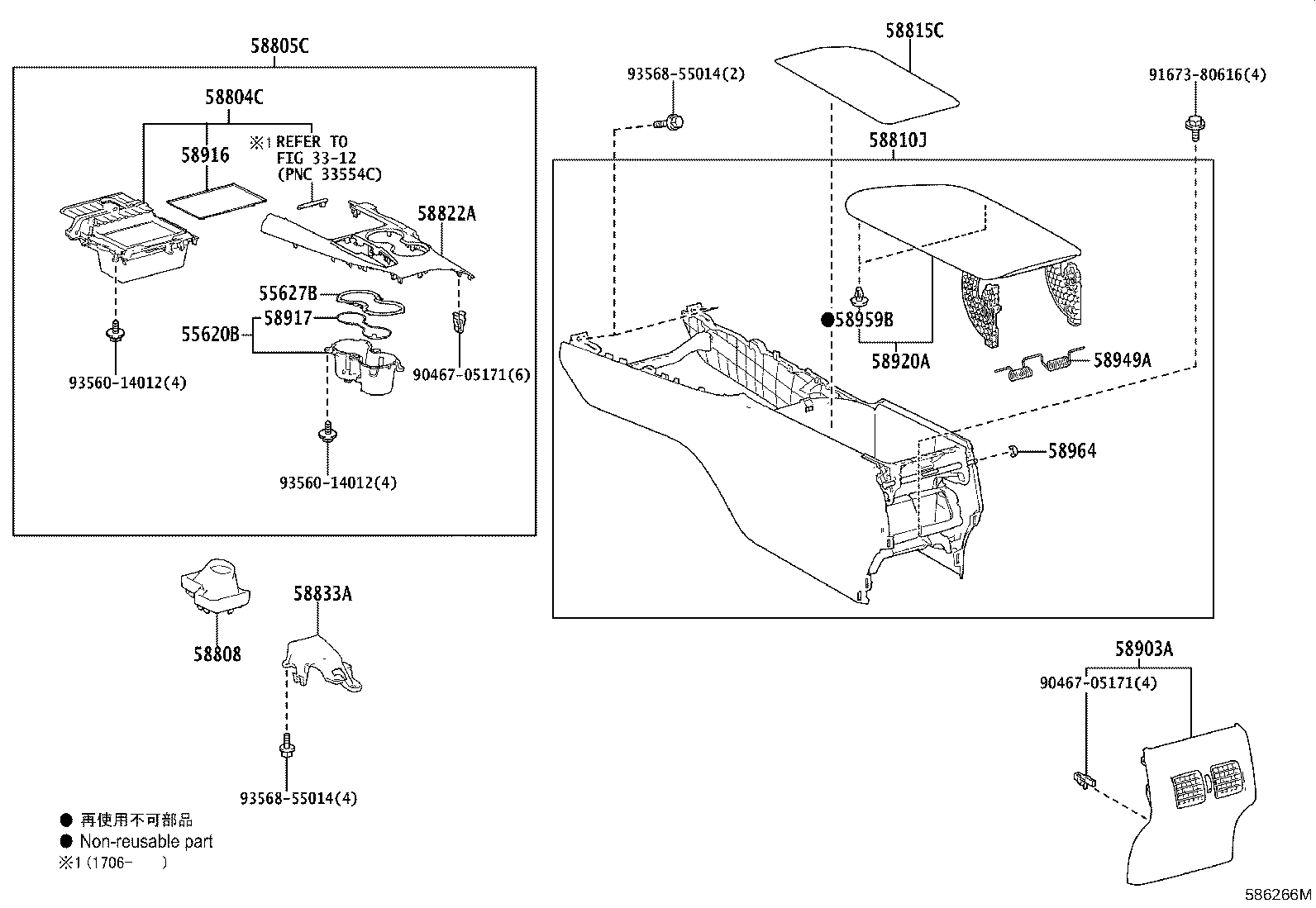

Figure 586265K 586265K 2017-03 → — Figure 586266M 586266M 2017-03 → —

Part groups

PNCDescription
55620B Holder, Instrument Panel Cup
55627B Rail, Console Box Cup Holder
58804C Insert Sub-assy, Console Box, Front
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58815C Carpet, Console Box
58822A Panel, Console, Upper Rear
58833A Cover, Console, Upper
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58920A Armrest Assy, Rear Console
58949A Spring, Console Box Mounting Bracket
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
