Factory parts data · Europe

Toyota Camry (JPP)

2017-03 → present · chassis AXVA70 · catalogue 2844A0 · United States

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 866839F

866839F 2017-03 → —

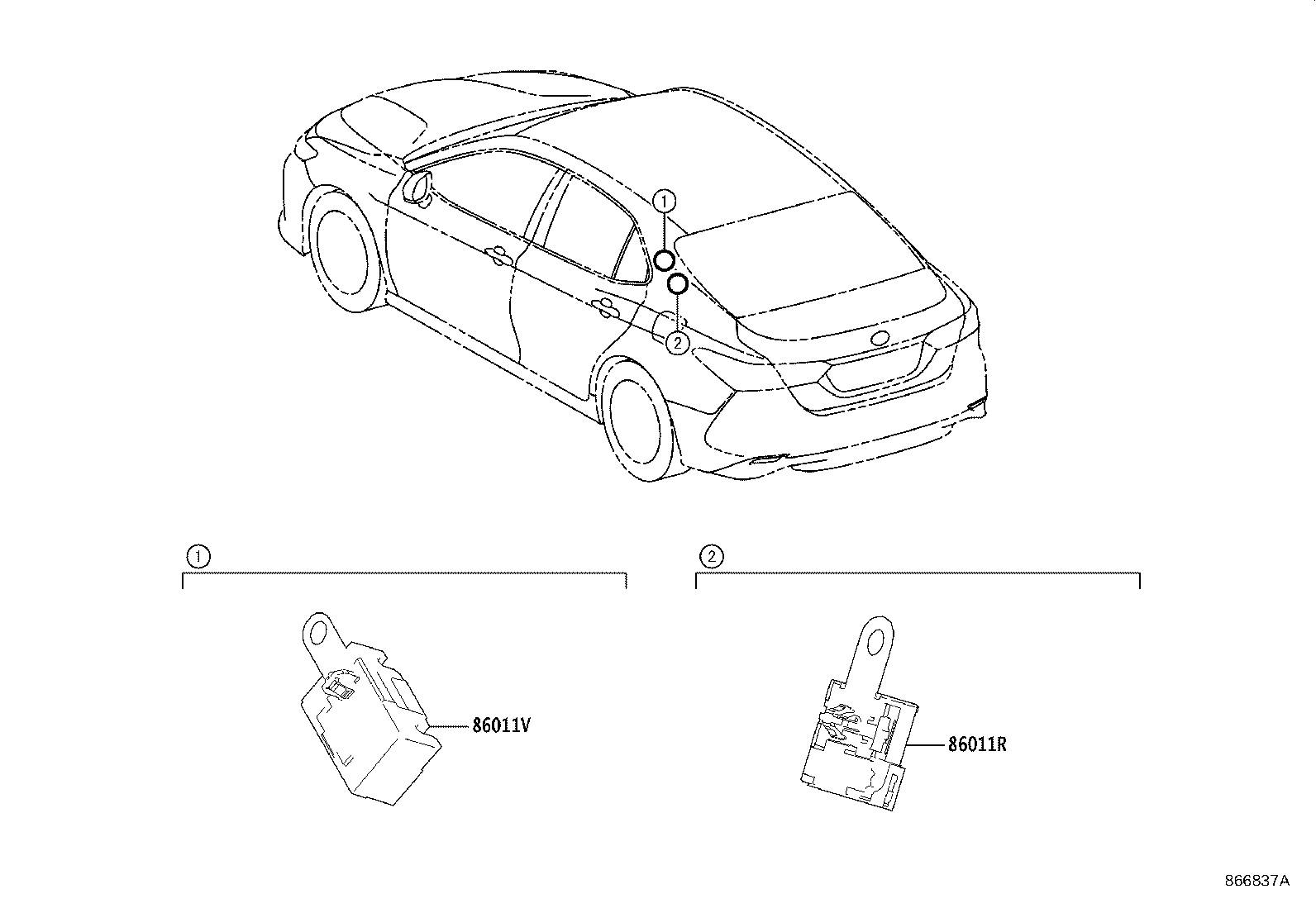

Figure 866837A

866837A 2017-03 → —

Part groups

PNC	Description
86011R	Condenser, Radio Setting
86011V	Condenser, Radio Setting
86190C	Adapter Assy, Stereo Jack, NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
