Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

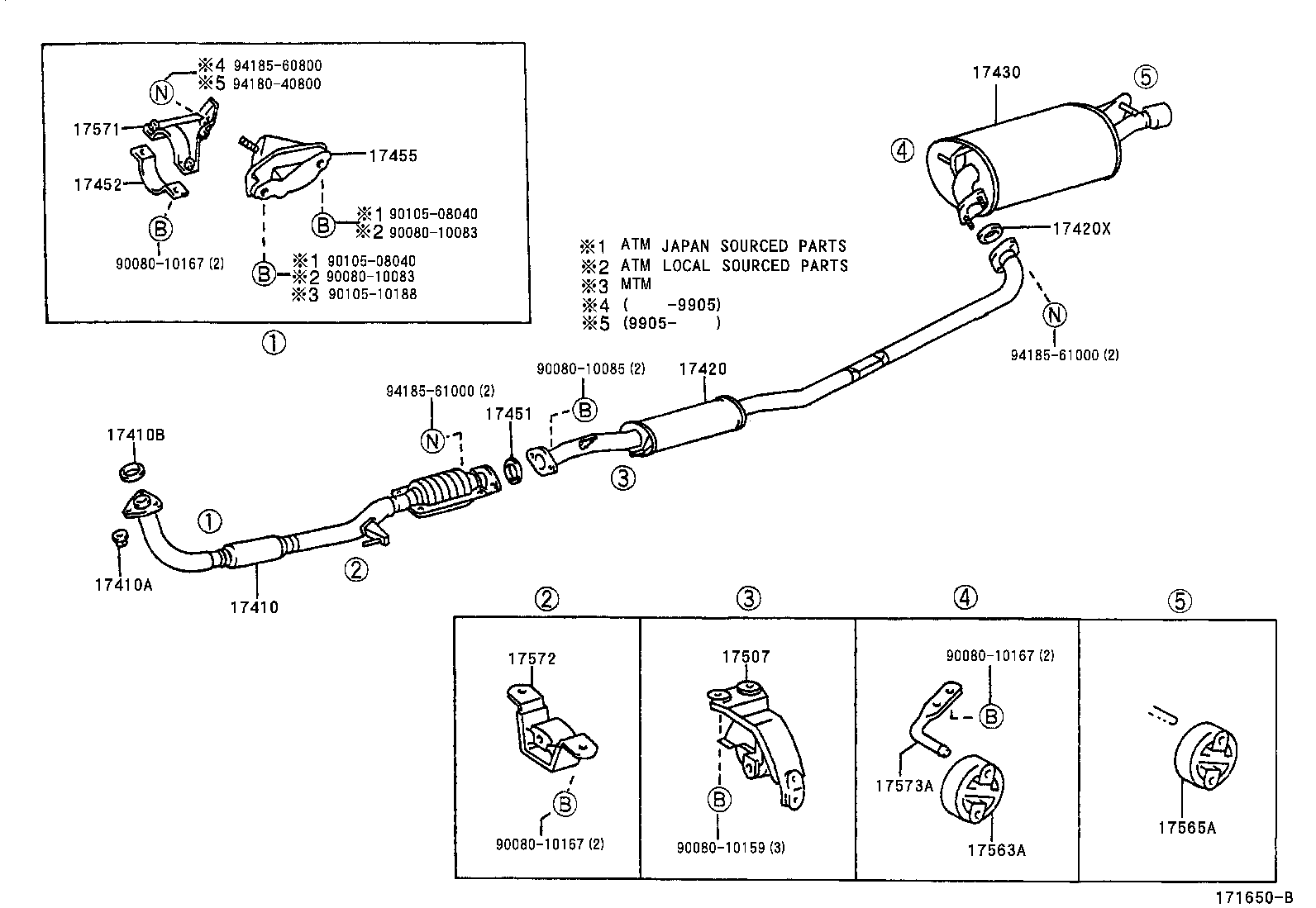

Exploded illustration 171650B 9418560800 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (4 parts) 9418040800 — not listed in this catalogue 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (9 parts) 17455 — BRACKET, EXHAUST PIPE (1 parts) 17452 — CLAMP, EXHAUST PIPE (1 parts) 9010508040 — not listed in this catalogue 17420X — GASKET, EXHAUST PIPE, CENTER (3 parts) 9008010083 — not listed in this catalogue 9010508040 — not listed in this catalogue 9008010167 — not listed in this catalogue 9008010083 — not listed in this catalogue 9010510188 — not listed in this catalogue 9418561000 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (5 parts) 9008010085 — not listed in this catalogue 9418561000 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (2 parts) 17410B — GASKET, EXHAUST PIPE (4 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (4 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (12 parts) 17507 — BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT (2 parts) 9008010167 — not listed in this catalogue 17572 — BRACKET, EXHAUST PIPE NO.1 SUPPORT (3 parts) 17573A — BRACKET, EXHAUST PIPE SUPPORT, NO.3 (4 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 9008010167 — not listed in this catalogue 9008010159 — not listed in this catalogue 17563A — SUPPORT, EXHAUST PIPE, NO.3 (2 parts)
171650B · 15 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-03130 Pipe Assy, Exhaust, Front
1998-06 → 2000-08 ended
5SFE SXV20 CP —
17410-03140 note Pipe Assy, Exhaust, Front
1998-06 → 1999-08 ended
5SFE SXV20 USA —
17410-03270 note Pipe Assy, Exhaust, Front
1999-08 → 2000-08 ended
5SFE SXV20 CP USA —
17410-03270 Pipe Assy, Exhaust, Front
2000-02 → 2000-08 ended
5SFE SXV20 CVT —
17410-03300 Pipe Assy, Exhaust, Front
2000-08 → 2001-07 ended
5SFE SXV20 —
17410-0A080 Pipe Assy, Exhaust, Front
1998-06 → 2000-08 ended
1MZFE MCV20 ATM —
17410-0A090 Pipe Assy, Exhaust, Front
1998-06 → 2002-07 ended
1MZFE MCV20 MTM —
17410-0A170 note Pipe Assy, Exhaust, Front
1998-06 → 1998-08 ended
1MZFE MCV20 ATM USA —
17410-0A240 note Pipe Assy, Exhaust, Front
1998-08 → 1999-08 ended
1MZFE MCV20 ATM USA —
17410-0A260 note Pipe Assy, Exhaust, Front
1999-08 → 2000-08 ended
1MZFE MCV20 ATM USA —
17410-0A320 Pipe Assy, Exhaust, Front
2000-08 → 2002-12 ended
1MZFE MCV20 ATM —
17410-0H030 Pipe Assy, Exhaust, Front
2001-07 → 2002-12 ended
2AZFE ACV20 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2002-07 → 2002-12 ended
1MZFE MCV20 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2001-07 → 2002-12 ended
2AZFE ACV20 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1998-06 → 2002-07 ended
1MZFE MCV20 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1998-06 → 2001-07 ended
5SFE SXV20 —
17410B — Gasket, Exhaust Pipe
90917-06065 Gasket, Exhaust Pipe
1998-06 → 2002-07 ended
1MZFE MCV20 —
90917-06065 Gasket, Exhaust Pipe
2002-07 → 2002-12 ended
1MZFE MCV20 —
90917-06066 Gasket, Exhaust Pipe
1998-06 → 2001-07 ended
5SFE SXV20 —
90917-06090 Gasket, Exhaust Pipe
2001-07 → 2002-12 ended
2AZFE ACV20 —
17420 — Pipe Assy, Exhaust, Center
17420-03080 Pipe Assy, Exhaust, Center
1998-06 → 1999-08 ended
5SFE SXV20 —
17420-03180 Pipe Assy, Exhaust, Center
1999-08 → 2001-07 ended
5SFE SXV20 —
17420-0A060 Pipe Assy, Exhaust, Center
1998-06 → 2002-07 ended
1MZFE MCV20 —
17420-0A060 Pipe Assy, Exhaust, Center
2002-07 → 2002-12 ended
1MZFE MCV20 —
17420-0H020 Pipe Assy, Exhaust, Center
2001-07 → 2002-12 ended
2AZFE ACV20 —
17420X — Gasket, Exhaust Pipe, Center
90080-43026 Gasket, Exhaust Pipe, Center
1998-06 → 2002-07 ended
1MZFE MCV20 —
90080-43026 Gasket, Exhaust Pipe, Center
2002-07 → 2002-12 ended
1MZFE MCV20 —
90080-43028 Gasket, Exhaust Pipe, Center
1998-06 → 2002-12 ended
2AZFE,5SFE ACV20,SXV20 —
17430 — Pipe Assy, Exhaust, Tail
17440-03011 Pipe Assy, Exhaust, Tail
1998-06 → 2001-07 ended
5SFE SXV20 —
17440-0A011 Pipe Assy, Exhaust, Tail
2002-07 → 2002-12 ended
1MZFE MCV20 —
17440-0A011 Pipe Assy, Exhaust, Tail
1998-06 → 2002-07 ended
1MZFE MCV20 —
17440-0H030 Pipe Assy, Exhaust, Tail
2001-07 → 2002-12 ended
2AZFE ACV20 —
17451 — Gasket, Exhaust Pipe
90080-43026 Gasket, Exhaust Pipe
1998-06 → 2002-07 ended
2AZFE,1MZFE,5SFE ACV20,MCV20,SXV20 —
90080-43026 Gasket, Exhaust Pipe
2002-07 → 2002-12 ended
2AZFE,1MZFE ACV20,MCV20 —
17452 — Clamp, Exhaust Pipe
17452-03030 Clamp, Exhaust Pipe
1998-06 → 2001-07 ended
5SFE SXV20 —
17455 — Bracket, Exhaust Pipe
17455-74080 Bracket, Exhaust Pipe
1998-06 → 2001-07 ended
5SFE SXV20 —
17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support
17507-0A060 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1998-06 → 2002-07 ended
2AZFE,1MZFE,5SFE ACV20,MCV20,SXV20 —
17507-0A060 Bracket Sub-assy, Exhaust Pipe NO.2 Support
2002-07 → 2002-12 ended
2AZFE,1MZFE ACV20,MCV20 —
17563A — Support, Exhaust Pipe, NO.3
17565-0A071 Support, Exhaust Pipe, NO.3
1998-06 → 2002-07 ended
2AZFE,1MZFE,5SFE ACV20,MCV20,SXV20 —
17565-0A071 Support, Exhaust Pipe, NO.3
2002-07 → 2002-12 ended
2AZFE,1MZFE ACV20,MCV20 —
17565A — Support, Exhaust Pipe, NO.4
17565-07040 Support, Exhaust Pipe, NO.4
2002-07 → 2002-12 ended
2AZFE,1MZFE ACV20,MCV20 —
17565-07040 Support, Exhaust Pipe, NO.4
1998-06 → 2002-07 ended
2AZFE,1MZFE,5SFE ACV20,MCV20,SXV20 —
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-0A060 note Bracket, Exhaust Pipe Support, NO.1
1998-06 → 2001-03 ended
1MZFE MCV20 —
17571-0A061 note Bracket, Exhaust Pipe Support, NO.1
2001-03 → 2002-07 ended
1MZFE MCV20 —
17571-0A061 note Bracket, Exhaust Pipe Support, NO.1
2002-07 → 2002-12 ended
1MZFE MCV20 —
17571-0H010 note Bracket, Exhaust Pipe Support, NO.1
2001-07 → 2002-12 ended
2AZFE ACV20 —
17571-20070 note Bracket, Exhaust Pipe Support, NO.1
1998-06 → 2001-03 ended
1MZFE MCV20 —
17571-20071 note Bracket, Exhaust Pipe Support, NO.1
2001-03 → 2002-07 ended
1MZFE MCV20 —
17571-20071 note Bracket, Exhaust Pipe Support, NO.1
2002-07 → 2002-12 ended
1MZFE MCV20 —
17571-28080 note Bracket, Exhaust Pipe Support, NO.1
2001-07 → 2002-12 ended
2AZFE ACV20 —
17571-74410 Bracket, Exhaust Pipe Support, NO.1
1998-06 → 2001-07 ended
5SFE SXV20 —
17572 — Bracket, Exhaust Pipe NO.1 Support
17572-03020 Bracket, Exhaust Pipe NO.1 Support
1998-06 → 2002-12 ended
2AZFE,5SFE ACV20,SXV20 —
17572-0A040 Bracket, Exhaust Pipe NO.1 Support
1998-06 → 2002-07 ended
1MZFE MCV20 —
17572-0A040 Bracket, Exhaust Pipe NO.1 Support
2002-07 → 2002-12 ended
1MZFE MCV20 —
17573A — Bracket, Exhaust Pipe Support, NO.3
17573-0A021 note Bracket, Exhaust Pipe Support, NO.3
1998-06 → 2001-07 ended
1MZFE,5SFE MCV20,SXV20 —
17573-28010 Bracket, Exhaust Pipe Support, NO.3
2001-07 → 2002-07 ended
2AZFE,1MZFE ACV20,MCV20 —
17573-28010 Bracket, Exhaust Pipe Support, NO.3
2002-07 → 2002-12 ended
2AZFE,1MZFE ACV20,MCV20 —
17573-74211 note Bracket, Exhaust Pipe Support, NO.3
1998-06 → 2001-07 ended
1MZFE,5SFE MCV20,SXV20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
