Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

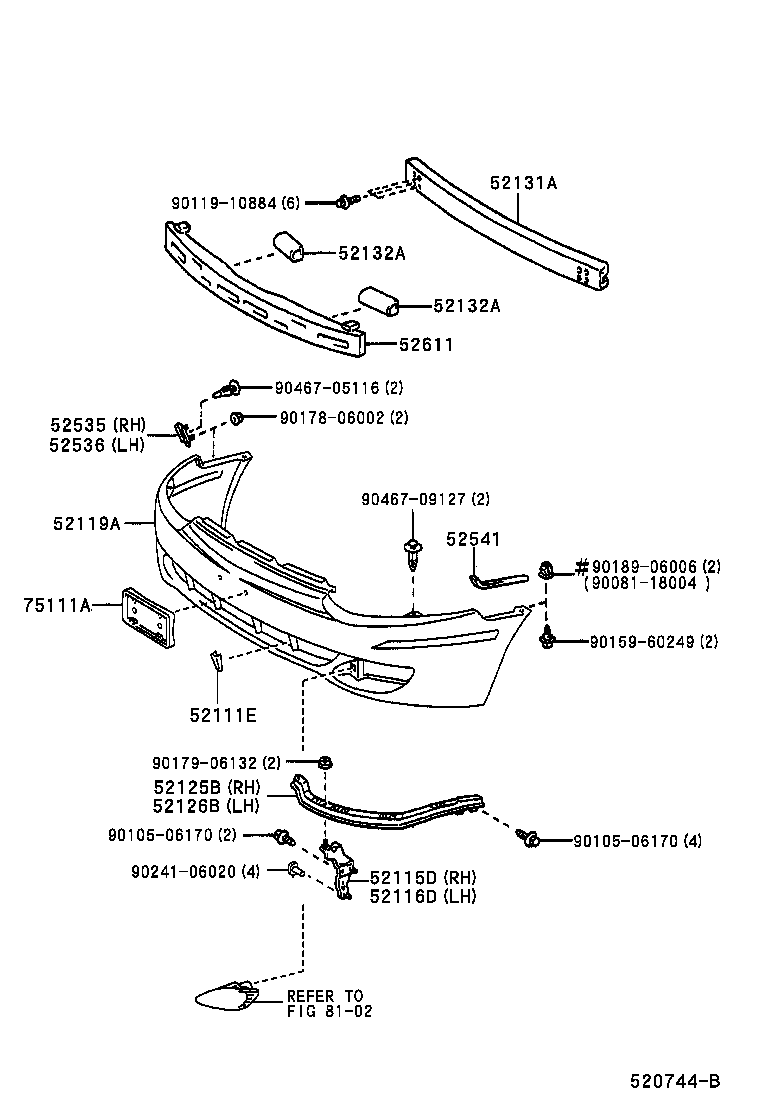

Exploded illustration 520744B 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 9011910884 — not listed in this catalogue 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (2 parts) 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (2 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 9046705116 — not listed in this catalogue 9017806002 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (3 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (2 parts) 9046709127 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (3 parts) 52541 — PROTECTOR, FRONT BUMPER (2 parts) 9018906006 — not listed in this catalogue 9008118004 — not listed in this catalogue 75111A — BRACKET, FRONT LICENSE PLATE (2 parts) 9015960249 — not listed in this catalogue 52111E — BAR, FRONT BUMPER (1 parts) 9017906132 — not listed in this catalogue 52125B — EXTENSION, FRONT BUMPER REINFORCEMENT, RH (3 parts) 52126B — EXTENSION, FRONT BUMPER REINFORCEMENT, LH (3 parts) 9010506170 — not listed in this catalogue 9010506170 — not listed in this catalogue 9024106020 — not listed in this catalogue 52115D — SUPPORT, FRONT BUMPER SIDE, NO.2 RH (3 parts) 52116D — SUPPORT, FRONT BUMPER SIDE, NO.2 LH (3 parts) 8102 — not listed in this catalogue
520744B · 14 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
52111E — Bar, Front Bumper
52111-AA010-C0 note Bar, Front Bumper
2001-07 → 2002-12 ended
ACV20,MCV20 —
52115D — Support, Front Bumper Side, NO.2 RH
52115-06010 Support, Front Bumper Side, NO.2 RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
52115-AA030 Support, Front Bumper Side, NO.2 RH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52115-AA030 Support, Front Bumper Side, NO.2 RH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52116D — Support, Front Bumper Side, NO.2 LH
52116-06010 Support, Front Bumper Side, NO.2 LH
1998-06 → 2001-07 ended
MCV20,SXV20 —
52116-AA030 Support, Front Bumper Side, NO.2 LH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52116-AA030 Support, Front Bumper Side, NO.2 LH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52119A — Cover, Front Bumper
52119-06901 Cover, Front Bumper
1998-06 → 2001-07 ended
MCV20,SXV20 —
52119-AA906 Cover, Front Bumper
2001-07 → 2002-07 ended
ACV20,MCV20 —
52119-AA906 Cover, Front Bumper
2002-07 → 2002-12 ended
ACV20,MCV20 —
52125B — Extension, Front Bumper Reinforcement, RH
52125-06020 Extension, Front Bumper Reinforcement, RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
52125-AA030 Extension, Front Bumper Reinforcement, RH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52125-AA030 Extension, Front Bumper Reinforcement, RH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52126B — Extension, Front Bumper Reinforcement, LH
52126-06020 Extension, Front Bumper Reinforcement, LH
1998-06 → 2001-07 ended
MCV20,SXV20 —
52126-AA030 Extension, Front Bumper Reinforcement, LH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52126-AA030 Extension, Front Bumper Reinforcement, LH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52131A — Reinforcement, Front Bumper
52131-06030 Reinforcement, Front Bumper
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
52131-06030 Reinforcement, Front Bumper
2002-07 → 2002-12 ended
ACV20,MCV20 —
52132A — Reinforcement, Front Bumper, NO.2
52132-AA020 Reinforcement, Front Bumper, NO.2
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
52132-AA020 Reinforcement, Front Bumper, NO.2
2002-07 → 2002-12 ended
ACV20,MCV20 —
52535 — Retainer, Front Bumper Side, RH
52535-06020 Retainer, Front Bumper Side, RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
52535-06020 Retainer, Front Bumper Side, RH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52535-06020 Retainer, Front Bumper Side, RH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52536 — Retainer, Front Bumper Side, LH
52535-06020 Retainer, Front Bumper Side, LH
2001-07 → 2002-07 ended
ACV20,MCV20 —
52535-06020 Retainer, Front Bumper Side, LH
2002-07 → 2002-12 ended
ACV20,MCV20 —
52541 — Protector, Front Bumper
52541-06010 Protector, Front Bumper
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
52541-06010 Protector, Front Bumper
2002-07 → 2002-12 ended
ACV20,MCV20 —
52611 — Absorber, Front Bumper Energy
52611-06020 Absorber, Front Bumper Energy
1998-06 → 2001-07 ended
MCV20,SXV20 —
52611-AA050 Absorber, Front Bumper Energy
2001-07 → 2002-07 ended
ACV20,MCV20 —
52611-AA050 Absorber, Front Bumper Energy
2002-07 → 2002-12 ended
ACV20,MCV20 —
75111A — Bracket, Front License Plate
75101-AA030 Bracket, Front License Plate
2001-07 → 2002-07 ended
ACV20,MCV20 —
75101-AA030 Bracket, Front License Plate
2002-07 → 2002-12 ended
ACV20,MCV20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
