Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

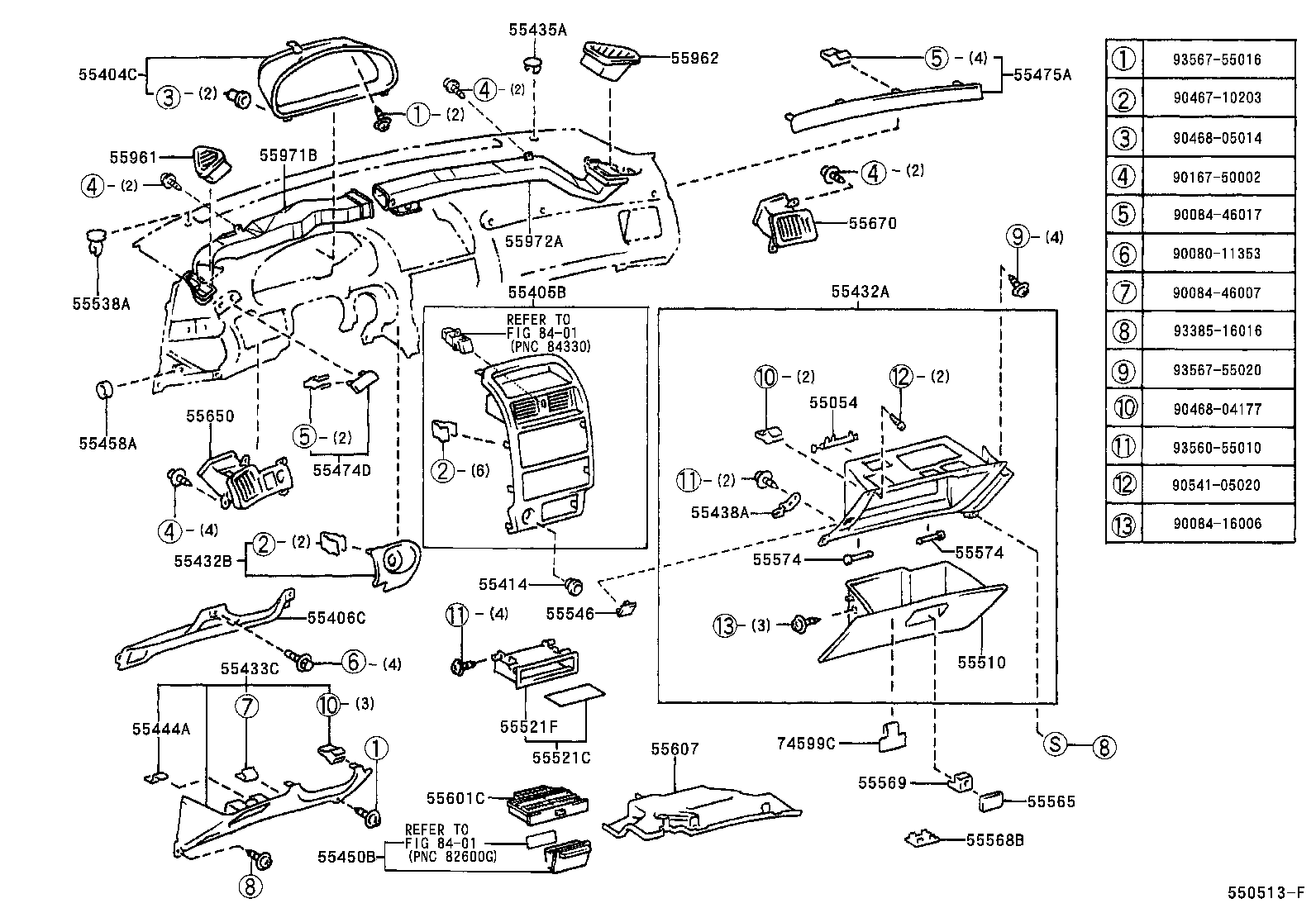

Exploded illustration 550513F 55435A — PANEL, INSTRUMENT PANEL FINISH, END RH (6 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (2 parts) 9356755016 — not listed in this catalogue 55404C — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 (2 parts) 55475A — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 (5 parts) 9046710203 — not listed in this catalogue 9046805014 — not listed in this catalogue 55971B — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (2 parts) 9016750002 — not listed in this catalogue 9008446017 — not listed in this catalogue 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (2 parts) 55972A — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (2 parts) 9008011353 — not listed in this catalogue 55432A — PANEL, INSTRUMENT PANEL FINISH, LOWER RH (4 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (2 parts) 9008446007 — not listed in this catalogue 55538A — COVER, COOLER SWITCH HOLE (4 parts) 9338516016 — not listed in this catalogue 8401 — not listed in this catalogue 9356755020 — not listed in this catalogue 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 9046804177 — not listed in this catalogue 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55458A — CAP, INSTRUMENT PANEL SAFETY PAD (2 parts) 9356055010 — not listed in this catalogue 55474D — GARNISH, INSTRUMENT PANEL SAFETY PAD (5 parts) 9054105020 — not listed in this catalogue 55438A — RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 (2 parts) 9008416006 — not listed in this catalogue 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (2 parts) 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (2 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (2 parts) 55414 — BEZEL, CIGAR LIGHTER HOLE (2 parts) 55546 — COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE (2 parts) 55406C — INSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH (2 parts) 55510 — DOOR ASSY, GLOVE COMPARTMENT (2 parts) 55433C — PANEL, INSTRUMENT PANEL FINISH, LOWER LH (2 parts) 55521F — COVER, STEREO OPENING, NO.2 (1 parts) 55444A — SPRING, INSTRUMENT PANEL BOX (2 parts) 74599C — LABEL, DRIVER & PASSENGER AIRBAG INFORMATION (2 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (2 parts) 55521C — COVER, STEREO OPENING (1 parts) 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (2 parts) 55601C — TRAY SUB-ASSY, INSTRUMENT PANEL UNDER (2 parts) 55565 — HANDLE, GLOVE COMPARTMENT DOOR LOCK (2 parts) 55568B — PLATE, GLOVE COMPARTMENT DOOR FINISH (2 parts) 8401 — not listed in this catalogue 55450B — BOX ASSY, COIN (2 parts)
550513F · 34 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
55054 — Stopper Sub-assy, Glove Compartment Door
55054-AA010 Stopper Sub-assy, Glove Compartment Door
2002-07 → 2002-12 ended
ACV20,MCV20 —
55054-AA010 Stopper Sub-assy, Glove Compartment Door
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55404C — Panel Sub-assy, Instrument Cluster Finish, NO.2
55404-06020 Panel Sub-assy, Instrument Cluster Finish, NO.2
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55404-06020 Panel Sub-assy, Instrument Cluster Finish, NO.2
2002-07 → 2002-12 ended
ACV20,MCV20 —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-06010 Panel Sub-assy, Instrument Cluster Finish, Center
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55405-06010 Panel Sub-assy, Instrument Cluster Finish, Center
2002-07 → 2002-12 ended
ACV20,MCV20 —
55406C — Insert Sub-assy, Instrument Panel, Lower LH
55406-AA010 Insert Sub-assy, Instrument Panel, Lower LH
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55406-AA010 Insert Sub-assy, Instrument Panel, Lower LH
2002-07 → 2002-12 ended
ACV20,MCV20 —
55414 — Bezel, Cigar Lighter Hole
55477-06010 Bezel, Cigar Lighter Hole
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55477-06010 Bezel, Cigar Lighter Hole
2002-07 → 2002-12 ended
ACV20,MCV20 —
55432A — Panel, Instrument Panel Finish, Lower RH
55303-AA010-A0 note Panel, Instrument Panel Finish, Lower RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
55303-AA010-B1 note Panel, Instrument Panel Finish, Lower RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
55303-AA030-A0 note Panel, Instrument Panel Finish, Lower RH
2001-07 → 2002-12 ended
ACV20,MCV20 —
55303-AA030-B0 note Panel, Instrument Panel Finish, Lower RH
2001-07 → 2002-12 ended
ACV20,MCV20 —
55432B — Panel, Instrument Panel Finish, Lower
55480-06020-A0 note Panel, Instrument Panel Finish, Lower
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55480-06020-B0 note Panel, Instrument Panel Finish, Lower
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55433C — Panel, Instrument Panel Finish, Lower LH
55302-AA010-A0 note Panel, Instrument Panel Finish, Lower LH
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55302-AA010-B1 note Panel, Instrument Panel Finish, Lower LH
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55435A — Panel, Instrument Panel Finish, End RH
55435-06010-C0 note Panel, Instrument Panel Finish, End RH
2001-07 → 2002-07 ended
ACV20,MCV20 CND —
55435-06010-C0 note Panel, Instrument Panel Finish, End RH
2002-07 → 2002-12 ended
ACV20,MCV20 CND —
55435-06010-C0 note Panel, Instrument Panel Finish, End RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
55435-06010-E0 note Panel, Instrument Panel Finish, End RH
2001-07 → 2002-07 ended
ACV20,MCV20 CND —
55435-06010-E0 note Panel, Instrument Panel Finish, End RH
1998-06 → 2001-07 ended
MCV20,SXV20 —
55435-06010-E0 note Panel, Instrument Panel Finish, End RH
2002-07 → 2002-12 ended
ACV20,MCV20 CND —
55438A — Retainer, Instrument Panel Finish Panel, NO.2
55438-AA010 Retainer, Instrument Panel Finish Panel, NO.2
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55438-AA010 Retainer, Instrument Panel Finish Panel, NO.2
2002-07 → 2002-12 ended
ACV20,MCV20 —
55444A — Spring, Instrument Panel Box
55444-AA020 Spring, Instrument Panel Box
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55444-AA020 Spring, Instrument Panel Box
2002-07 → 2002-12 ended
ACV20,MCV20 —
55450B — Box Assy, Coin
55450-AA011-A0 note Box Assy, Coin
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55450-AA011-B1 note Box Assy, Coin
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55458A — Cap, Instrument Panel Safety Pad
55458-AC010-A0 note Cap, Instrument Panel Safety Pad
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55458-AC010-B1 note Cap, Instrument Panel Safety Pad
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55474D — Garnish, Instrument Panel Safety Pad
55474-06010 note Garnish, Instrument Panel Safety Pad
1998-06 → 2001-07 ended
MCV20,SXV20 —
55474-33030 note Garnish, Instrument Panel Safety Pad
1998-06 → 2001-07 ended
MCV20,SXV20 —
55474-AA020-C0 note Garnish, Instrument Panel Safety Pad
2001-07 → 2001-11 ended
ACV20,MCV20 USA —
55474-AA020-C0 note Garnish, Instrument Panel Safety Pad
2001-11 → 2002-12 ended
ACV20,MCV20 —
55474-AA030-E0 note Garnish, Instrument Panel Safety Pad
2001-07 → 2002-12 ended
ACV20,MCV20 —
55475A — Garnish, Instrument Cluster Finish Panel, NO.2
55475-06010 note Garnish, Instrument Cluster Finish Panel, NO.2
1998-06 → 2001-07 ended
MCV20,SXV20 —
55475-33010 note Garnish, Instrument Cluster Finish Panel, NO.2
1998-06 → 2001-07 ended
MCV20,SXV20 —
55475-AA010-C0 note Garnish, Instrument Cluster Finish Panel, NO.2
2001-07 → 2001-11 ended
ACV20,MCV20 USA —
55475-AA010-C0 note Garnish, Instrument Cluster Finish Panel, NO.2
2001-11 → 2002-12 ended
ACV20,MCV20 —
55475-AA020-E0 note Garnish, Instrument Cluster Finish Panel, NO.2
2001-07 → 2002-12 ended
ACV20,MCV20 —
55510 — Door Assy, Glove Compartment
55506-AA010-A0 note Door Assy, Glove Compartment
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55506-AA010-B1 note Door Assy, Glove Compartment
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55521C — Cover, Stereo Opening
55520-AA010 Cover, Stereo Opening
1998-06 → 1999-08 ended
MCV20,SXV20 —
55521F — Cover, Stereo Opening, NO.2
55521-06010 Cover, Stereo Opening, NO.2
1998-06 → 1999-08 ended
MCV20,SXV20 —
55538A — Cover, Cooler Switch Hole
55538-06020-C0 note Cover, Cooler Switch Hole
1998-06 → 2000-12 ended
MCV20,SXV20 —
55538-06020-E0 note Cover, Cooler Switch Hole
1998-06 → 2000-12 ended
MCV20,SXV20 —
55538-AA010-C0 note Cover, Cooler Switch Hole
2000-12 → 2002-12 ended
ACV20,MCV20,SXV20 —
55538-AA010-E0 note Cover, Cooler Switch Hole
2000-12 → 2002-12 ended
ACV20,MCV20,SXV20 —
55546 — Cover, Luggage Compartment Opener Switch Hole
55546-30030 Cover, Luggage Compartment Opener Switch Hole
2001-07 → 2002-07 ended
ACV20,MCV20 —
55546-30030 Cover, Luggage Compartment Opener Switch Hole
2002-07 → 2002-12 ended
ACV20,MCV20 —
55565 — Handle, Glove Compartment Door Lock
55565-22020-A1 note Handle, Glove Compartment Door Lock
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55565-22020-B1 note Handle, Glove Compartment Door Lock
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55568B — Plate, Glove Compartment Door Finish
55568-AC010 Plate, Glove Compartment Door Finish
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55568-AC010 Plate, Glove Compartment Door Finish
2002-07 → 2002-12 ended
ACV20,MCV20 —
55569 — Cover, Glove Compartment Door Lock
55569-22030-A1 note Cover, Glove Compartment Door Lock
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55569-22030-B1 note Cover, Glove Compartment Door Lock
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55574 — Shaft, Glove Compartment Door Hinge
55574-01010 Shaft, Glove Compartment Door Hinge
2002-07 → 2002-12 ended
ACV20,MCV20 —
55574-01010 Shaft, Glove Compartment Door Hinge
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55601C — Tray Sub-assy, Instrument Panel Under
55601-06010 note Tray Sub-assy, Instrument Panel Under
1998-06 → 2002-12 ended
MCV20 ATM —
55601-33010 note Tray Sub-assy, Instrument Panel Under
1998-06 → 2002-12 ended
MCV20 ATM —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-AA010 Cover Sub-assy, Instrument Panel Under, NO.2
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55607-AA010 Cover Sub-assy, Instrument Panel Under, NO.2
2002-07 → 2002-12 ended
ACV20,MCV20 —
55650 — Register Assy, Instrument Panel, NO.1
55650-06020-A0 note Register Assy, Instrument Panel, NO.1
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55650-06020-B0 note Register Assy, Instrument Panel, NO.1
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55670 — Register Assy, Instrument Panel, NO.3
55670-06020-A0 note Register Assy, Instrument Panel, NO.3
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55670-06020-B0 note Register Assy, Instrument Panel, NO.3
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55961 — Nozzle, Side Defroster, NO.1
55961-06020-C0 note Nozzle, Side Defroster, NO.1
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55961-06020-E0 note Nozzle, Side Defroster, NO.1
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55962 — Nozzle, Side Defroster, NO.2
55962-06020-C0 note Nozzle, Side Defroster, NO.2
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55962-06020-E0 note Nozzle, Side Defroster, NO.2
1998-06 → 2002-12 ended
ACV20,MCV20,SXV20 —
55971B — Duct, Side Defroster Nozzle, NO.1
55971-06010 Duct, Side Defroster Nozzle, NO.1
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55971-06010 Duct, Side Defroster Nozzle, NO.1
2002-07 → 2002-12 ended
ACV20,MCV20 —
55972A — Duct, Side Defroster Nozzle, NO.2
55972-06010 Duct, Side Defroster Nozzle, NO.2
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 —
55972-06010 Duct, Side Defroster Nozzle, NO.2
2002-07 → 2002-12 ended
ACV20,MCV20 —
74599C — Label, Driver & Passenger Airbag Information
74599-06010 Label, Driver & Passenger Airbag Information
1998-06 → 2002-07 ended
ACV20,MCV20,SXV20 USA —
74599-06010 Label, Driver & Passenger Airbag Information
2002-07 → 2002-12 ended
ACV20,MCV20 USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
