Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07

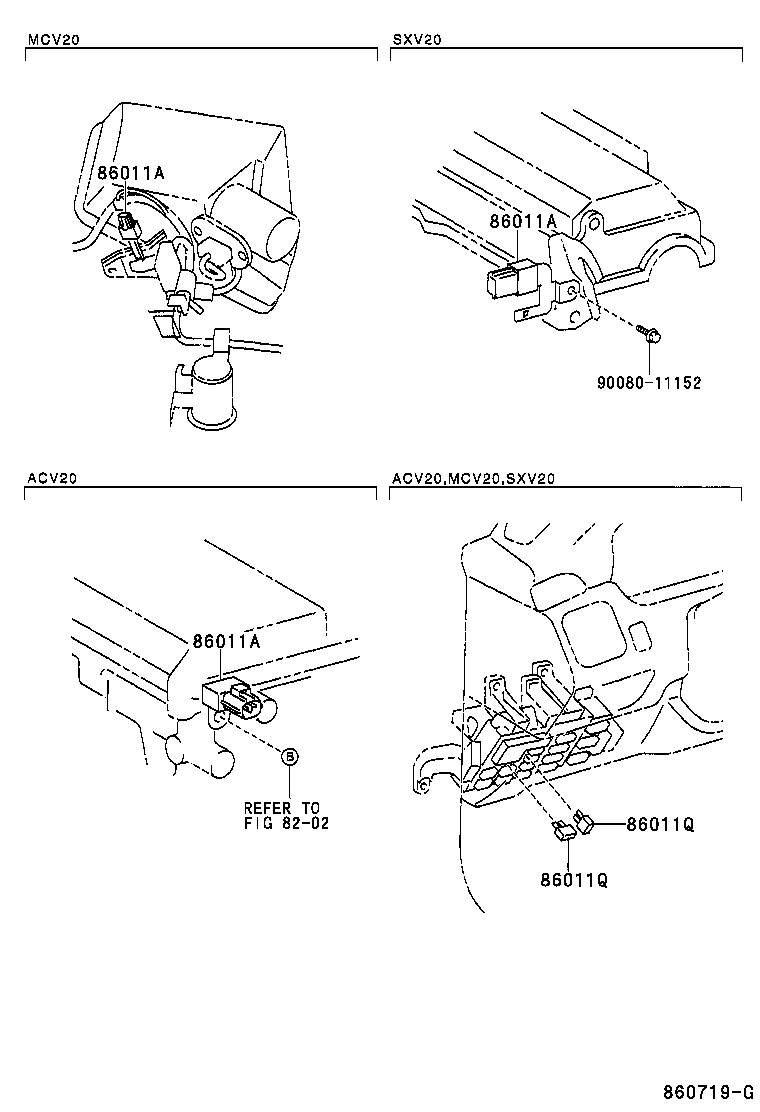

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04083 |
Condenser, Radio Setting
1998-06 → 2002-07
ended
|
MCV20 | — | |
| 90980-04083 |
Condenser, Radio Setting
2002-07 → 2002-12
ended
|
MCV20 | — | |
| 90980-04128 |
Condenser, Radio Setting
1998-06 → 2001-07
ended
|
SXV20 | — | |
| 90980-04157 |
Condenser, Radio Setting
2001-07 → 2002-12
ended
|
ACV20 | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04066 |
Condenser, Radio Setting
1998-06 → 2002-07
ended
|
ACV20,MCV20,SXV20 CP | — | |
| 90980-04066 |
Condenser, Radio Setting
2000-02 → 2002-12
ended
|
ACV20,MCV20,SXV20 CVT | — | |
| 90980-04066 |
Condenser, Radio Setting
2002-07 → 2002-12
ended
|
ACV20,MCV20 CP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
