Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07

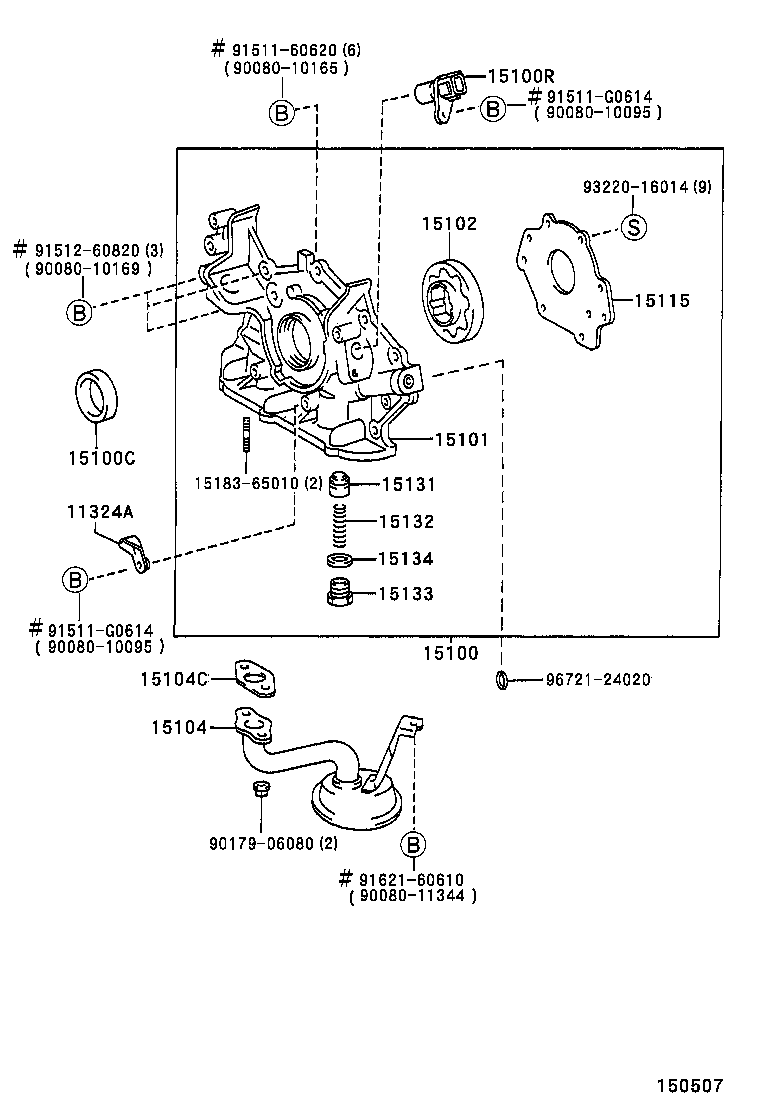

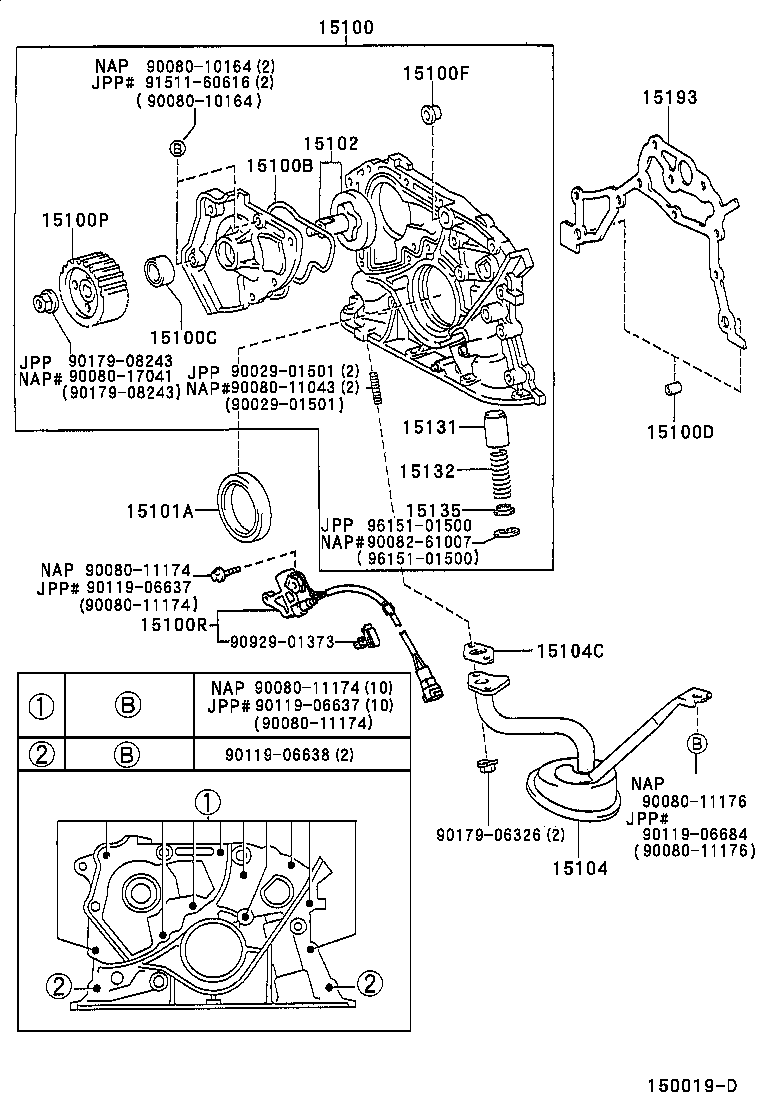

Engine Oil Pump
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11324A | Plate, Timing Belt |
| 15014 | Strainer Set, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100C | Seal(FOR OIL PUMP) |
| 15100D | Pin(FOR OIL PUMP SET) |
| 15100F | Bush (FOR OIL PUMP) |
| 15100P | Pulley, Oil Pump Drive Shaft |
| 15100R | Sensor, Crank Position |
| 15101 | Body Sub-assy, Oil Pump |
| 15101A | Seal(FOR CRANKSHAFT) |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15119 | Gasket, Oil Pump Cover |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15163 | Gear, Oil Pump Drive Shaft |
| 15193 | Gasket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
