Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

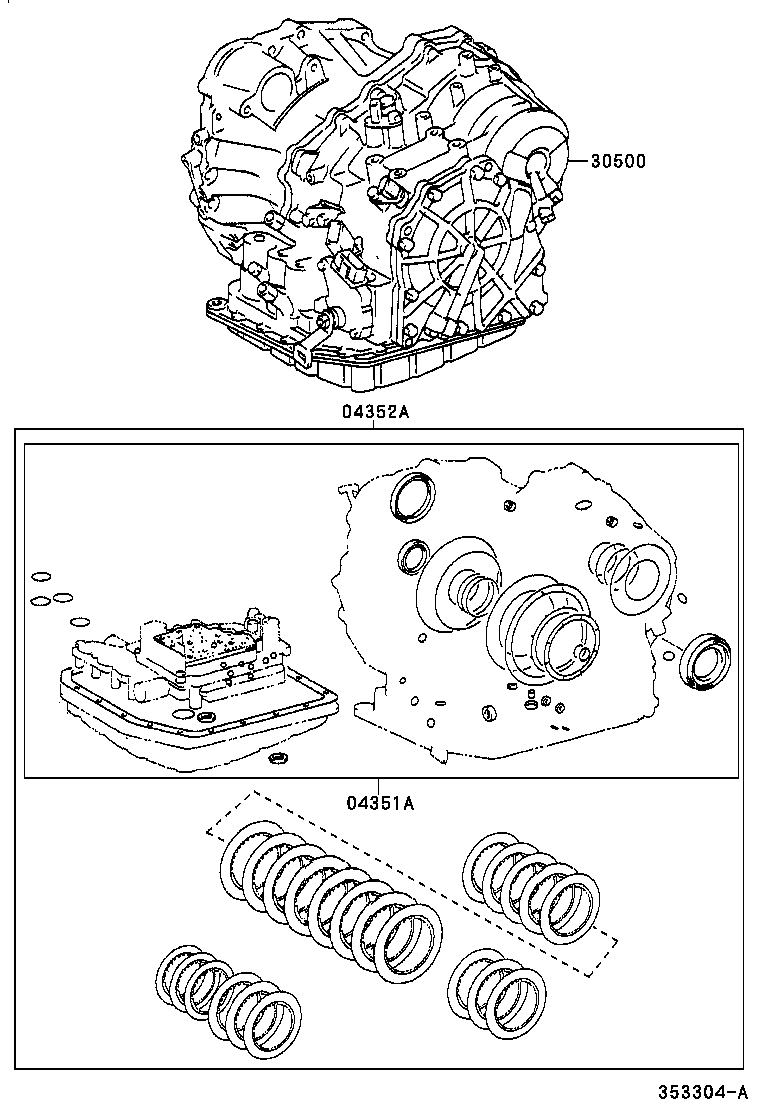

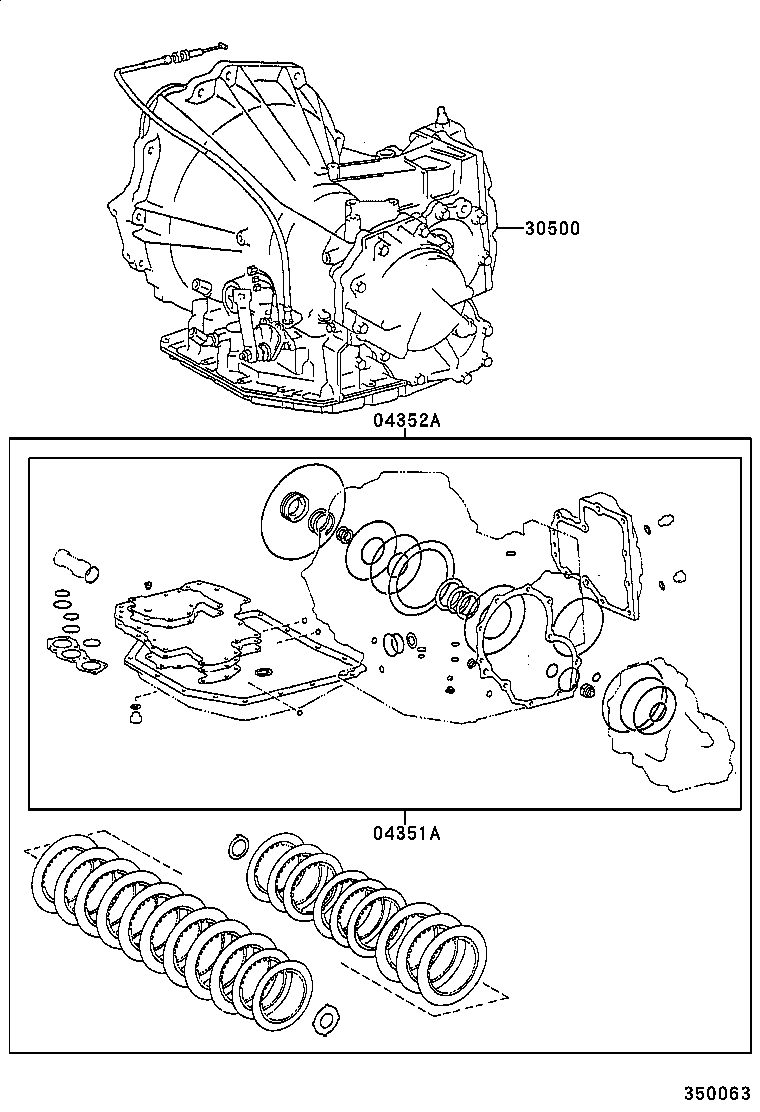

Figure 350062 350062 1998-06 → — Figure 350063 350063 1998-06 → 2001-07 Figure 353304A 353304A 2001-07 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04352A Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
