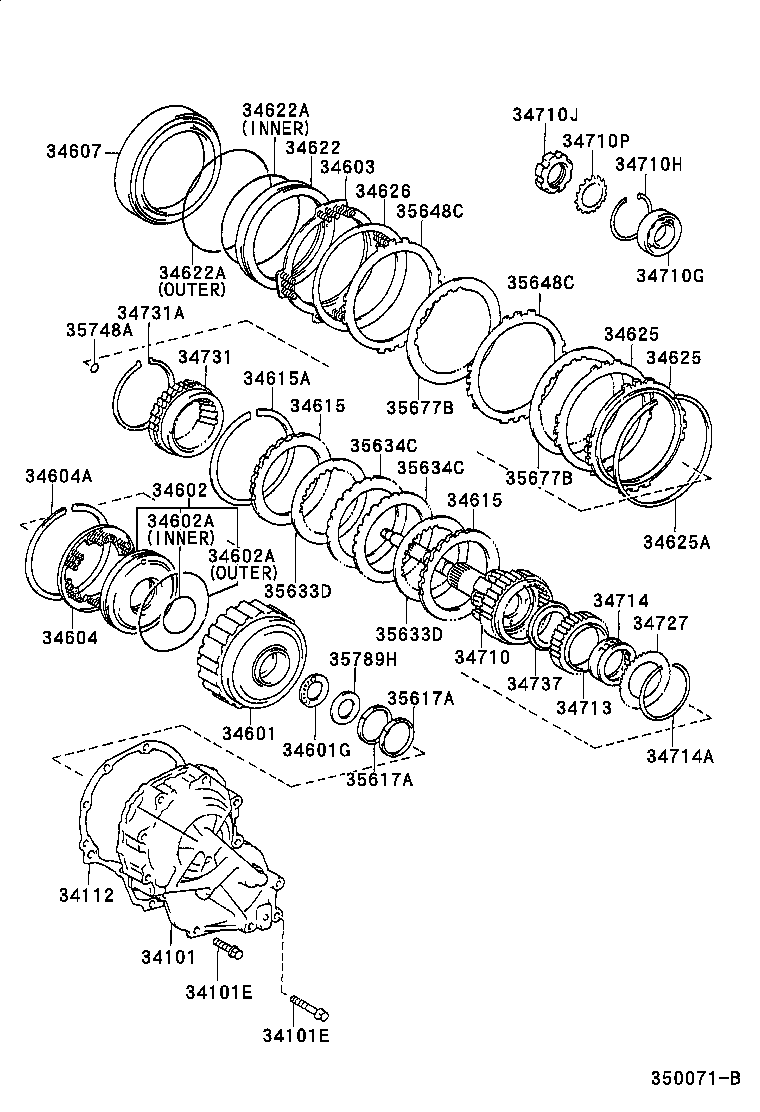

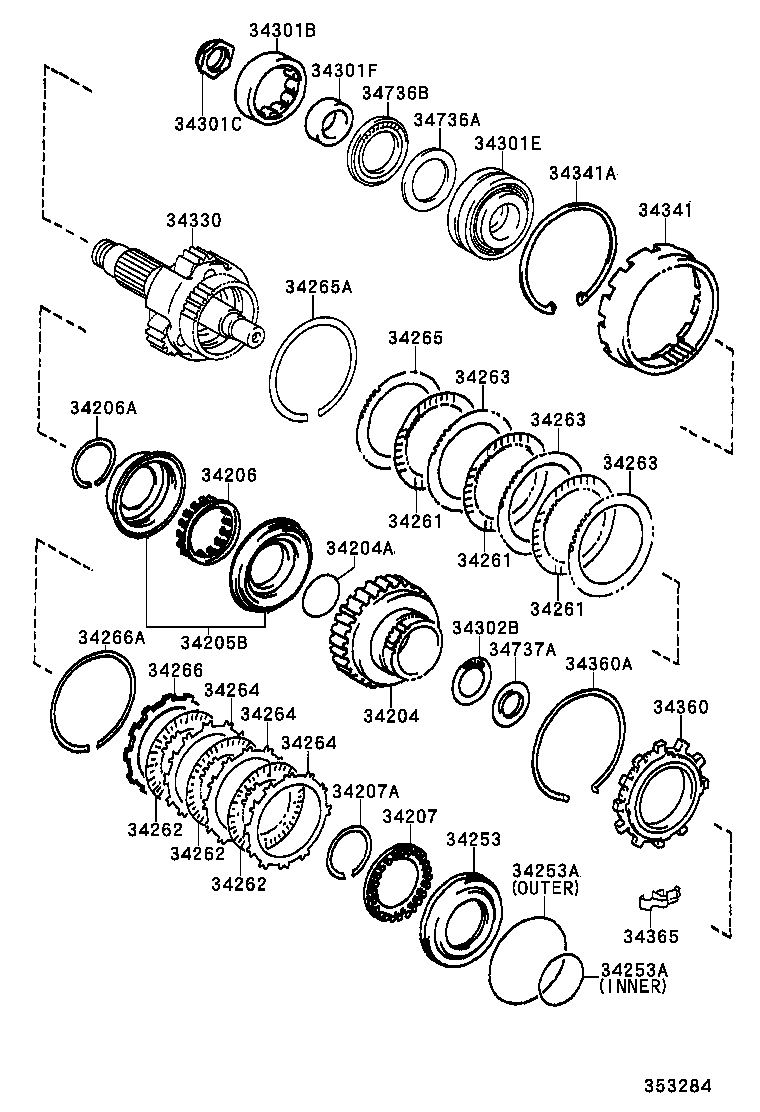

Overdrive Gear (ATM)
72 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 34101 | Case Sub-assy, Overdrive |
| 34101E | Bolt (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) |
| 34112 | Gasket, Overdrive Case |
| 34114 | Baffle, Overdrive Case Oil |
| 34114A | Bolt, W/Washer |
| 34204 | Drum Sub-assy, Underdrive Clutch |
| 34204A | Ring, O (FOR UNDERDRIVE CLUTCH DRUM) |
| 34205B | Piston Set, Underdrive Clutch |
| 34206 | Spring Sub-assy, Underdrive Clutch Return |
| 34206A | Ring, Shaft Snap (FOR UNDERDRIVE RETURN SPRING) |
| 34207 | Spring Sub-assy, Underdrive Brake Return |
| 34207A | Ring, Snap (FOR UNDERDRIVE BRAKE RETURN SPRING) |
| 34253 | Piston, Underdrive Brake |
| 34253A | Ring, O (FOR UNDERDRIVE BRAKE PISTON) |
| 34261 | Disc, Underdrive Clutch, NO.1 |
| 34262 | Disc, Underdrive Clutch, NO.2 |
| 34263 | Plate, Underdrive Clutch, NO.1 |
| 34264 | Plate, Underdrive Clutch, NO.2 |
| 34265 | Flange, Underdrive Clutch, NO.1 |
| 34265A | Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.1) |
| 34266 | Flange, Underdrive Clutch, NO.2 |
| 34266A | Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.2) |
| 34301B | Bearing, Cylindrical Roller, NO.1 (FOR UNDERDRIVE) |
| 34301C | Nut (FOR UNDERDRIVE INPUT SHAFT) |
| 34301E | Bearing, Tapered Roller (FOR UNDERDRIVE) |
| 34301F | Race, Cylindrical Roller Bearing, Inner |
| 34302B | Bearing, Needle Roller(FOR UNDERDRIVE PLANETARY SUN GEAR) |
| 34330 | Gear Assy, Underdrive Planetary |
| 34341 | Gear, Underdrive Planetary Ring |
| 34341A | Ring, Hole Snap (FOR UNDERDRIVE PLANETARY RING) |
| 34360 | Clutch Assy, Underdrive 1 Way |
| 34360A | Ring, Shaft Snap (FOR UNDERDRIVE 1 WAY CLUTCH) |
| 34365 | Retainer, Outer Race |
| 34601 | Drum Sub-assy, Overdrive Direct Clutch |
| 34601G | Bearing,Thrust Needle Roller(FOR OVERDRIVE DIRECT CLUTCH) |
| 34602 | Piston Sub-assy, Overdrive Direct Clutch |
| 34602A | Ring, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) |
| 34603 | Spring Sub-assy, Overdrive Brake Return |
| 34603A | Ring, Hole Snap (FOR OVERDRIVE BRAKE RETURN SPRING) |
| 34604 | Spring Sub-assy, Overdrive Clutch Return |
| 34604A | Ring, Hole Snap (FOR OVERDRIVE CLUTCH RETURN SPRING) |
| 34607 | Drum Sub-assy, Overdrive Brake |
| 34615 | Flange, Overdrive Clutch |
| 34615A | Ring, Hole Snap (FOR OVERDRIVE CLUTCH FLANGE) |
| 34622 | Piston, Overdrive Brake |
| 34622A | Ring, O (FOR OVERDRIVE BRAKE PISTON) |
| 34625 | Flange, Overdrive Brake, NO.1 |
| 34625A | Ring, Hole Snap (FOR OVERDRIVE BRAKE FLANGE) |
| 34626 | Plate, Overdrive Brake Cushion |
| 34710 | Gear Assy, Overdrive Planetary |
| 34710D | Bearing, Thrust Needle Roller(FOR OVERDRIVE PLANETARY GEAR) |
| 34710G | Bearing, Radial Ball(FOR OVERDRIVE PLANETARY GEAR) |
| 34710H | Ring, Hole Snap(FOR OVERDRIVE PLANETARY GEAR BEARING) |
| 34710J | Nut(FOR OVERDRIVE PLANETARY GEAR) |
| 34710P | Washer(FOR OVERDRIVE PLANETARY GEAR) |
| 34713 | Race, 1 Way Clutch Outer (FOR OVERDRIVE) |
| 34714 | Clutch, 1 Way(FOR OVERDRIVE) |
| 34714A | Ring, Hole Snap(FOR 1 WAY CLUTCH) |
| 34727 | Plate, Retaining (FOR OVERDRIVE) |
| 34731 | Gear, Overdrive Planetary Ring |
| 34731A | Ring, Hole Snap (FOR OVERDRIVE PLANETARY RING GEAR) |
| 34736A | Race, Thrust Bearing Underdrive, NO.2 |
| 34736B | Bearing, Thrust Needle Roller |
| 34737 | Washer, Overdrive Planetary Gear Thrust, NO.3 |
| 34737A | Race, Thrust Bearing Underdrive, NO.3 |
| 35617A | Ring, Clutch Drum Oil Seal (FOR OVERDRIVE) |
| 35633D | Disc, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35634C | Plate, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35648C | Plate, Clutch (FOR OVERDRIVE BRAKE) |
| 35677B | Disc, Clutch (FOR OVERDRIVE BRAKE) |
| 35748A | Ring, Intermediate Shaft Oil Seal (FOR OVERDRIVE) |
| 35789H | Race, Thrust Bearing (FOR OVERDRIVE CASE) |
