Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

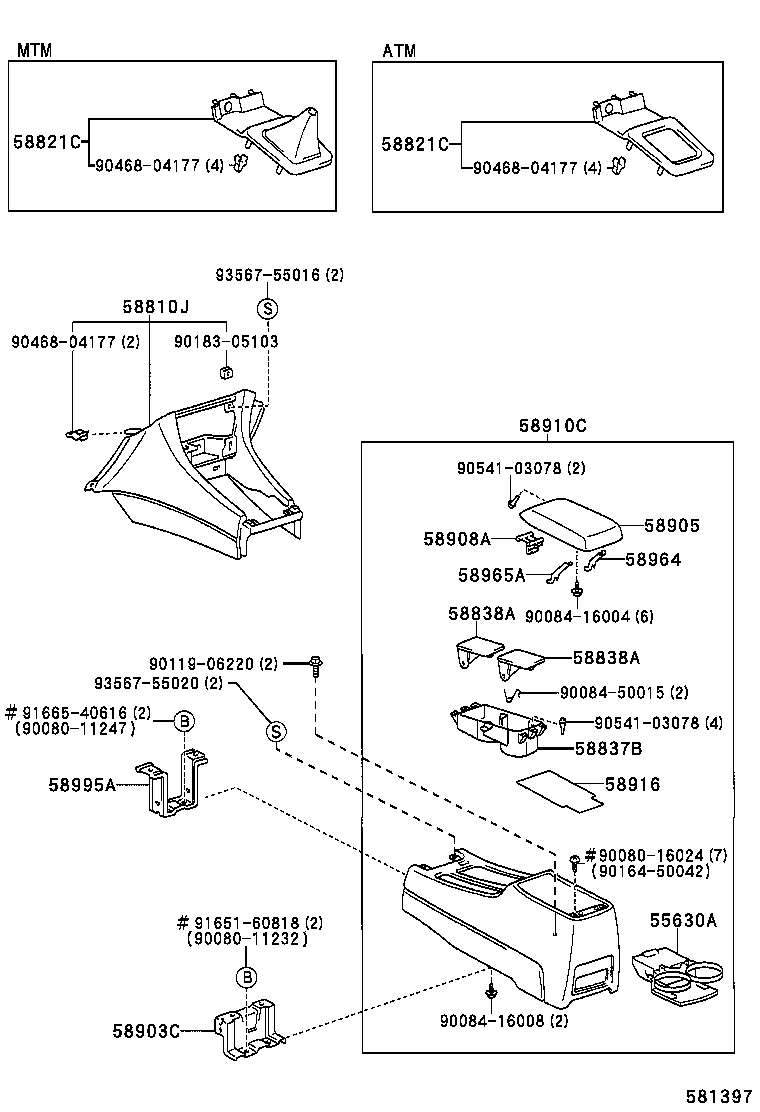

Figure 580866F 580866F 1998-06 → 2001-07 Figure 581397 581397 2001-07 → —

Part groups

PNCDescription
55630A Holder, Rear Console Box, Cup
58810J Box Assy, Console
58815A Carpet, Console Box
58821C Panel, Console, Upper
58837B Box, Console Cup Holder
58838A Door, Console Cup Holder Box
58903C Bracket, Console Box Mounting, NO.2
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
