Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

127 part groups · 2 illustrations

Illustrations

610825E 1998-06 → —

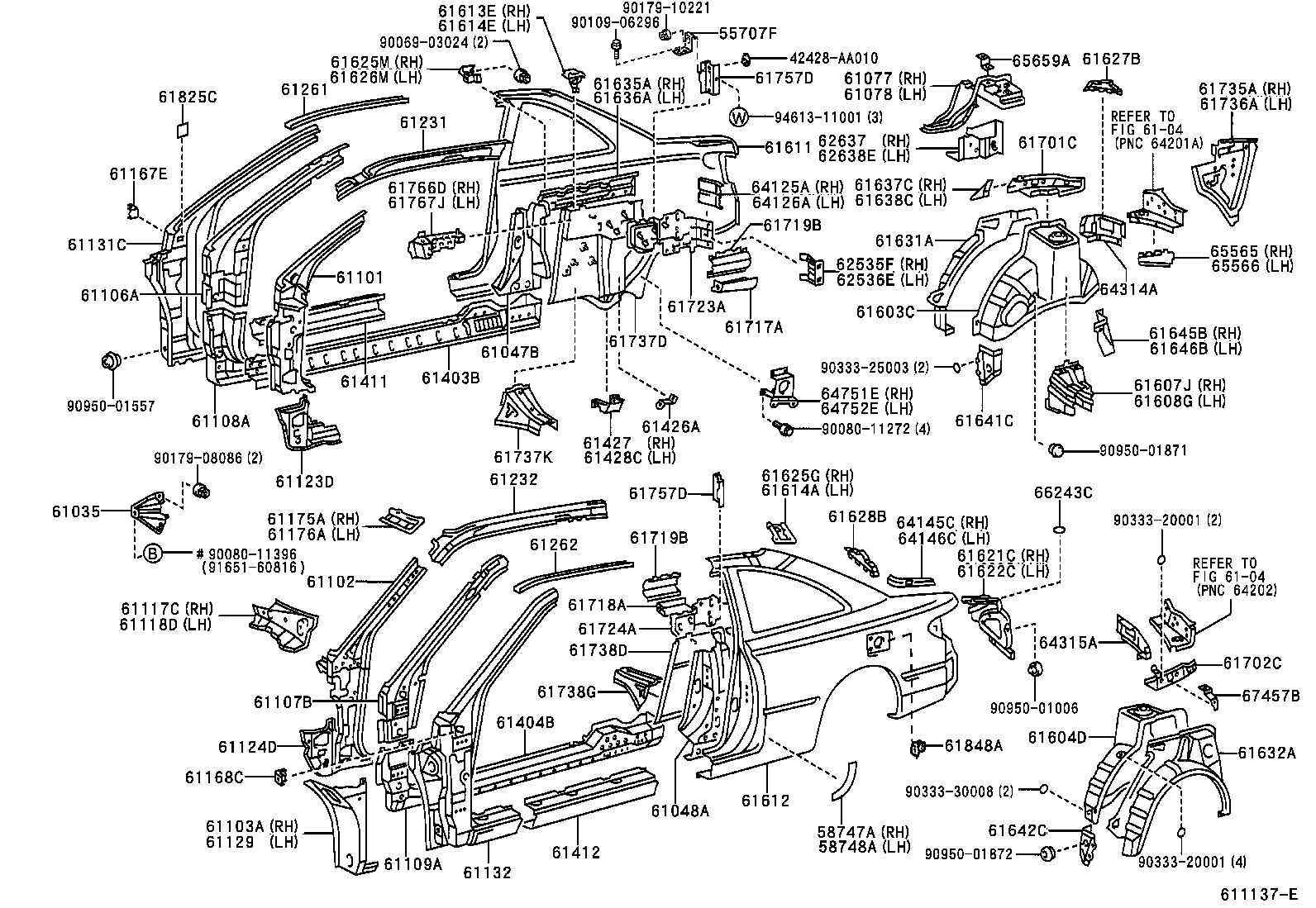

611137E 2000-02 → —

Part groups

PNC	Description
55707F	Bracket Sub-assy, Relay Mounting
58747A	Protector, Quarter Panel, Rear RH
58748A	Protector, Quarter Panel, Rear LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61047B	Reinforcement Sub-assy, Center Body Pillar, Center RH
61048A	Reinforcement Sub-assy, Center Body Pillar, Center LH
61077	Shield Sub-assy, Quarter Window, Rear RH
61078	Shield Sub-assy, Quarter Window, Rear LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61103A	Reinforcement Sub-assy, Cowl Side, RH
61106A	Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B	Reinforce Sub-assy, Front Body Pillar, Upper LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61117C	Gusset, Side Panel TO Cowl, RH
61118D	Gusset, Side Panel TO Cowl, LH
61123D	Panel, Cowl Side, Inner RH
61124D	Panel, Cowl Side, Inner LH
61129	Reinforcement, Cowl Side Panel, LH
61131C	Pillar, Front Body, Outer RH
61132	Pillar, Front Body, Upper Outer LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61167E	Bracket, NO.6 Pillar Outer
61168C	Bracket, NO.6 Pillar Outer
61175A	Reinforcement, Front Pillar, Upper Outer NO.2 RH
61176A	Reinforcement, Front Body Pillar, Inner NO.2 LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61403B	Rail Sub-assy, NO.6 Lower Outer, RH
61404B	Rail Sub-assy, NO.6 Lower Outer, LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61418A	Reinforcement, Rocker Panel, RH
61419A	Reinforcement, Rocker Panel, LH
61426A	Reinforcement, Rocker Panel, NO.4 LH
61427	Reinforcement, Rocker Panel, NO.5 RH
61428C	Reinforcement, Rocker Panel, NO.5 LH
61603C	Panel Sub-assy, Quarter Wheel House, RH
61604D	Panel Sub-assy, Quarter Wheel House, LH
61607J	Gusset Sub-assy, Quarter Wheel House, RH
61608G	Gusset Sub-assy, Quarter Wheel House, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614A	Extension, Quarter Panel, Rear LH
61614E	Panel, Quarter, Inner LH
61621C	Trough, Luggage Compartment Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61625G	Extension, Quarter Panel, Rear RH
61625M	Bracket, Quarter Panel Reinforcement,RH
61626M	Bracket, Quarter Panel Reinforcement, LH
61627B	Extension, Quarter Panel, Upper Rear RH
61628B	Extension, Quarter Panel, Upper Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61637C	Brace, Quarter Wheel House, NO.2 RH
61638C	Brace, Quarter Wheel House, NO.2 LH
61641C	Gusset, Quarter Wheel House, Front RH
61642C	Gusset, Quarter Wheel House, Front LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61671C	Palte, Quarter Panel, Upper NO.1
61701C	Panel Sub-assy, Roof Side, Outer RH
61702C	Panel Sub-assy, Roof Side, Outer LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61719B	Bracket, Roof Side, Inner
61723A	Reinforcement, Quarter Window Opening, RH NO.1
61724A	Reinforcement, Quarter Window Opening, LH NO.1
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61737K	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61738G	Reinforcement, Roof Side, Inner LH
61757D	Support, Pivot Mounting, RH
61766D	Reinforce, Belt Anchor TO Quarter, Inner NO.1 RH
61767J	Reinforce, Belt Anchor TO Quarter, Inner NO.1 LH
61824	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61825C	Pad, Noise Shutter, NO.2
61848A	Retainer, Quarter Panel, LH
62165	Sheet, Front Body Pillar Lower, Outer RH
62535F	Bracket, Quarter Trim Panel, NO.2
62536E	Bracket, Quarter Trim Panel, NO.2 LH
62637	Sheet, Quarter Trim, Rear RH
62638E	Sheet, Quarter Trim, Rear LH
62939A	Silencer, Quarter Vent
64125A	Bracket, Upper Back Panel, RH
64126A	Bracket, Upper Back Panel, LH
64145C	Gusset, Back Panel, RH
64146C	Gusset, Back Panel, LH
64312	Bracket, Package Tray, RH
64313	Bracket, Package Tray, LH
64314A	Reinforcement, Package Tray Bracket, RH
64315A	Reinforcement, Package Tray Bracket, LH
64751E	Bracket, Speaker Setting, RH
64752E	Bracket, Speaker Setting, LH
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65659A	Bracket, Wheel House Shell Side
66243C	Protector, Rear Body, NO.1
67457B	Bracket, Quarter Rear Guide, Upr
67841C	Cover, Quarter Service Hole, RH
67842C	Cover, Quarter Service Hole, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
