Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07

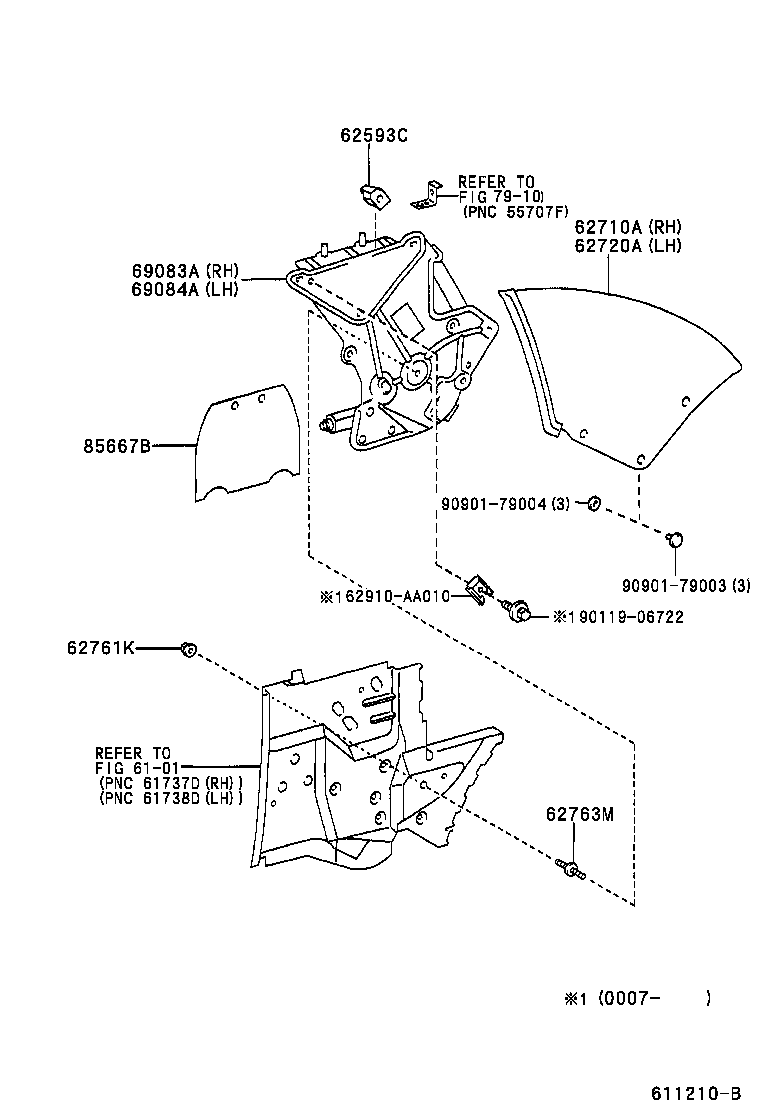

Quarter Window
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62593C | Stopper, Quarter Window Glass |
| 62710A | Window Assy, Quarter, RH |
| 62720A | Window Assy, Quarter, LH |
| 62761K | Retainer, Quarter Window Glass |
| 62763M | Retainer, Quarter Window Glass, Upper |
| 69083A | Guide Sub-assy, Quarter Window, RH |
| 69084A | Guide Sub-assy, Quarter Window, LH |
| 85667B | Cover, Motor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
