Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07
Roof Panel & Back Window Glass
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116A | Spacer, Windshield Glass |
| 62365C | Retainer, Convertible Roof Weatherstrip |
| 63102A | Panel Sub-assy, Windshield Header |

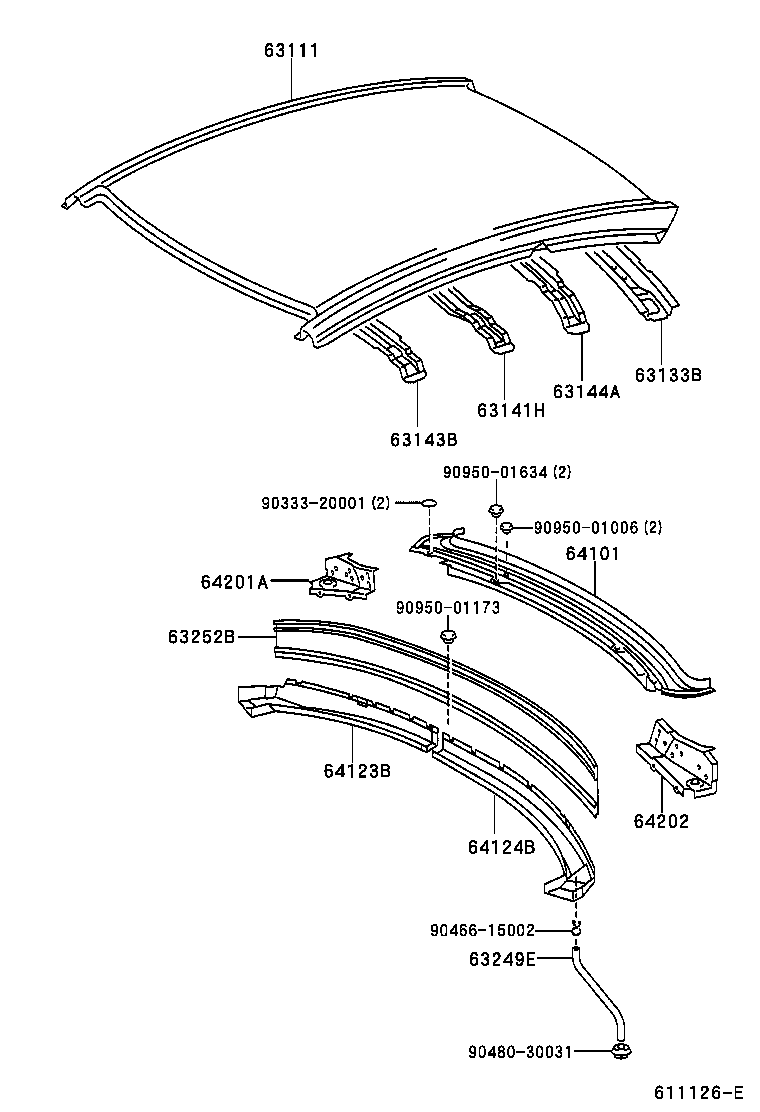

| 63111 | Panel, Roof |
| 63131 | Panel, Windshield Header, Outer |
| 63132 | Panel, Windshield Header, Inner |
| 63133B | Frame, Back Window |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |

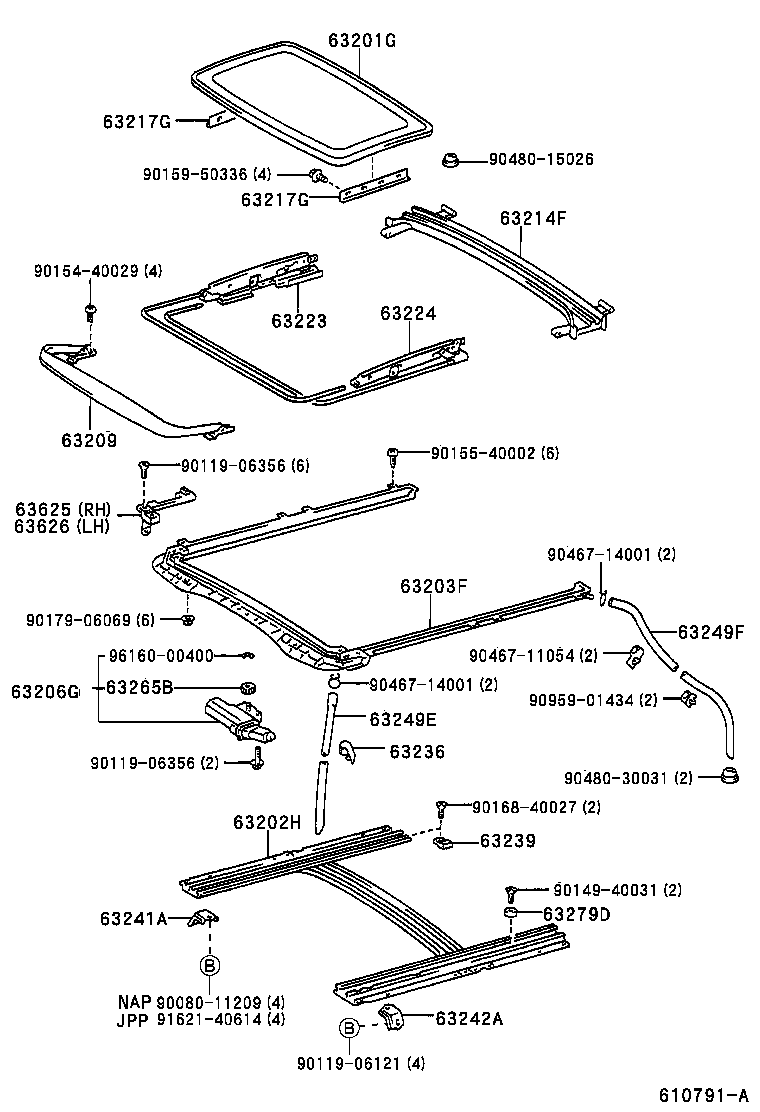

| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217P | Hook, Convertible Roof, RH |
| 63218Q | Hook, Convertible Roof, LH |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251F | Weatherstrip, Removable Roof, Front |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63265B | Gear, Sliding Roof Drive |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64123B | Panel, Back Corner, RH |
| 64124B | Panel, Back Corner, LH |
| 64165B | Cover, Upper Back Panel Hole, NO.1 |
| 64201A | Extension Sub-assy, Package Tray, RH |
| 64202 | Extension Sub-assy, Package Tray, LH |
| 64811 | Glass, Back Window |
| 75531E | Moulding, Windshield, Outside Upper |
| 75535C | Moulding, Windshield, Outside Lower RH |
| 75536C | Moulding, Windshield, Outside Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
