Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07

Inside Trim Board & Door Opening Trim Moulding

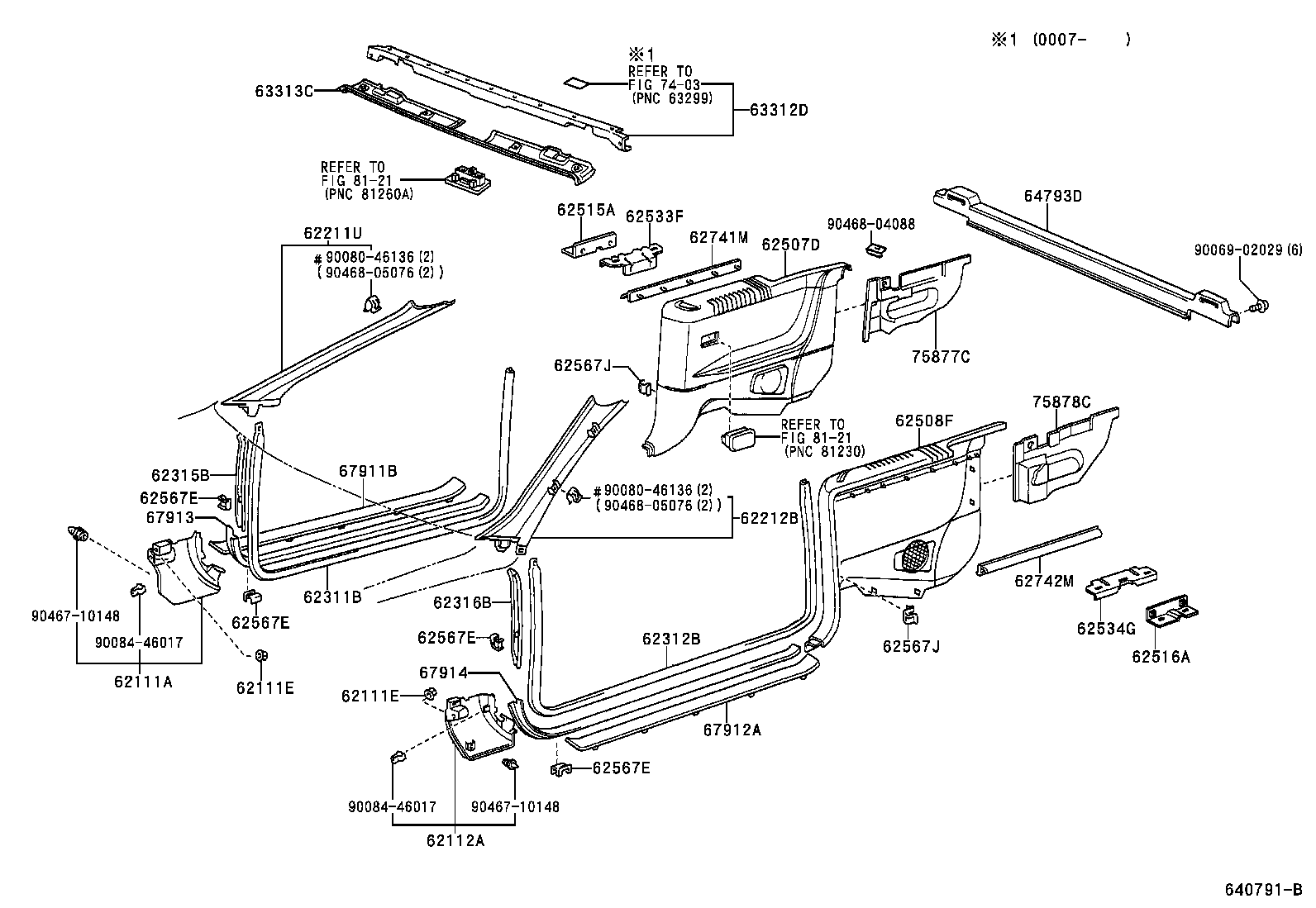

40 part groups · 2 illustrations

PNC	Description
62111A	Trim Sub-assy, Cowl Side, RH
62111B	Clip(FOR COWL SIDE TRIM)
62111E	Retainer, Cowl Side Trim
62112A	Trim Sub-assy, Cowl Side, LH
62211	Garnish, Front Pillar, RH
62211U	Garnish Assy, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62212B	Garnish Assy, Front Pillar, LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62315B	Cover, Front Door Opening Trim, RH
62316B	Cover, Front Door Opening Trim, LH
62381	Weatherstrip, Roof Side Rail, Front RH
62382	Weatherstrip, Roof Side Rail, Front LH
62470A	Garnish Assy, Roof Side, Inner RH
62471J	Clip (FOR ROOF SIDE GARNISH)
62480A	Garnish Assy, Roof Side, Inner LH
62507D	Panel Sub-assy, Quarter Trim, RH
62508F	Panel Sub-assy, Quarter Trim, LH
62510P	Panel Assy, Quarter Trim, Front RH
62515A	Base, Quarter Trim, RH
62516A	Base, Quarter Trim, LH
62520P	Panel Assy, Quarter Trim, Front LH
62533B	Bracket, Quarter Trim, RH
62533F	Bracket, Quarter Trim Panel, NO.1 RH
62534B	Bracket, Quarter Trim, LH
62534G	Bracket, Quarter Trim Panel, NO.1 LH
62567E	Clamp, Rocker Panel Inner Protector, NO.2
62567J	Clamp, Rocker Panel Inner Protector, NO.2
62741M	Weatherstrip, Quarter Window, RH
62742M	Weatherstrip, Quarter Window, LH
63312D	Headlining, Roof, NO.2
63313C	Headlining, Roof, NO.3
64793D	Retainer, Tarpaulin Storage Cover
67911B	Plate, Front Door Scuff, Outside, RH
67912A	Plate, Front Door Scuff, Outside LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
75877C	Cover, Quarter Opening End, RH
75878C	Cover, Quarter Opening End, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
