Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07

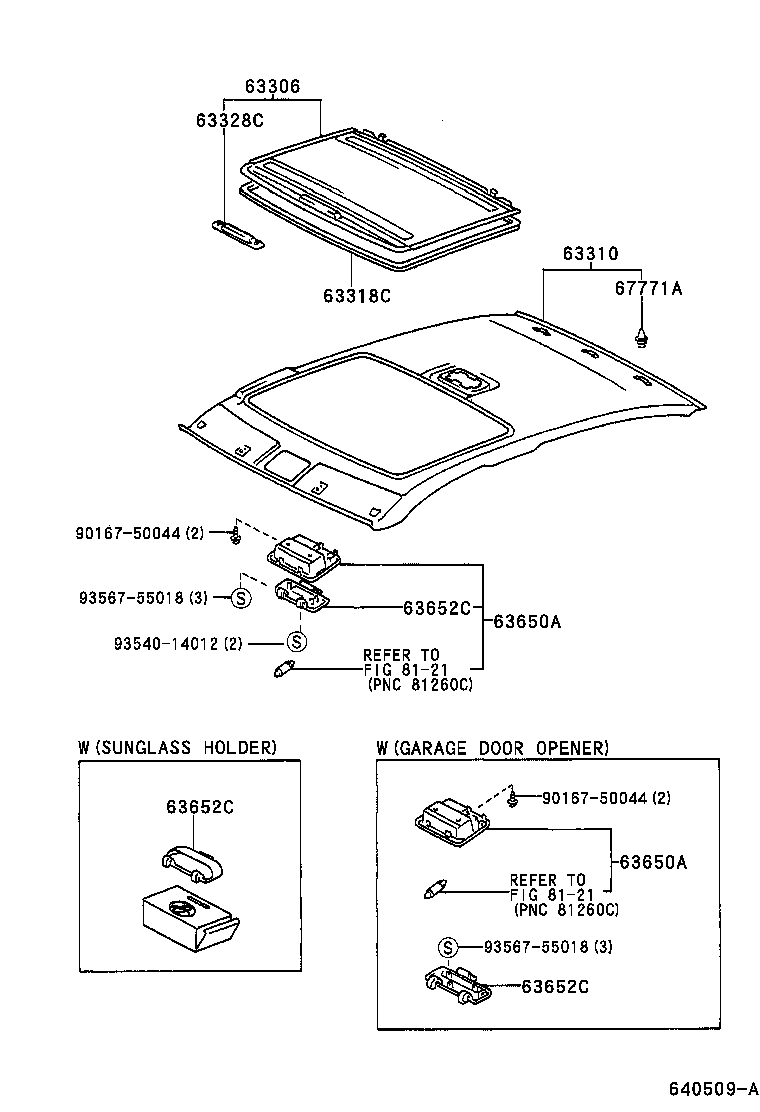

Roof Headlining & Silencer Pad
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63650A | Box Assy, Roof Console |
| 63652C | Cover, Roof Console Box |
| 67771A | Retainer, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
