Toyota Solara
1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States
Discontinued model
Data version 2003-07

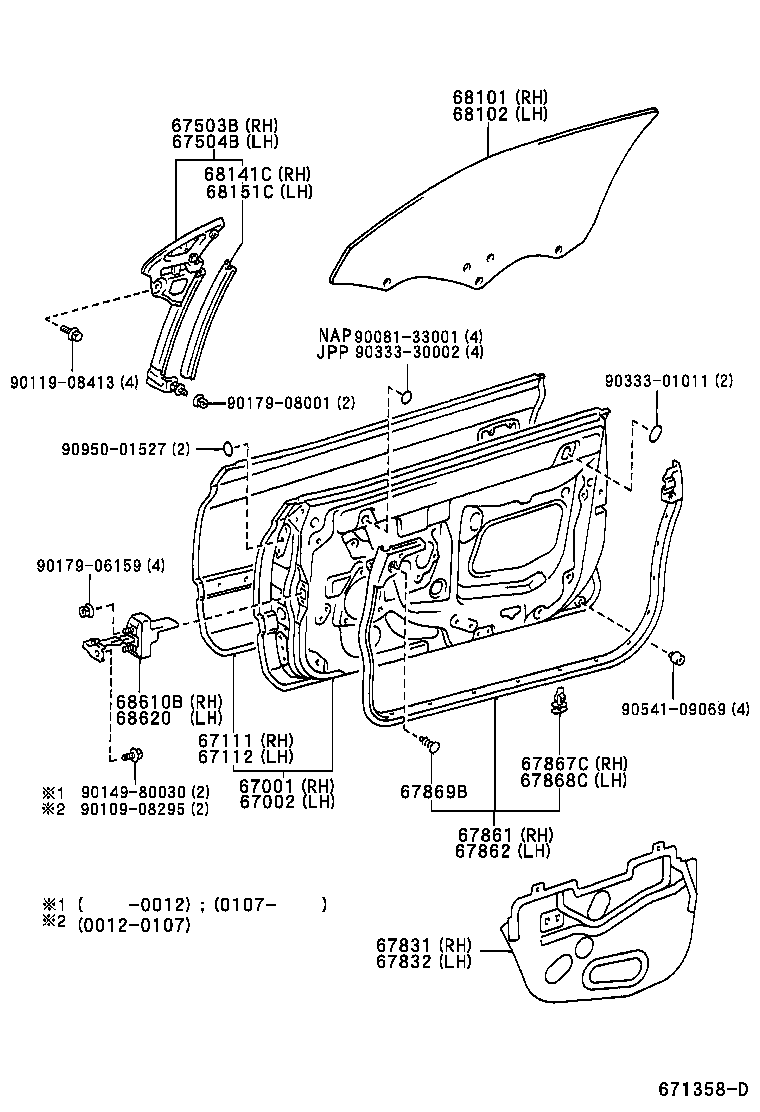

Front Door Panel & Glass
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67503B | Bracket Sub-assy, Front Door Mirror, RH |
| 67504B | Bracket Sub-assy, Front Door Mirror, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601G | Plug, Hole(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652B | Grille, Speaker Door, LH |
| 67783 | Cover, Front Door Trim, Center RH |
| 67784 | Cover, Front Door Trim, Center LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
