Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 2 illustrations

Illustrations

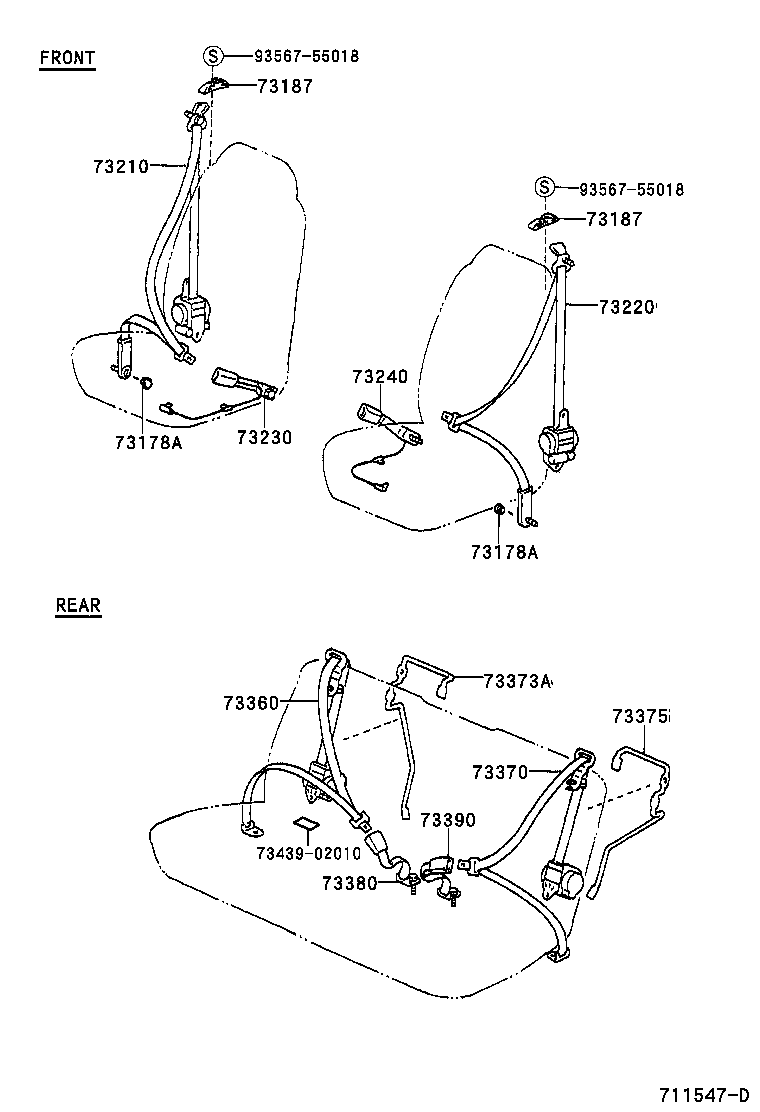

Figure 711108A 711108A 1998-06 → — Figure 711547D 711547D 2000-02 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73187 Guide, Front Seat Shoulder Belt
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373A Cover, Rear Seat Shoulder Belt, RH
73375 Cover, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
