Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

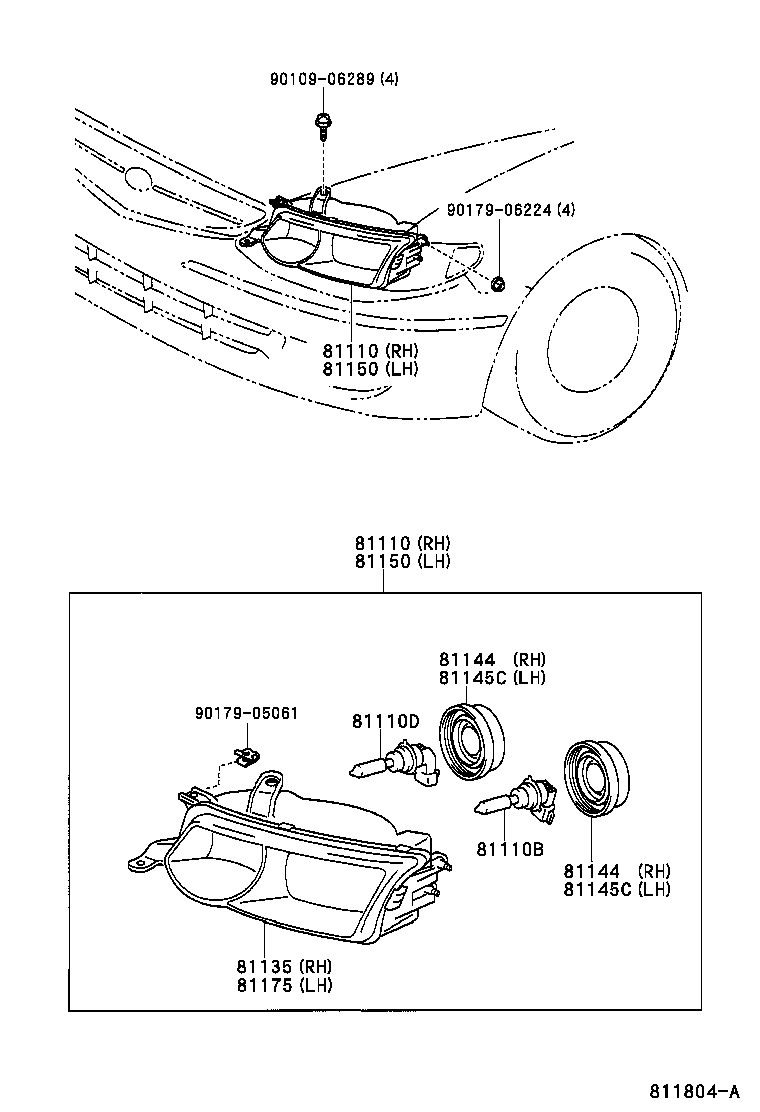

Figure 810903A 810903A 1998-06 → 2001-07 Figure 811804A 811804A 2001-07 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81145C Cover, Headlamp Socket, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
