Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 14 illustrations

Illustrations

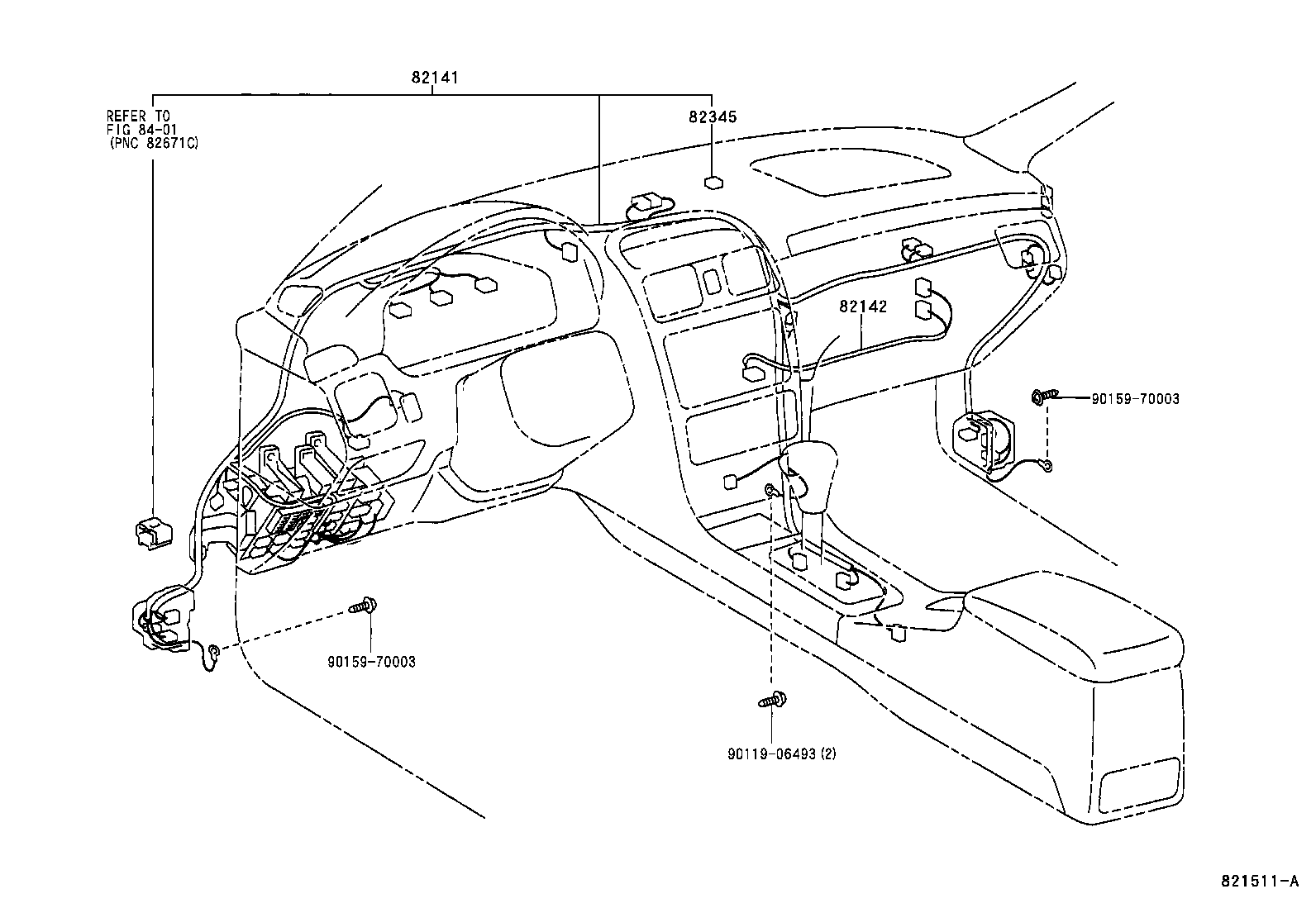

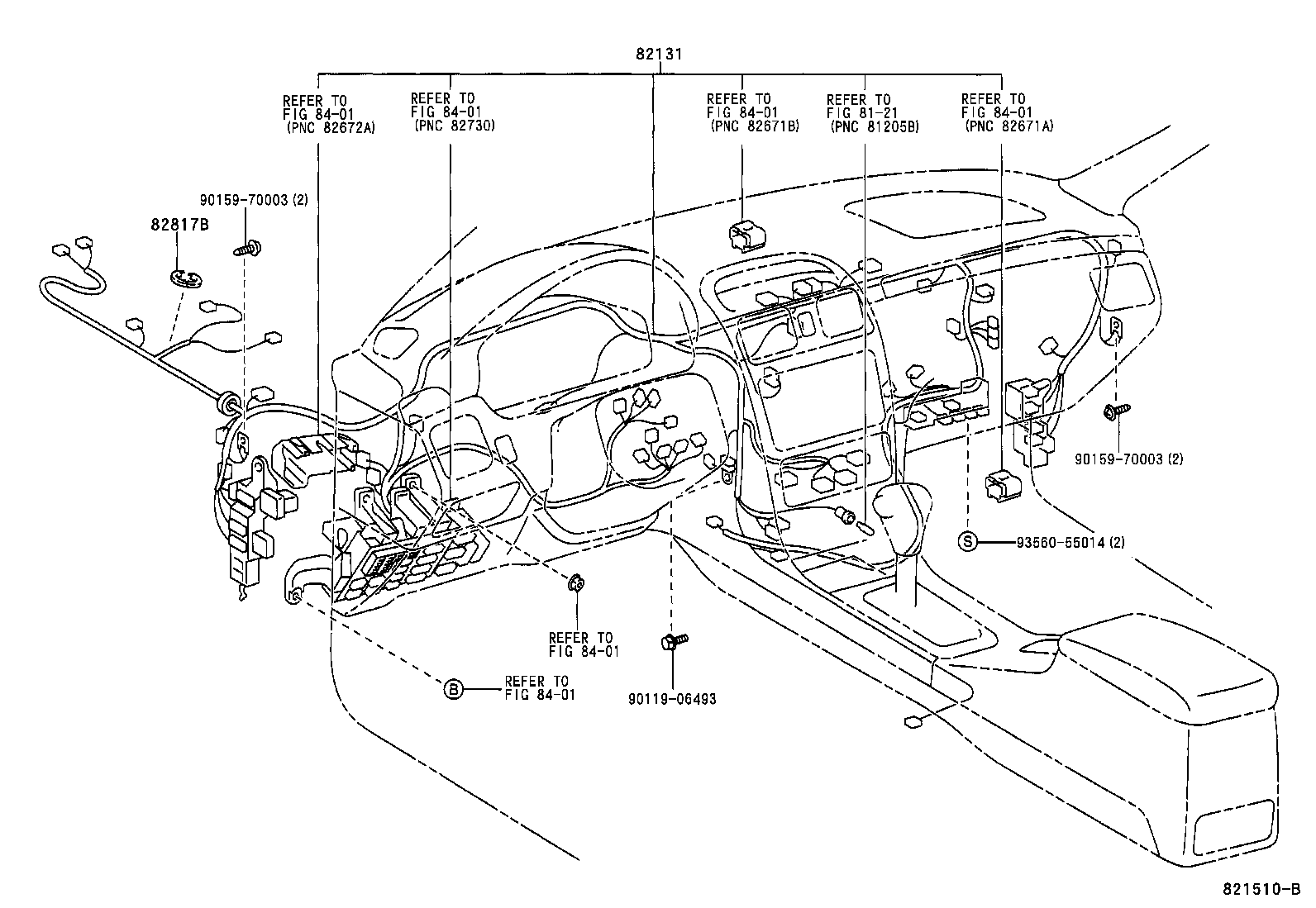

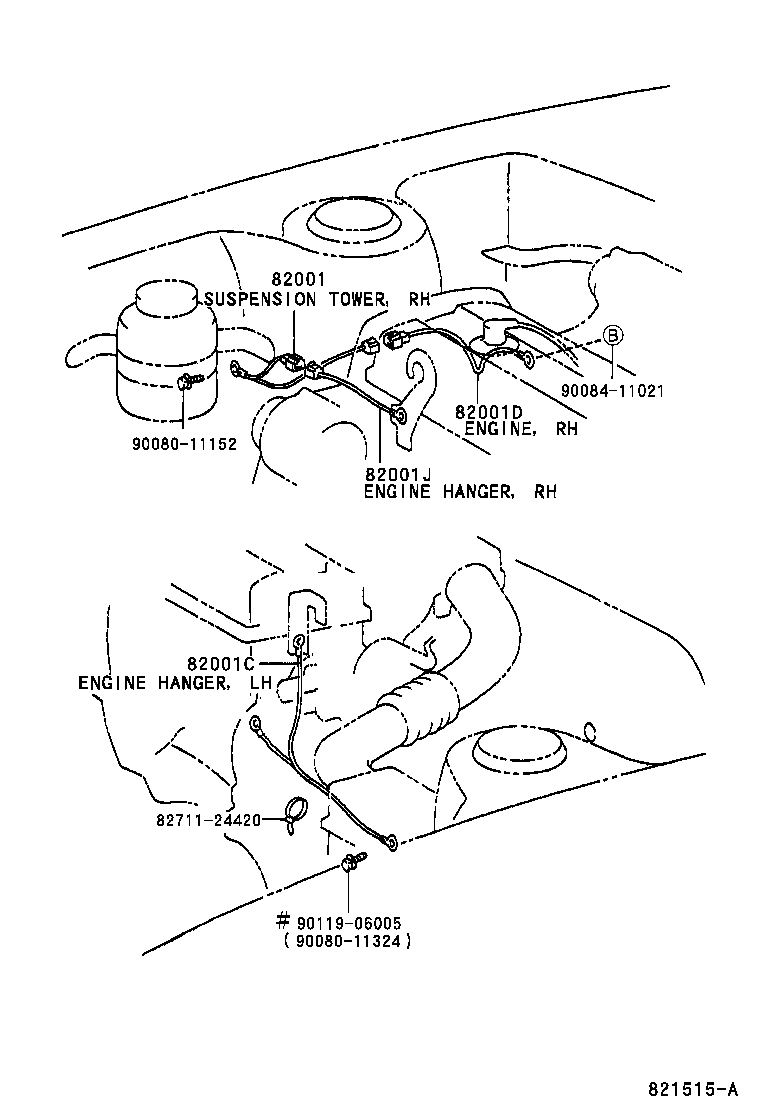

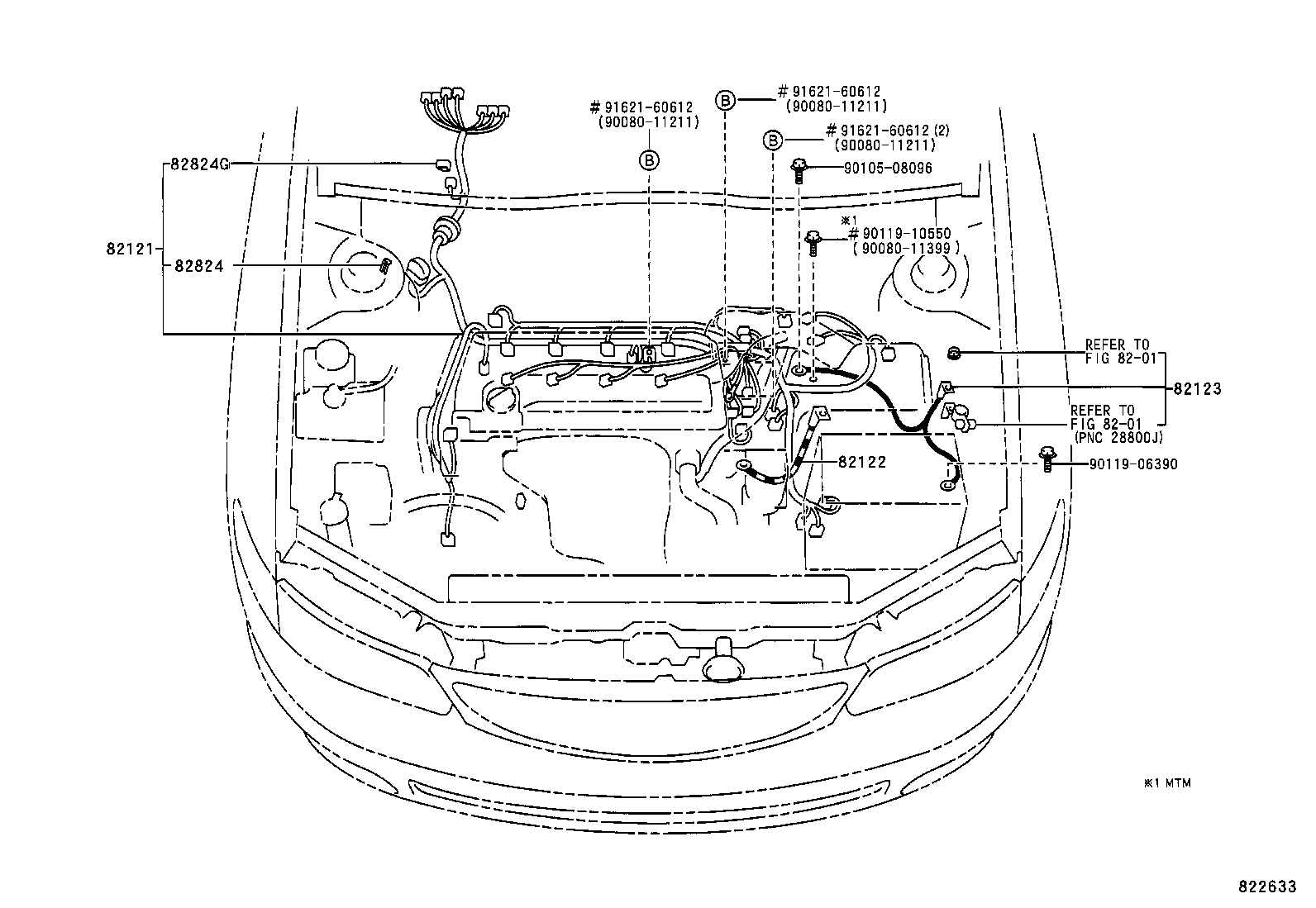

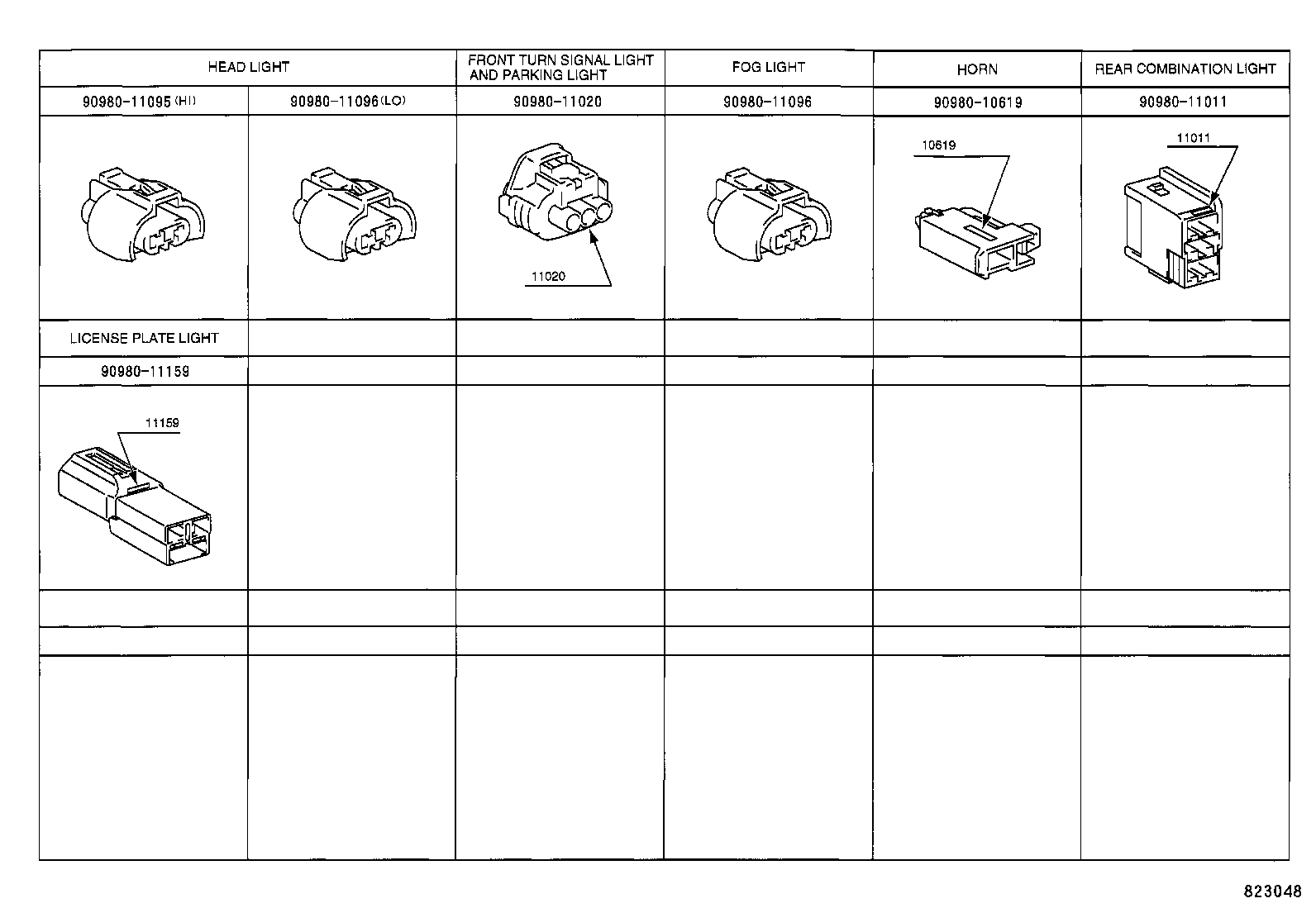

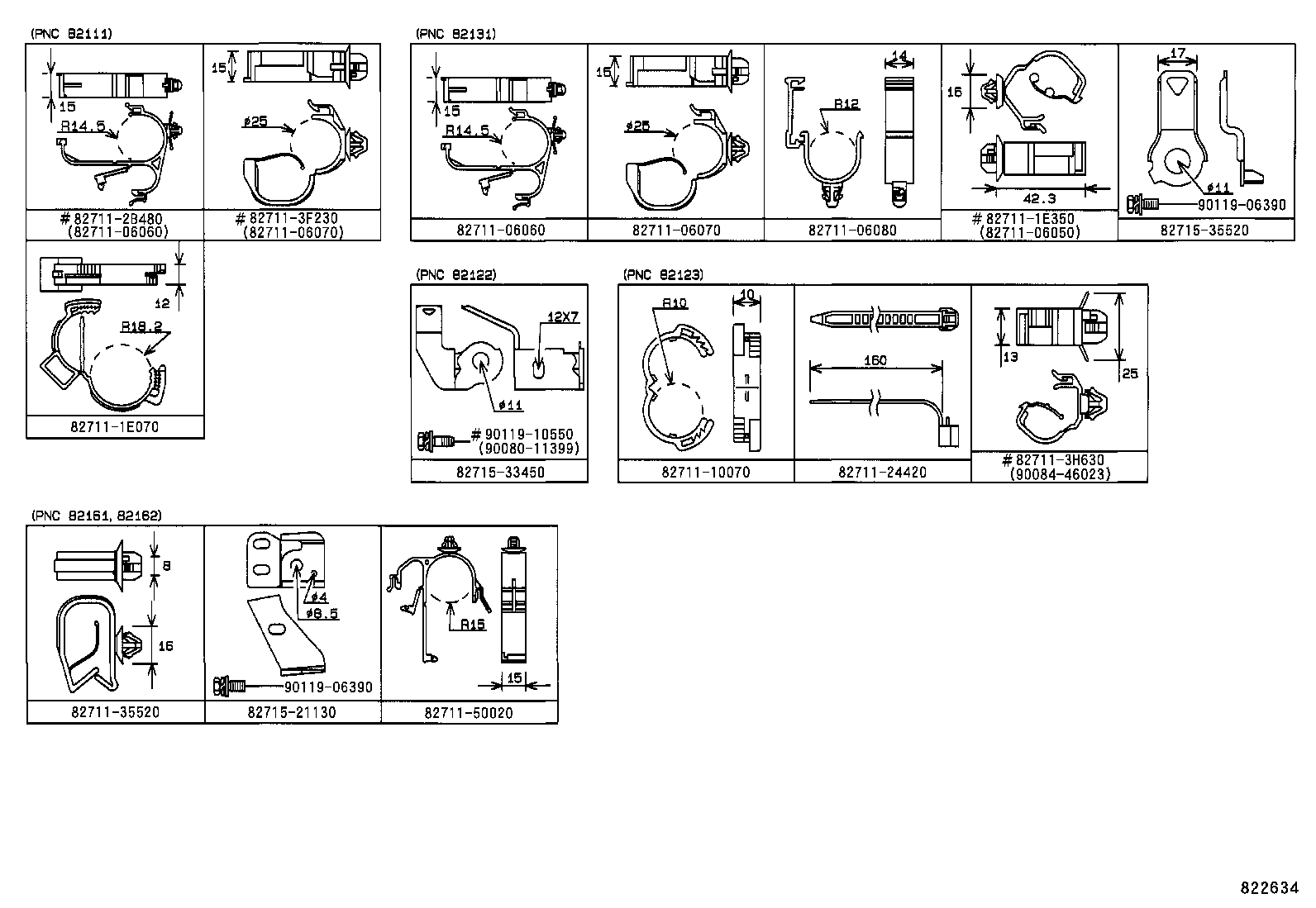

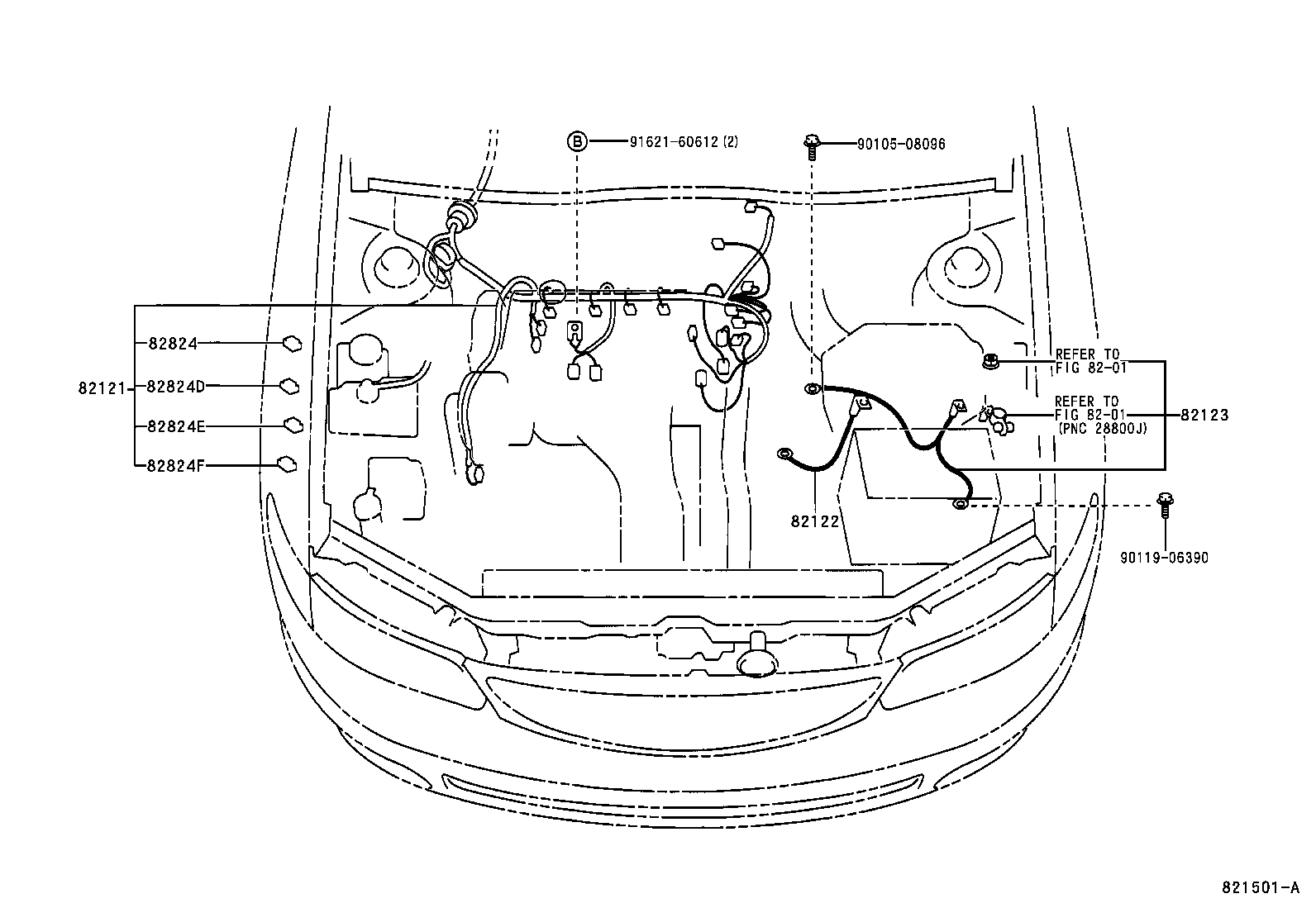

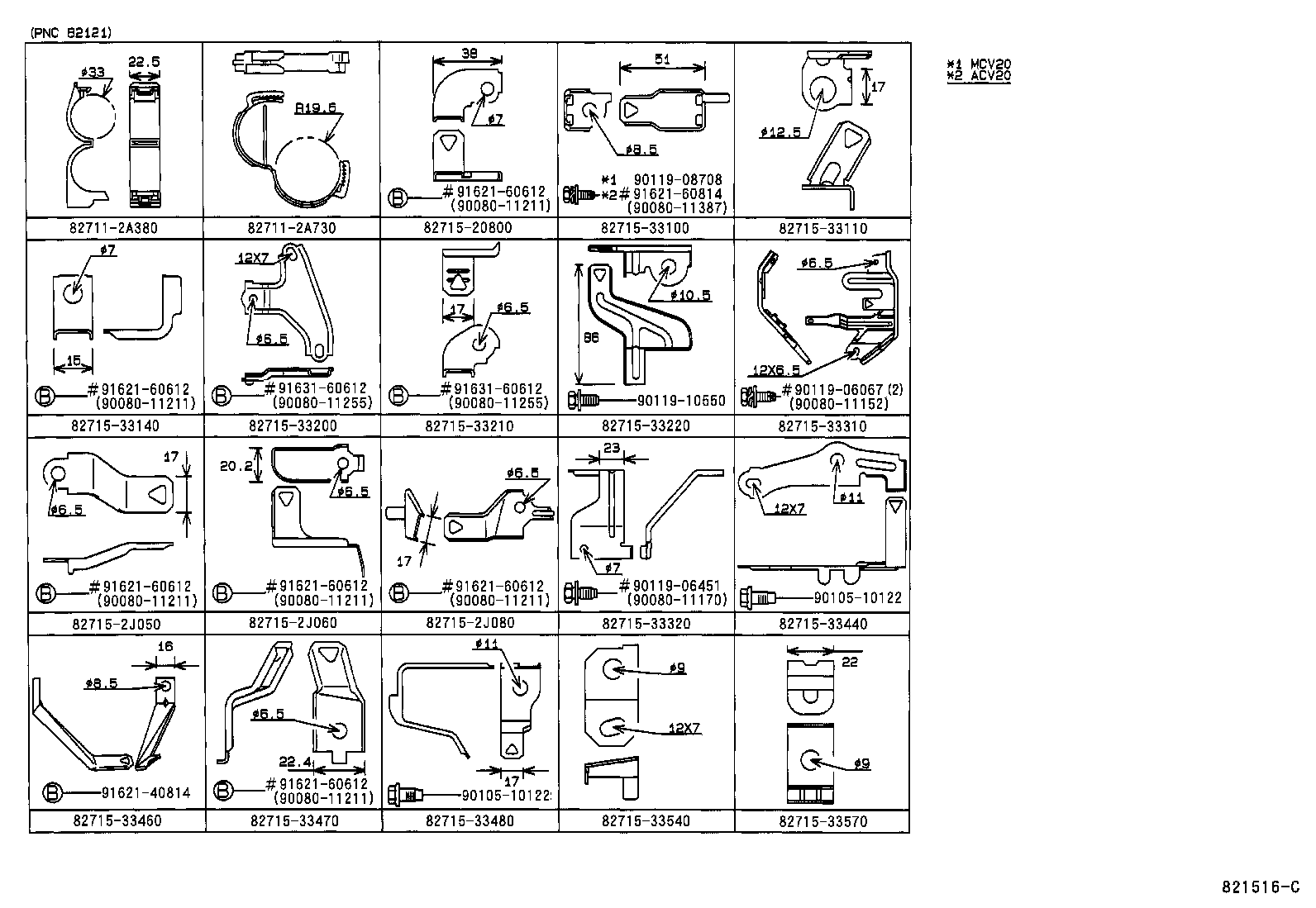

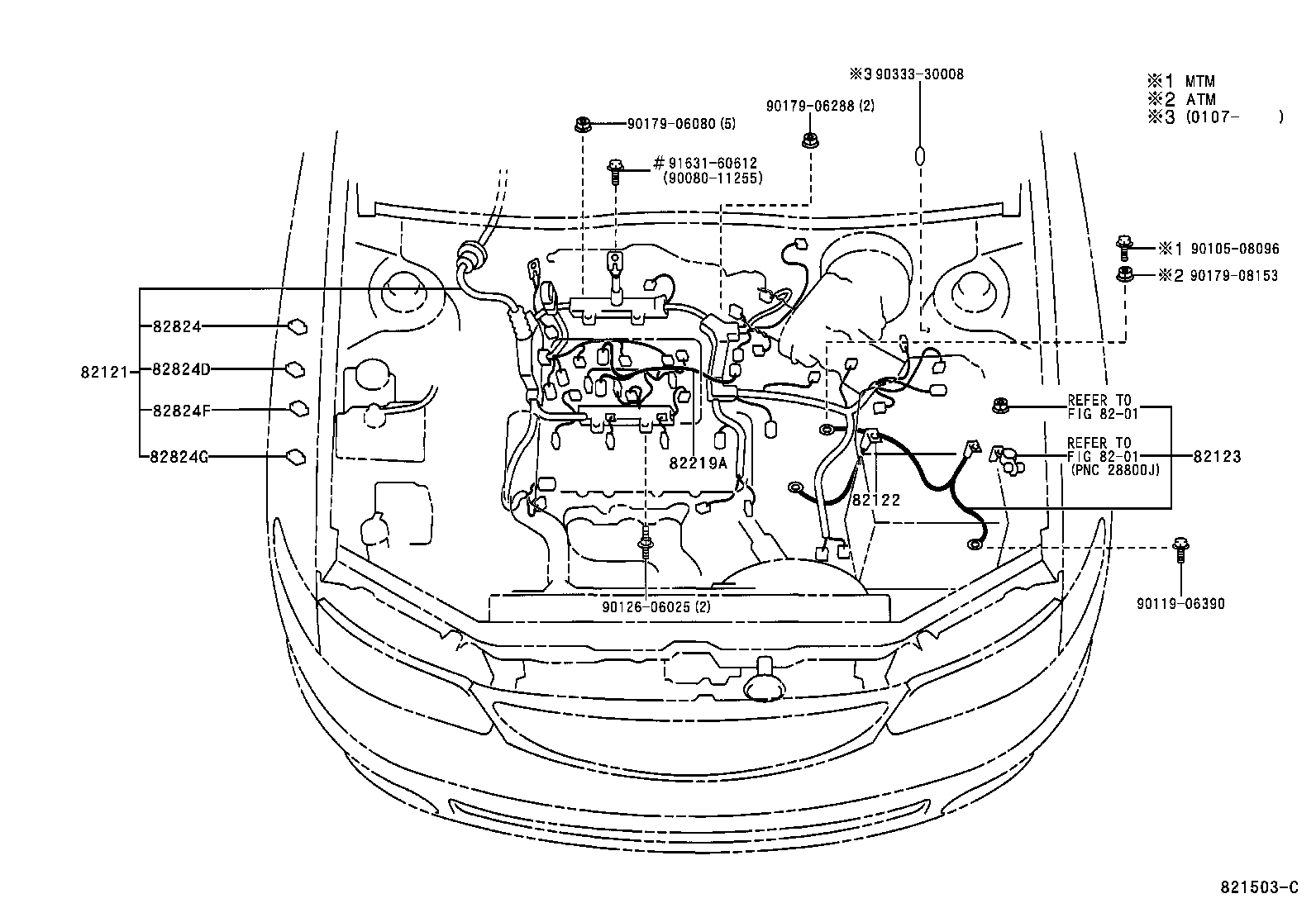

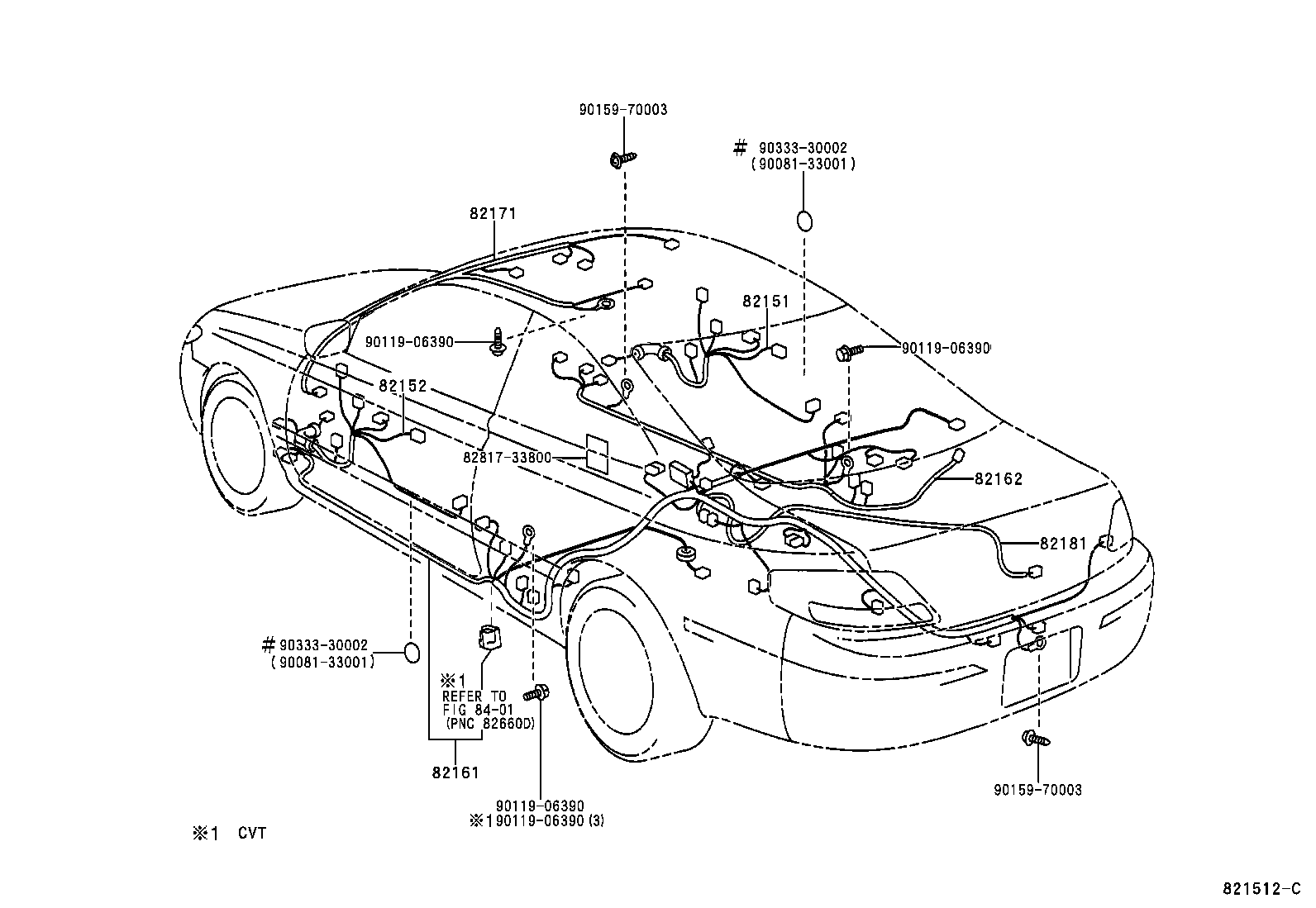

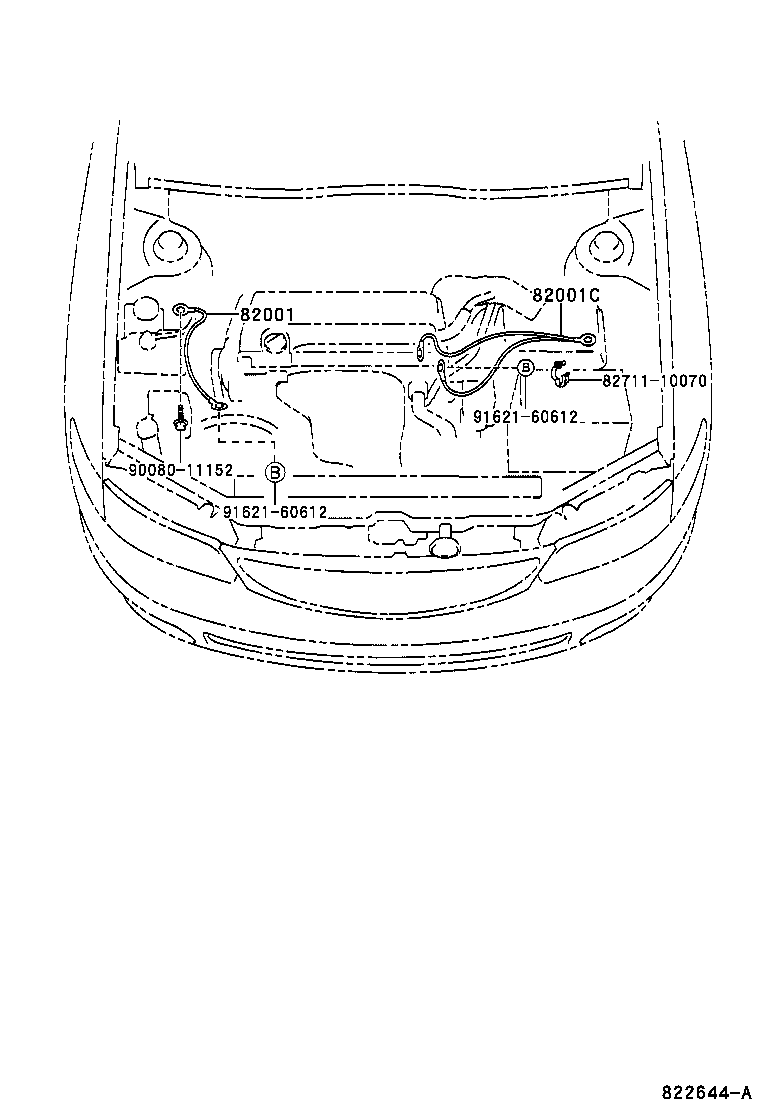

Figure 821502D 821502D 1998-06 → — Figure 821503C 821503C 1998-06 → — Figure 821501A 821501A 1998-06 → 2001-07 Figure 822633 822633 2001-07 → — Figure 821510B 821510B 1998-06 → — Figure 821511A 821511A 1998-06 → — Figure 821512C 821512C 1998-06 → — Figure 821513 821513 1998-06 → — Figure 821514A 821514A 1998-06 → — Figure 821515A 821515A 1998-06 → 2001-07 Figure 822644A 822644A 2001-07 → — Figure 821516C 821516C 1998-06 → — Figure 822634 822634 1998-06 → — Figure 823048 823048 1998-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82001J Cable, Bond, NO.5
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82219A Wire, Sensor
82241C Wire, Relay
82345 Diode
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
