Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 3 illustrations

Illustrations

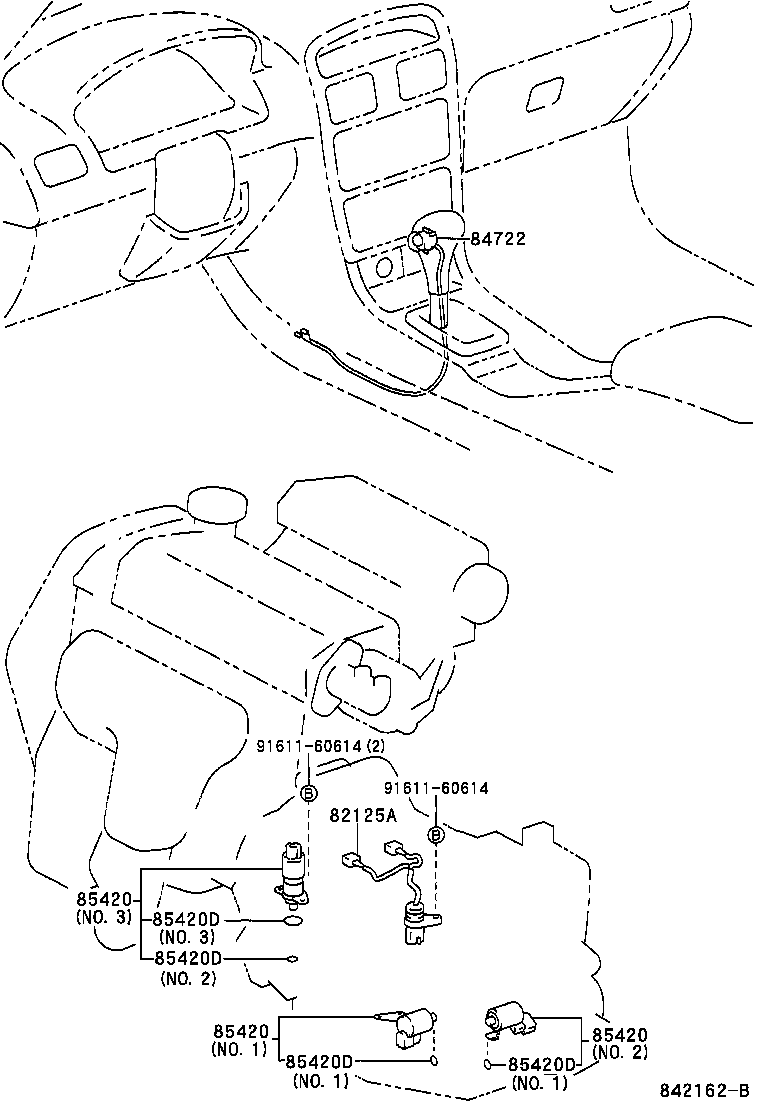

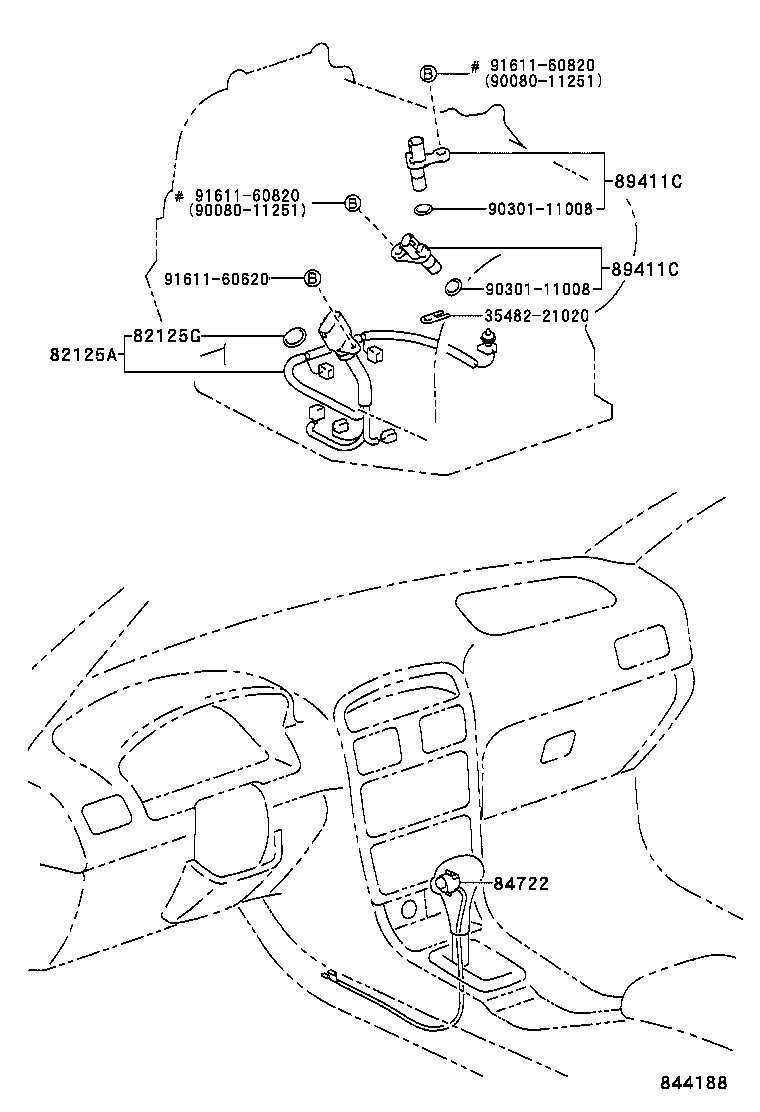

Figure 842161C 842161C 1998-06 → — Figure 842162B 842162B 1998-06 → 2001-07 Figure 844188 844188 2001-07 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
82821C Cover, Connector
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
