Toyota Solara

1998-06 → 2002-12 · chassis ACV20,MCV20,SXV20 · catalogue 286410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 5 illustrations

Illustrations

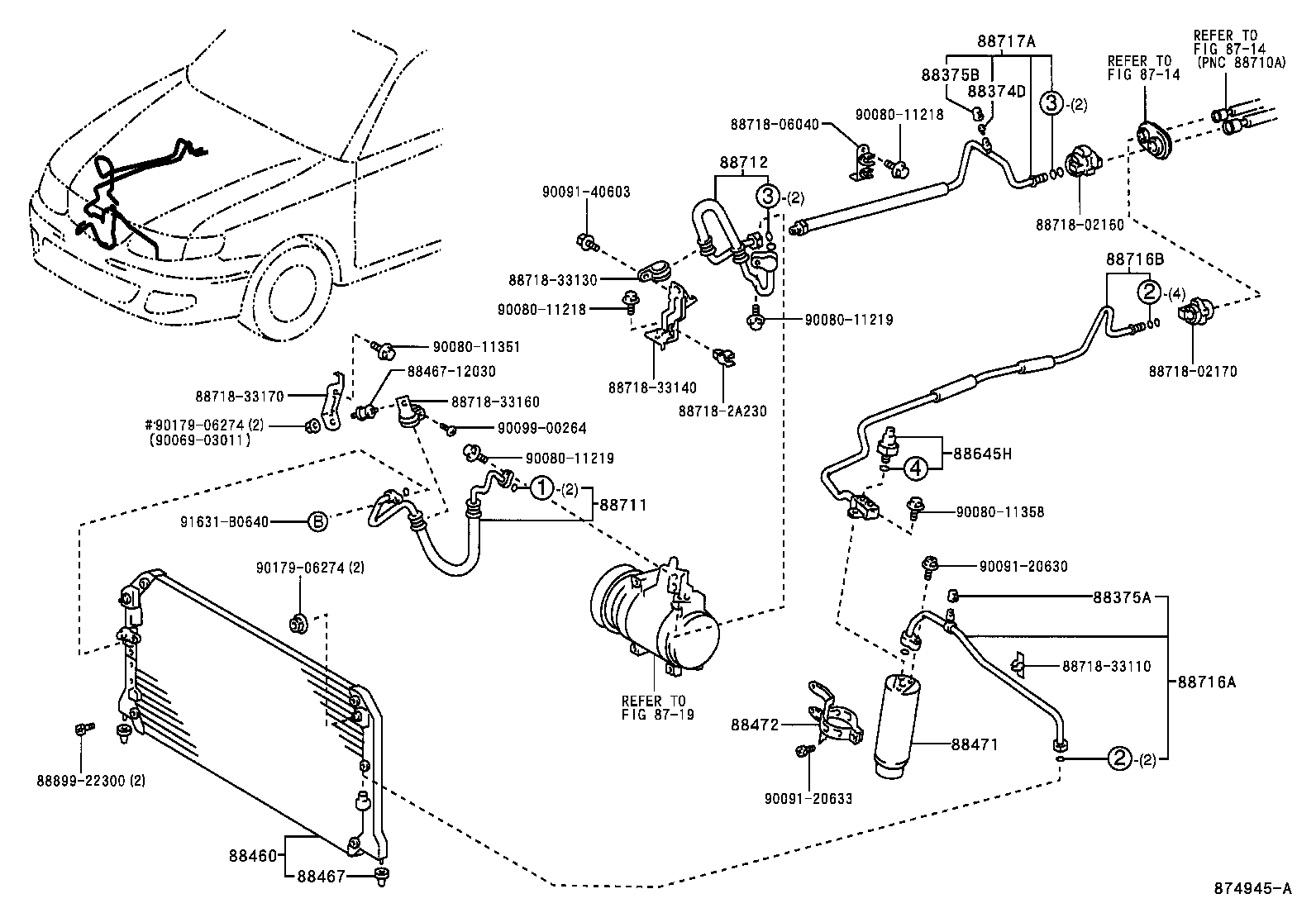

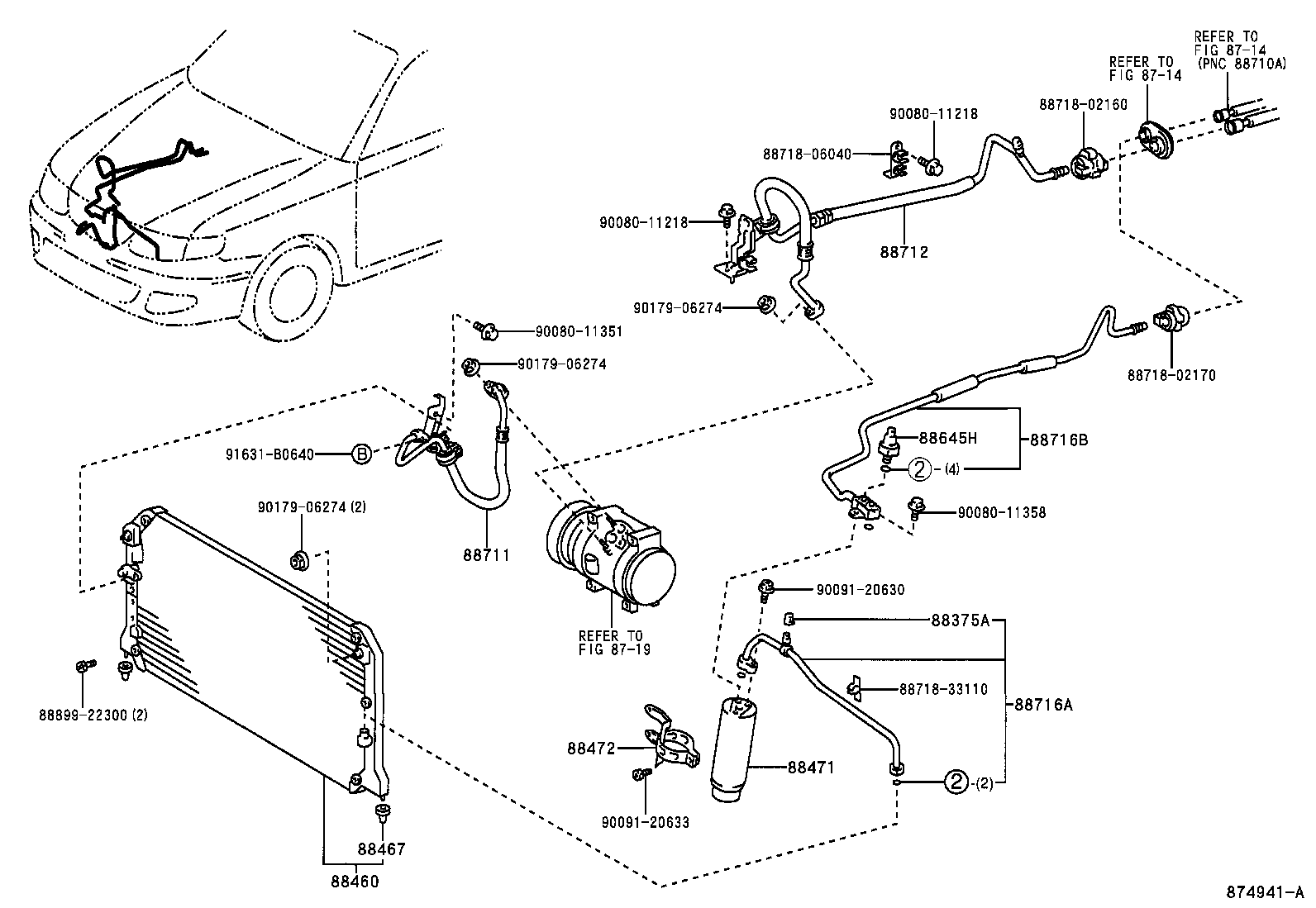

Figure 872645D 872645D 1998-06 → 2001-07 Figure 874941B 874941B 2001-07 → — Figure 874945A 874945A 2001-07 → — Figure 873947A 873947A 1998-06 → 2001-07 Figure 874946 874946 2001-07 → —

Part groups

PNCDescription
88374D Valve, Service NO.3
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
