Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

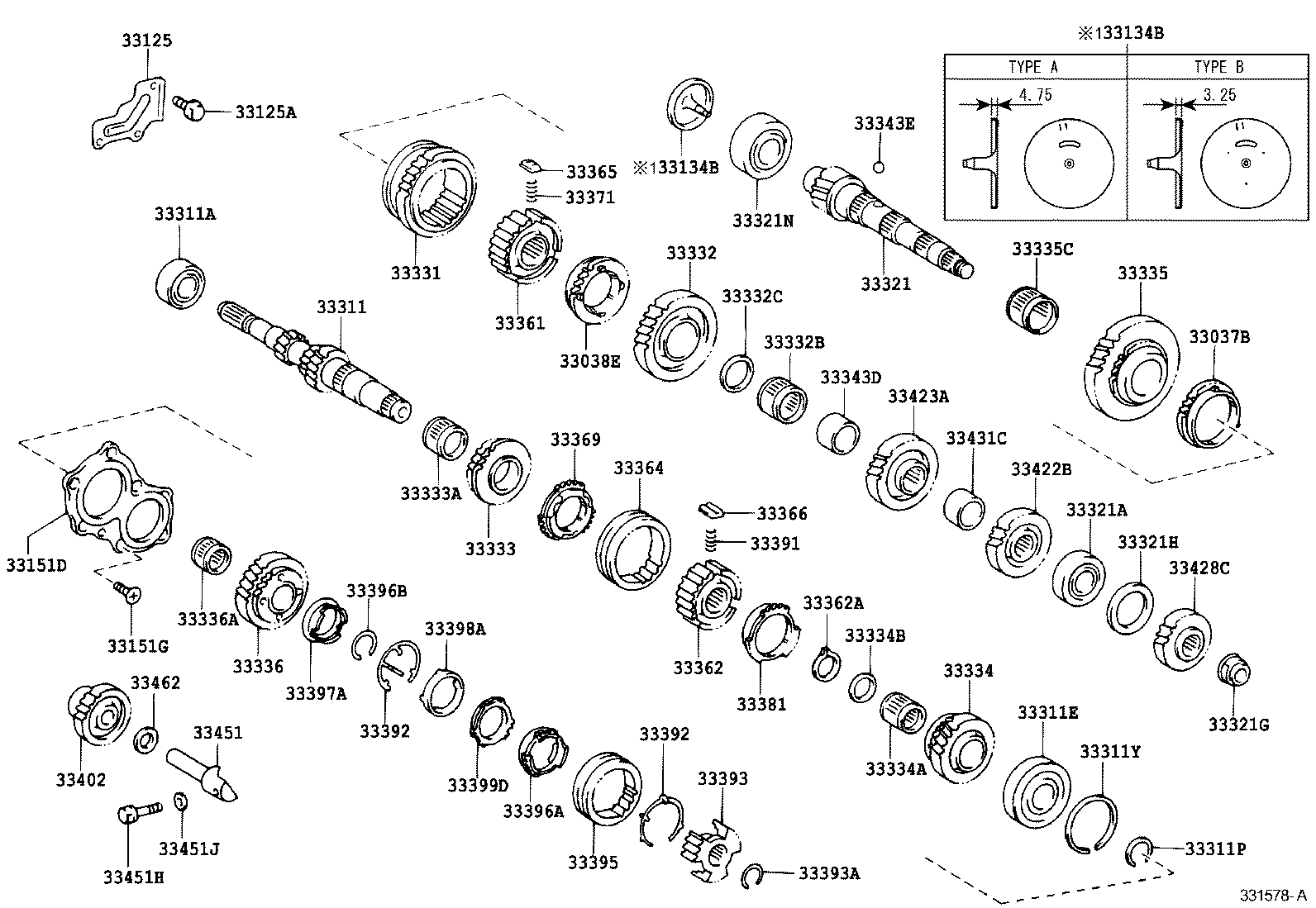

Exploded illustration 331578A 33125 — RECEIVER, MANUAL TRANSAXLE CASE (2 parts) 33125A — BOLT(FOR TRANSAXLE CASE RECEIVER) (2 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (2 parts) 33335 — GEAR, 1ST (3 parts) 33335C — BEARING, NEEDLE ROLLER(FOR 1ST GEAR) (2 parts) 33321 — SHAFT, OUTPUT (4 parts) 33343E — BALL (FOR 2ND GEAR BUSH) (2 parts) 33321N — BEARING (FOR OUTPUT SHAFT FRONT) (2 parts) 33311A — BEARING (FOR INPUT SHAFT FRONT) (2 parts) 33311 — SHAFT, INPUT (4 parts) 33331 — GEAR, REVERSE (4 parts) 33361 — HUB, TRANSMISSION CLUTCH, NO.1 (3 parts) 33371 — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (2 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33038E — RING SET, SYNCHRONIZER, NO.2 (2 parts) 33332 — GEAR, 2ND (4 parts) 33332B — BEARING, NEEDLE ROLLER (FOR 2ND GEAR) (2 parts) 33332C — SPACER (FOR 2ND GEAR BEARING) (2 parts) 33343D — BUSH, 2ND GEAR (2 parts) 33423A — GEAR, 3RD DRIVEN (4 parts) 33431C — SPACER, OUTPUT GEAR (2 parts) 33422B — GEAR, 4TH DRIVEN (3 parts) 33321A — BEARING (FOR OUTPUT SHAFT REAR) (2 parts) 33321H — SHIM (FOR OUTPUT SHAFT REAR BEARING) (50 parts) 33428C — GEAR, 5TH DRIVEN (3 parts) 33321G — NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) (2 parts) 33311P — RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) (16 parts) 33311Y — RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) (2 parts) 33311E — BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) (2 parts) 33334 — GEAR, 4TH (3 parts) 33334A — BEARING, NEEDLE ROLLER (FOR 4TH GEAR) (2 parts) 33334B — SPACER (FOR 4TH GEAR BEARING) (2 parts) 33362A — RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) (14 parts) 33381 — RING, 2ND SYNCHRONIZER OUTER (3 parts) 33362 — HUB, TRANSMISSION CLUTCH, NO.2 (2 parts) 33391 — SPRING, SYNCHROMESH SHIFTING KEY, NO.2 (3 parts) 33366 — KEY, SYNCHROMESH SHIFTING, NO.2 (3 parts) 33364 — SLEEVE, TRANSMISSION HUB, NO.2 (3 parts) 33369 — RING, SYNCHRONIZER, NO.3 (3 parts) 33333 — GEAR, 3RD (4 parts) 33333A — BEARING, NEEDLE ROLLER (FOR 3RD GEAR) (2 parts) 33151D — RETAINER, BEARING, REAR(MTM) (2 parts) 33151G — SCREW(FOR REAR BEARING RETAINER) (2 parts) 33336A — BEARING, NEEDLE ROLLER (FOR 5TH GEAR) (2 parts) 33402 — GEAR SUB-ASSY, REVERSE IDLER (2 parts) 33462 — WASHER, REVERSE IDLER THRUST (2 parts) 33451H — BOLT (FOR REVERSE IDLER GEAR SHAFT) (2 parts) 33451J — GASKET (FOR REVERSE IDLER GEAR SHAFT) (2 parts) 33451 — SHAFT, REVERSE IDLER GEAR (2 parts) 33336 — GEAR, 5TH (3 parts) 33397A — RING, SYNCHRONIZER, INNER NO.5 (2 parts) 33396B — RING, SNAP (FOR SYNCHRONIZER PULL RING) (2 parts) 33392 — SPRING, SYNCHROMESH SHIFTING KEY, NO.3 (4 parts) 33398A — RING, SYNCHRONIZER, MIDDLE NO.5 (2 parts) 33399D — RING, SYNCHRONIZER, OUTER NO.5 (2 parts) 33396A — RING, SYNCHRONIZER PULL (2 parts) 33395 — SLEEVE, TRANSMISSION HUB, NO.3 (4 parts) 33392 — SPRING, SYNCHROMESH SHIFTING KEY, NO.3 (4 parts) 33393A — RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) (18 parts) 33393 — HUB, TRANSMISSION CLUTCH, NO.3 (2 parts) 33134B — COVER, OUTPUT SHAFT(MTM) (3 parts) 33134B — COVER, OUTPUT SHAFT(MTM) (3 parts)
331578A · 62 callouts Full size ↗
238 parts on this figure
Part number Description Fitment Price
33037B — Ring Set, Synchronizer, NO.1
33037-28010 Ring Set, Synchronizer, NO.1
2003-07 → 2006-05 ended
ACV30 5F —
33037-28010 Ring Set, Synchronizer, NO.1
2006-05 → 2008-08 ended
ACV30 5F —
33038E — Ring Set, Synchronizer, NO.2
33038-28010 Ring Set, Synchronizer, NO.2
2003-07 → 2006-05 ended
ACV30 5F —
33038-28010 Ring Set, Synchronizer, NO.2
2006-05 → 2008-08 ended
ACV30 5F —
33125 — Receiver, Manual Transaxle Case
33125-20010 Receiver, Manual Transaxle Case
2003-07 → 2006-05 ended
ACV30 5F —
33125-20010 Receiver, Manual Transaxle Case
2006-05 → 2008-08 ended
ACV30 5F —
33125A — Bolt(FOR TRANSAXLE CASE RECEIVER)
91611-B0616 Bolt(FOR TRANSAXLE CASE RECEIVER)
2003-07 → 2006-05 ended
ACV30 5F —
91611-B0616 Bolt(FOR TRANSAXLE CASE RECEIVER)
2006-05 → 2008-08 ended
ACV30 5F —
33134B — Cover, Output Shaft(MTM)
33134-20010 Cover, Output Shaft(MTM)
2003-07 → 2006-05 ended
ACV30 5F —
33134-20010 note Cover, Output Shaft(MTM)
2006-05 → 2008-05 ended
ACV30 5F —
33134-20011 note Cover, Output Shaft(MTM)
2008-05 → 2008-08 ended
ACV30 5F —
33151D — Retainer, Bearing, Rear(MTM)
33151-28020 Retainer, Bearing, Rear(MTM)
2003-07 → 2006-05 ended
ACV30 5F —
33151-28020 Retainer, Bearing, Rear(MTM)
2006-05 → 2008-08 ended
ACV30 5F —
33151G — Screw(FOR REAR BEARING RETAINER)
90149-80029 Screw(FOR REAR BEARING RETAINER)
2003-07 → 2006-05 ended
ACV30 5F —
90149-80029 Screw(FOR REAR BEARING RETAINER)
2006-05 → 2008-08 ended
ACV30 5F —
33311 — Shaft, Input
33311-12153 Shaft, Input
2003-07 → 2005-03 ended
ACV30 5F —
33311-20221 Shaft, Input
2005-03 → 2006-05 ended
ACV30 5F —
33311-20221 Shaft, Input
2006-05 → 2008-06 ended
ACV30 5F —
33311-33070 Shaft, Input
2008-06 → 2008-08 ended
ACV30 5F —
33311A — Bearing (FOR INPUT SHAFT FRONT)
90365-30023 Bearing (FOR INPUT SHAFT FRONT)
2003-07 → 2006-05 ended
ACV30 5F —
90365-30023 Bearing (FOR INPUT SHAFT FRONT)
2006-05 → 2008-08 ended
ACV30 5F —
33311E — Bearing, Radial Ball (FOR INPUT SHAFT REAR)
90363-33007 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2003-07 → 2006-05 ended
ACV30 5F —
90363-33007 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2006-05 → 2008-08 ended
ACV30 5F —
33311P — Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
90520-30008 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30009 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30010 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30011 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30012 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30013 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30021 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30022 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-30008 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30009 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30010 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30011 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30012 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30013 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30021 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-30022 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
33311Y — Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
90520-76003 Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-76003 Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
33321 — Shaft, Output
33302-12071 Shaft, Output
2003-07 → 2005-03 ended
ACV30 5F —
33302-20030 Shaft, Output
2005-03 → 2006-05 ended
ACV30 5F —
33302-20030 note Shaft, Output
2006-05 → 2008-05 ended
ACV30 5F —
33302-20031 note Shaft, Output
2008-05 → 2008-08 ended
ACV30 5F —
33321A — Bearing (FOR OUTPUT SHAFT REAR)
90366-28002 Bearing (FOR OUTPUT SHAFT REAR)
2003-07 → 2006-05 ended
ACV30 5F —
90366-28002 Bearing (FOR OUTPUT SHAFT REAR)
2006-05 → 2008-08 ended
ACV30 5F —
33321G — Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-20012 Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
2003-07 → 2006-05 ended
ACV30 5F —
90179-20012 Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
2006-05 → 2008-08 ended
ACV30 5F —
33321H — Shim (FOR OUTPUT SHAFT REAR BEARING)
90564-59001 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59002 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59003 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59004 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59005 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59006 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59007 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59008 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59009 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59010 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59011 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59012 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59013 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59014 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59015 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59016 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59017 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59018 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59019 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59020 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59021 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59022 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59023 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59024 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59025 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90564-59001 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59002 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59003 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59004 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59005 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59006 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59007 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59008 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59009 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59010 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59011 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59012 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59013 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59014 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59015 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59016 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59017 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59018 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59019 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59020 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59021 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59022 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59023 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59024 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
90564-59025 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
33321N — Bearing (FOR OUTPUT SHAFT FRONT)
90366-32025 Bearing (FOR OUTPUT SHAFT FRONT)
2003-07 → 2006-05 ended
ACV30 5F —
90366-32025 Bearing (FOR OUTPUT SHAFT FRONT)
2006-05 → 2008-08 ended
ACV30 5F —
33331 — Gear, Reverse
33331-28020 Gear, Reverse
2003-07 → 2005-11 ended
ACV30 5F —
33331-28021 Gear, Reverse
2005-11 → 2006-05 ended
ACV30 5F —
33331-21010 Gear, Reverse
2007-07 → 2008-08 ended
ACV30 5F —
33331-28021 Gear, Reverse
2006-05 → 2007-07 ended
ACV30 5F —
33332 — Gear, 2ND
33332-28020 Gear, 2ND
2003-07 → 2005-03 ended
ACV30 5F —
33332-42020 Gear, 2ND
2005-03 → 2006-05 ended
ACV30 5F —
33332-33060 Gear, 2ND
2008-06 → 2008-08 ended
ACV30 5F —
33332-42020 Gear, 2ND
2006-05 → 2008-06 ended
ACV30 5F —
33332B — Bearing, Needle Roller (FOR 2ND GEAR)
90364-44001 Bearing, Needle Roller (FOR 2ND GEAR)
2003-07 → 2006-05 ended
ACV30 5F —
90364-44001 Bearing, Needle Roller (FOR 2ND GEAR)
2006-05 → 2008-08 ended
ACV30 5F —
33332C — Spacer (FOR 2ND GEAR BEARING)
90560-44001 Spacer (FOR 2ND GEAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90560-44001 Spacer (FOR 2ND GEAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
33333 — Gear, 3RD
33034-28031 Gear, 3RD
2003-07 → 2005-03 ended
ACV30 5F —
33034-42020 Gear, 3RD
2005-03 → 2006-05 ended
ACV30 5F —
33034-33030 Gear, 3RD
2008-06 → 2008-08 ended
ACV30 5F —
33034-42020 Gear, 3RD
2006-05 → 2008-06 ended
ACV30 5F —
33333A — Bearing, Needle Roller (FOR 3RD GEAR)
90364-36011 Bearing, Needle Roller (FOR 3RD GEAR)
2003-07 → 2006-05 ended
ACV30 5F —
90364-36011 Bearing, Needle Roller (FOR 3RD GEAR)
2006-05 → 2008-08 ended
ACV30 5F —
33334 — Gear, 4TH
33035-28010 Gear, 4TH
2003-07 → 2005-03 ended
ACV30 5F —
33035-42020 Gear, 4TH
2005-03 → 2006-05 ended
ACV30 5F —
33035-42020 Gear, 4TH
2006-05 → 2008-08 ended
ACV30 5F —
33334A — Bearing, Needle Roller (FOR 4TH GEAR)
90364-36014 Bearing, Needle Roller (FOR 4TH GEAR)
2003-07 → 2006-05 ended
ACV30 5F —
90364-36014 Bearing, Needle Roller (FOR 4TH GEAR)
2006-05 → 2008-08 ended
ACV30 5F —
33334B — Spacer (FOR 4TH GEAR BEARING)
90560-36002 Spacer (FOR 4TH GEAR BEARING)
2003-07 → 2006-05 ended
ACV30 5F —
90560-36002 Spacer (FOR 4TH GEAR BEARING)
2006-05 → 2008-08 ended
ACV30 5F —
33335 — Gear, 1ST
33335-20130 Gear, 1ST
2005-03 → 2006-05 ended
ACV30 5F —
33335-28040 Gear, 1ST
2003-07 → 2005-03 ended
ACV30 5F —
33335-20130 Gear, 1ST
2006-05 → 2008-08 ended
ACV30 5F —
33335C — Bearing, Needle Roller(FOR 1ST GEAR)
90364-45007 Bearing, Needle Roller(FOR 1ST GEAR)
2003-07 → 2006-05 ended
ACV30 5F —
90364-45007 Bearing, Needle Roller(FOR 1ST GEAR)
2006-05 → 2008-08 ended
ACV30 5F —
33336 — Gear, 5TH
33336-20081 Gear, 5TH
2003-07 → 2005-03 ended
ACV30 5F —
33336-42020 Gear, 5TH
2005-03 → 2006-05 ended
ACV30 5F —
33336-42020 Gear, 5TH
2006-05 → 2008-08 ended
ACV30 5F —
33336A — Bearing, Needle Roller (FOR 5TH GEAR)
90364-28023 Bearing, Needle Roller (FOR 5TH GEAR)
2003-07 → 2006-05 ended
ACV30 5F —
90364-28023 Bearing, Needle Roller (FOR 5TH GEAR)
2006-05 → 2008-08 ended
ACV30 5F —
33343D — Bush, 2ND Gear
33343-12020 Bush, 2ND Gear
2003-07 → 2006-05 ended
ACV30 5F —
33343-12020 Bush, 2ND Gear
2006-05 → 2008-08 ended
ACV30 5F —
33343E — Ball (FOR 2ND GEAR BUSH)
90360-05012 Ball (FOR 2ND GEAR BUSH)
2003-07 → 2006-05 ended
ACV30 5F —
90360-05012 Ball (FOR 2ND GEAR BUSH)
2006-05 → 2008-08 ended
ACV30 5F —
33361 — Hub, Transmission Clutch, NO.1
33361-28010 Hub, Transmission Clutch, NO.1
2003-07 → 2005-03 ended
ACV30 5F —
33361-42010 Hub, Transmission Clutch, NO.1
2005-03 → 2006-05 ended
ACV30 5F —
33361-42010 Hub, Transmission Clutch, NO.1
2006-05 → 2008-08 ended
ACV30 5F —
33362 — Hub, Transmission Clutch, NO.2
33362-42012 Hub, Transmission Clutch, NO.2
2003-07 → 2006-05 ended
ACV30 5F —
33362-42012 Hub, Transmission Clutch, NO.2
2006-05 → 2008-08 ended
ACV30 5F —
33362A — Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
90520-34003 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34004 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34005 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34006 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34007 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34008 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34009 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-34003 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34004 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34005 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34006 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34007 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34008 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
90520-34009 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-05 → 2008-08 ended
ACV30 5F —
33364 — Sleeve, Transmission Hub, NO.2
33364-28011 Sleeve, Transmission Hub, NO.2
2003-07 → 2005-04 ended
ACV30 5F —
33364-42010 Sleeve, Transmission Hub, NO.2
2005-04 → 2006-05 ended
ACV30 5F —
33364-42010 Sleeve, Transmission Hub, NO.2
2006-05 → 2008-08 ended
ACV30 5F —
33365 — Key, Synchromesh Shifting, NO.1
33365-12040 Key, Synchromesh Shifting, NO.1
2003-07 → 2006-05 ended
ACV30 5F —
33365-12040 Key, Synchromesh Shifting, NO.1
2006-05 → 2008-08 ended
ACV30 5F —
33366 — Key, Synchromesh Shifting, NO.2
33366-12031 Key, Synchromesh Shifting, NO.2
2003-07 → 2005-11 ended
ACV30 5F —
33366-42010 Key, Synchromesh Shifting, NO.2
2005-11 → 2006-05 ended
ACV30 5F —
33366-42010 Key, Synchromesh Shifting, NO.2
2006-05 → 2008-08 ended
ACV30 5F —
33369 — Ring, Synchronizer, NO.3
33369-28010 Ring, Synchronizer, NO.3
2003-07 → 2003-08 ended
ACV30 5F —
33369-28011 Ring, Synchronizer, NO.3
2003-08 → 2006-05 ended
ACV30 5F —
33369-28011 Ring, Synchronizer, NO.3
2006-05 → 2008-08 ended
ACV30 5F —
33371 — Spring, Synchromesh Shifting Key, NO.1
90501-08112 Spring, Synchromesh Shifting Key, NO.1
2003-07 → 2006-05 ended
ACV30 5F —
90501-08112 Spring, Synchromesh Shifting Key, NO.1
2006-05 → 2008-08 ended
ACV30 5F —
33381 — Ring, 2ND Synchronizer Outer
33381-28010 Ring, 2ND Synchronizer Outer
2003-07 → 2006-05 ended
ACV30 5F —
33381-28010 Ring, 2ND Synchronizer Outer
2006-05 → 2007-01 ended
ACV30 5F —
33381-28011 Ring, 2ND Synchronizer Outer
2007-01 → 2008-08 ended
ACV30 5F —
33391 — Spring, Synchromesh Shifting Key, NO.2
90501-08131 Spring, Synchromesh Shifting Key, NO.2
2003-07 → 2005-11 ended
ACV30 5F —
90501-08218 Spring, Synchromesh Shifting Key, NO.2
2005-11 → 2006-05 ended
ACV30 5F —
90501-08218 Spring, Synchromesh Shifting Key, NO.2
2006-05 → 2008-08 ended
ACV30 5F —
33392 — Spring, Synchromesh Shifting Key, NO.3
33392-12010 note Spring, Synchromesh Shifting Key, NO.3
2003-07 → 2006-05 ended
ACV30 5F —
33392-12020 note Spring, Synchromesh Shifting Key, NO.3
2003-07 → 2006-05 ended
ACV30 5F —
33392-12010 note Spring, Synchromesh Shifting Key, NO.3
2006-05 → 2008-08 ended
ACV30 5F —
33392-12020 note Spring, Synchromesh Shifting Key, NO.3
2006-05 → 2008-08 ended
ACV30 5F —
33393 — Hub, Transmission Clutch, NO.3
33393-42010 Hub, Transmission Clutch, NO.3
2003-07 → 2006-05 ended
ACV30 5F —
33393-42010 Hub, Transmission Clutch, NO.3
2006-05 → 2008-08 ended
ACV30 5F —
33393A — Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
90520-27061 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27062 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27063 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27064 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27065 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27066 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27067 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27068 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27069 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2003-07 → 2006-05 ended
ACV30 5F —
90520-27061 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27062 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27063 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27064 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27065 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27066 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27067 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27068 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
90520-27069 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2006-05 → 2008-08 ended
ACV30 5F —
33395 — Sleeve, Transmission Hub, NO.3
33395-42010 Sleeve, Transmission Hub, NO.3
2003-07 → 2005-11 ended
ACV30 5F —
33395-42011 Sleeve, Transmission Hub, NO.3
2005-11 → 2006-05 ended
ACV30 5F —
33395-42011 Sleeve, Transmission Hub, NO.3
2006-05 → 2007-06 ended
ACV30 5F —
33395-42012 Sleeve, Transmission Hub, NO.3
2007-06 → 2008-08 ended
ACV30 5F —
33396A — Ring, Synchronizer Pull
33396-28010 Ring, Synchronizer Pull
2003-07 → 2006-05 ended
ACV30 5F —
33396-28010 Ring, Synchronizer Pull
2006-05 → 2008-08 ended
ACV30 5F —
33396B — Ring, Snap (FOR SYNCHRONIZER PULL RING)
90520-46035 Ring, Snap (FOR SYNCHRONIZER PULL RING)
2003-07 → 2006-05 ended
ACV30 5F —
90520-46035 Ring, Snap (FOR SYNCHRONIZER PULL RING)
2006-05 → 2008-08 ended
ACV30 5F —
33397A — Ring, Synchronizer, Inner NO.5
33397-28010 Ring, Synchronizer, Inner NO.5
2003-07 → 2006-05 ended
ACV30 5F —
33397-28010 Ring, Synchronizer, Inner NO.5
2006-05 → 2008-08 ended
ACV30 5F —
33398A — Ring, Synchronizer, Middle NO.5
33398-12010 Ring, Synchronizer, Middle NO.5
2003-07 → 2006-05 ended
ACV30 5F —
33398-12010 Ring, Synchronizer, Middle NO.5
2006-05 → 2008-08 ended
ACV30 5F —
33399D — Ring, Synchronizer, Outer NO.5
33399-12011 Ring, Synchronizer, Outer NO.5
2003-07 → 2006-05 ended
ACV30 5F —
33399-12011 Ring, Synchronizer, Outer NO.5
2006-05 → 2008-08 ended
ACV30 5F —
33402 — Gear Sub-assy, Reverse Idler
33402-28020 Gear Sub-assy, Reverse Idler
2003-07 → 2006-05 ended
ACV30 5F —
33402-28020 Gear Sub-assy, Reverse Idler
2006-05 → 2008-08 ended
ACV30 5F —
33422B — Gear, 4TH Driven
33422-12030 Gear, 4TH Driven
2003-07 → 2005-03 ended
ACV30 5F —
33422-42020 Gear, 4TH Driven
2005-03 → 2006-05 ended
ACV30 5F —
33422-42020 Gear, 4TH Driven
2006-05 → 2008-08 ended
ACV30 5F —
33423A — Gear, 3RD Driven
33423-12030 Gear, 3RD Driven
2003-07 → 2005-03 ended
ACV30 5F —
33423-42020 Gear, 3RD Driven
2005-03 → 2006-05 ended
ACV30 5F —
33423-33020 Gear, 3RD Driven
2008-06 → 2008-08 ended
ACV30 5F —
33423-42020 Gear, 3RD Driven
2006-05 → 2008-06 ended
ACV30 5F —
33428C — Gear, 5TH Driven
33428-20071 Gear, 5TH Driven
2003-07 → 2005-03 ended
ACV30 5F —
33428-42020 Gear, 5TH Driven
2005-03 → 2006-05 ended
ACV30 5F —
33428-42020 Gear, 5TH Driven
2006-05 → 2008-08 ended
ACV30 5F —
33431C — Spacer, Output Gear
33431-20080 Spacer, Output Gear
2003-07 → 2006-05 ended
ACV30 5F —
33431-20080 Spacer, Output Gear
2006-05 → 2008-08 ended
ACV30 5F —
33451 — Shaft, Reverse Idler Gear
33451-12032 Shaft, Reverse Idler Gear
2003-07 → 2006-05 ended
ACV30 5F —
33451-12032 Shaft, Reverse Idler Gear
2006-05 → 2008-08 ended
ACV30 5F —
33451H — Bolt (FOR REVERSE IDLER GEAR SHAFT)
90105-08150 Bolt (FOR REVERSE IDLER GEAR SHAFT)
2003-07 → 2006-05 ended
ACV30 5F —
90105-08150 Bolt (FOR REVERSE IDLER GEAR SHAFT)
2006-05 → 2008-08 ended
ACV30 5F —
33451J — Gasket (FOR REVERSE IDLER GEAR SHAFT)
90430-08010 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2003-07 → 2006-05 ended
ACV30 5F —
90430-08010 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2006-05 → 2008-08 ended
ACV30 5F —
33462 — Washer, Reverse Idler Thrust
33462-20050 Washer, Reverse Idler Thrust
2003-07 → 2006-05 ended
ACV30 5F —
33462-20050 Washer, Reverse Idler Thrust
2006-05 → 2008-08 ended
ACV30 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
