Toyota Solara
2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States
Supported model
Data version 2008-11

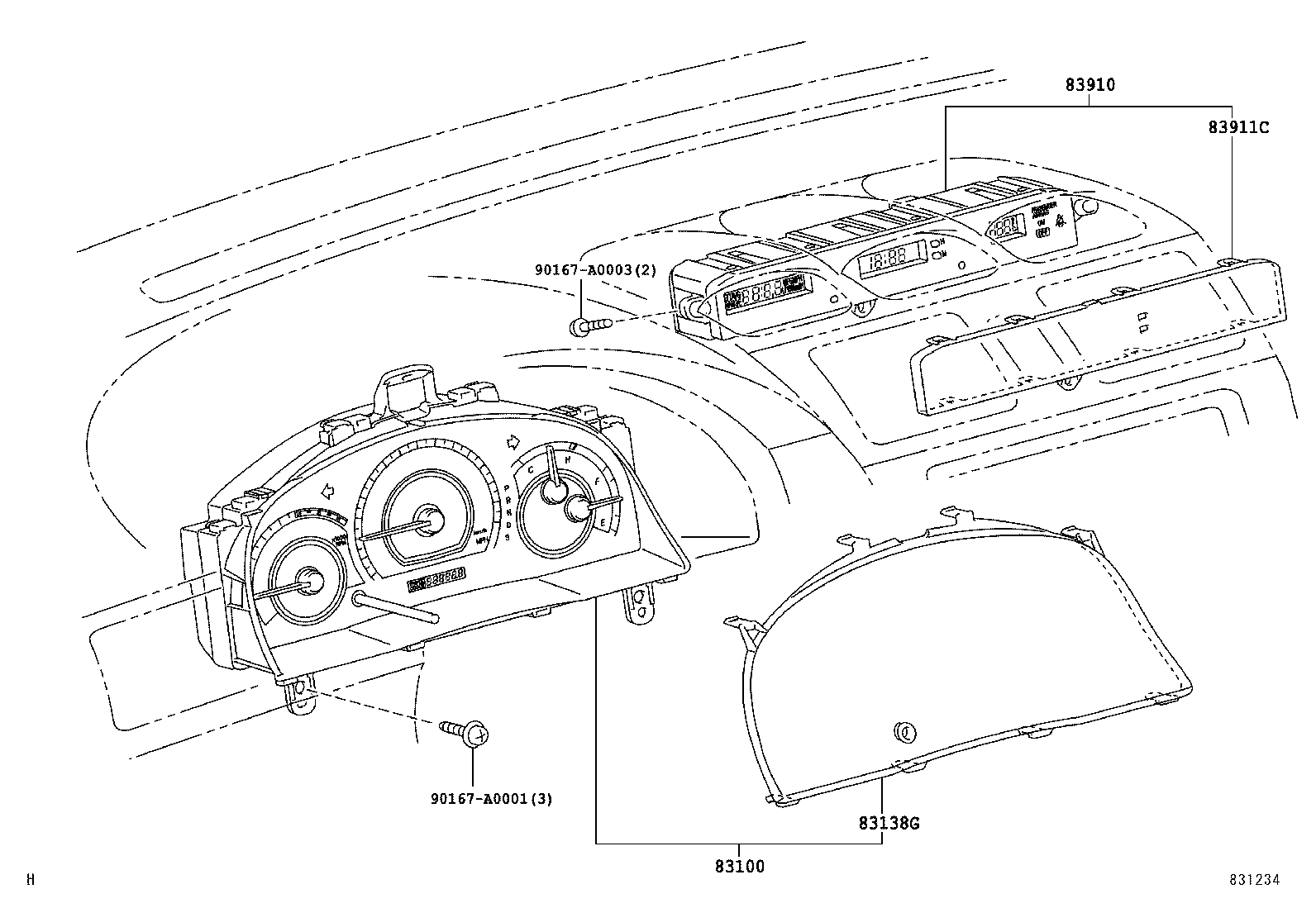

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-AA010 |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
ACV30 5F | — | |
| 83800-AA020 note |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
ACV30 5F | — | |
| 83800-AA040 note |
Meter Assy, Combination
2003-07 → 2005-03
ended
|
ACV30 4FC SE | — | |
| 83800-AA050 |
Meter Assy, Combination
2003-07 → 2004-08
ended
|
MCV31 CVT SE | — | |
| 83800-AA050 |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
MCV31 SLE;MCV31 CP SE | — | |
| 83800-AA060 note |
Meter Assy, Combination
2003-07 → 2004-08
ended
|
MCV31 CVT SE | — | |
| 83800-AA060 note |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
MCV31 SLE;MCV31 CP SE | — | |
| 83800-AA070 |
Meter Assy, Combination
2003-07 → 2005-03
ended
|
ACV30 4FC | — | |
| 83800-AA080 note |
Meter Assy, Combination
2003-07 → 2005-03
ended
|
ACV30 4FC | — | |
| 83800-AA090 note |
Meter Assy, Combination
2003-07 → 2005-03
ended
|
ACV30 4FC SE | — | |
| 83800-AA110 note |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
MCV31 CP SE | — | |
| 83800-AA110 note |
Meter Assy, Combination
2004-08 → 2006-05
ended
|
MCV31 CVT SE | — | |
| 83800-AA130 note |
Meter Assy, Combination
2003-07 → 2006-05
ended
|
MCV31 CP SE | — | |
| 83800-AA130 |
Meter Assy, Combination
2004-08 → 2006-05
ended
|
MCV31 CVT SE | — | |
| 83800-AA140 note |
Meter Assy, Combination
2005-03 → 2006-05
ended
|
ACV30 5FC SE | — | |
| 83800-AA150 note |
Meter Assy, Combination
2005-03 → 2006-05
ended
|
ACV30 5FC SE | — | |
| 83800-AA160 |
Meter Assy, Combination
2005-03 → 2006-05
ended
|
ACV30 5FC | — | |
| 83800-AA170 note |
Meter Assy, Combination
2005-03 → 2006-05
ended
|
ACV30 5FC | — | |
| 83800-06P10 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5FC SE | — | |
| 83800-06P20 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SE | — | |
| 83800-06P30 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5FC SE | — | |
| 83800-06P40 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SE | — | |
| 83800-06P50 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 SLE | — | |
| 83800-06P60 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SLE | — | |
| 83800-06P70 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5F | — | |
| 83800-06P80 |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5F | — | |
| 83800-06P90 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5FC SE | — | |
| 83800-06Q00 note |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SE | — | |
| 83800-06Q10 |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 5FC SE | — | |
| 83800-06Q20 |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SE | — | |
| 83800-06Q30 |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
ACV30 SLE | — | |
| 83800-06Q40 |
Meter Assy, Combination
2006-05 → 2007-07
ended
|
MCV31 SLE | — | |
| 83800-06S70 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5F | — | |
| 83800-06S80 |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5F | — | |
| 83800-06S90 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5FC SE | — | |
| 83800-06T00 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 CP SE | — | |
| 83800-06T00 note |
Meter Assy, Combination
2007-07 → —
|
MCV31 CVT SE | — | |
| 83800-06T10 |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5FC SE | — | |
| 83800-06T20 |
Meter Assy, Combination
2007-07 → —
|
MCV31 CVT SE | — | |
| 83800-06T20 |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 CP SE | — | |
| 83800-06T30 |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 SLE | — | |
| 83800-06T40 |
Meter Assy, Combination
2007-07 → —
|
MCV31 CVT SLE | — | |
| 83800-06T40 |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 CP SLE | — | |
| 83800-06T50 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5FC SE | — | |
| 83800-06T60 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 SE | — | |
| 83800-06T70 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 5FC SE | — | |
| 83800-06T80 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 SE | — | |
| 83800-06T90 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
ACV30 SLE | — | |
| 83800-06U00 note |
Meter Assy, Combination
2007-07 → 2008-08
ended
|
MCV31 SLE | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-AA010 |
Glass, Combination Meter
2003-07 → 2006-05
ended
|
ACV30,MCV31 5F,5FC | — | |
| 83852-AA010 |
Glass, Combination Meter
2003-07 → 2005-03
ended
|
ACV30 4FC | — | |
| 83852-06P70 |
Glass, Combination Meter
2006-05 → 2008-08
ended
|
ACV30,MCV31 CP | — | |
| 83852-06P70 |
Glass, Combination Meter
2006-05 → —
|
MCV31 CVT | — | |
| 83910 — Clock Assy | ||||
| 83910-AA030 |
Clock Assy
2003-07 → 2003-08
ended
|
ACV30,MCV31 | — | |
| 83910-AA031 |
Clock Assy
2003-08 → 2004-07
ended
|
ACV30,MCV31 | — | |
| 83910-AA032 |
Clock Assy
2004-08 → 2006-05
ended
|
ACV30,MCV31 | — | |
| 83910-06190 |
Clock Assy
2006-05 → 2008-08
ended
|
ACV30,MCV31 CP | — | |
| 83910-06190 |
Clock Assy
2006-05 → —
|
MCV31 CVT | — | |
| 83911C — Ornament, Clock | ||||
| 83911-AA010 |
Ornament, Clock
2003-07 → 2005-03
ended
|
ACV30 4FC | — | |
| 83911-AA010 |
Ornament, Clock
2003-07 → 2006-05
ended
|
ACV30,MCV31 5F,5FC | — | |
| 83911-AA010 |
Ornament, Clock
2006-05 → 2008-08
ended
|
ACV30,MCV31 CP | — | |
| 83911-AA010 |
Ornament, Clock
2006-05 → —
|
MCV31 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
