Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 3 illustrations

Illustrations

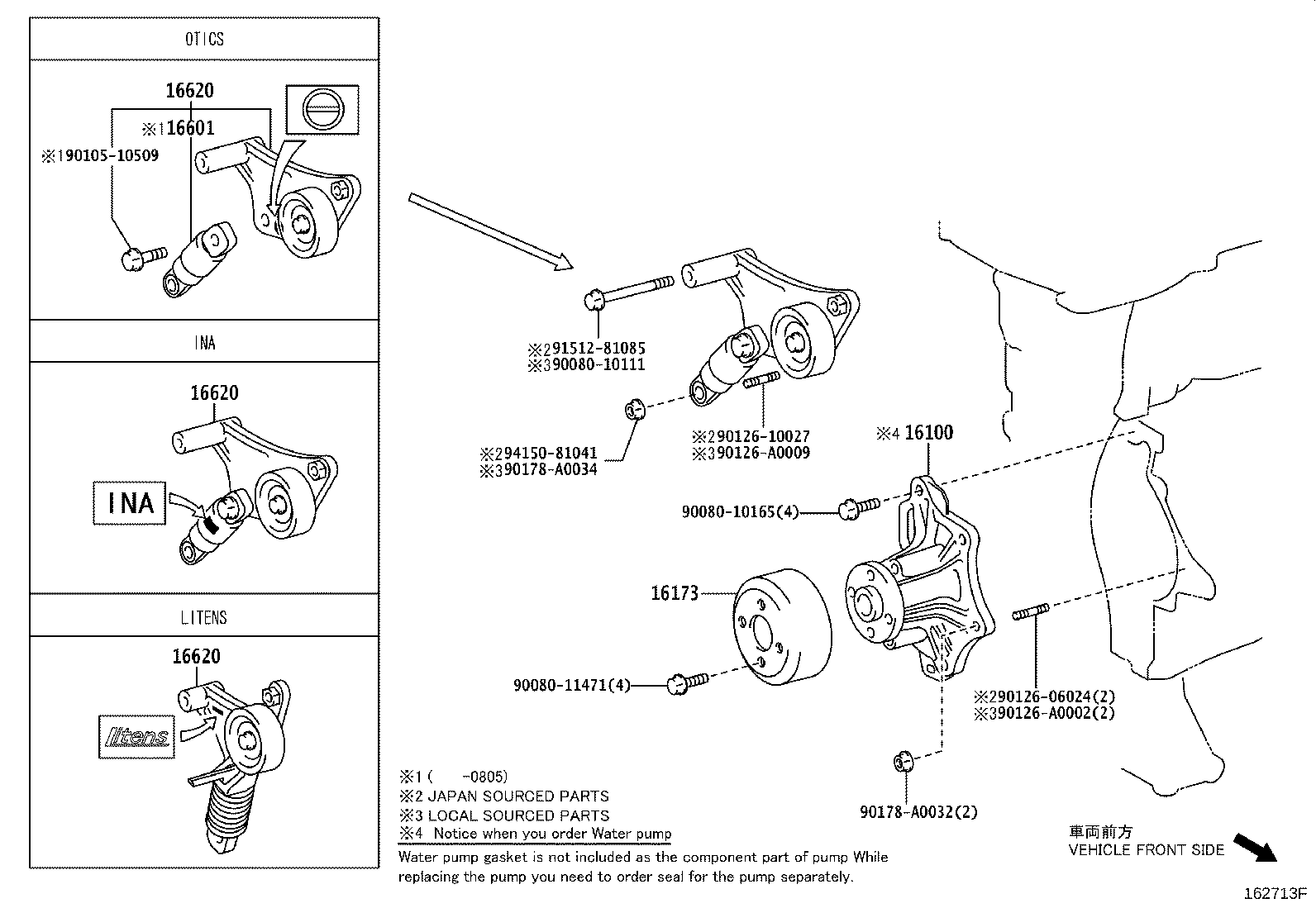

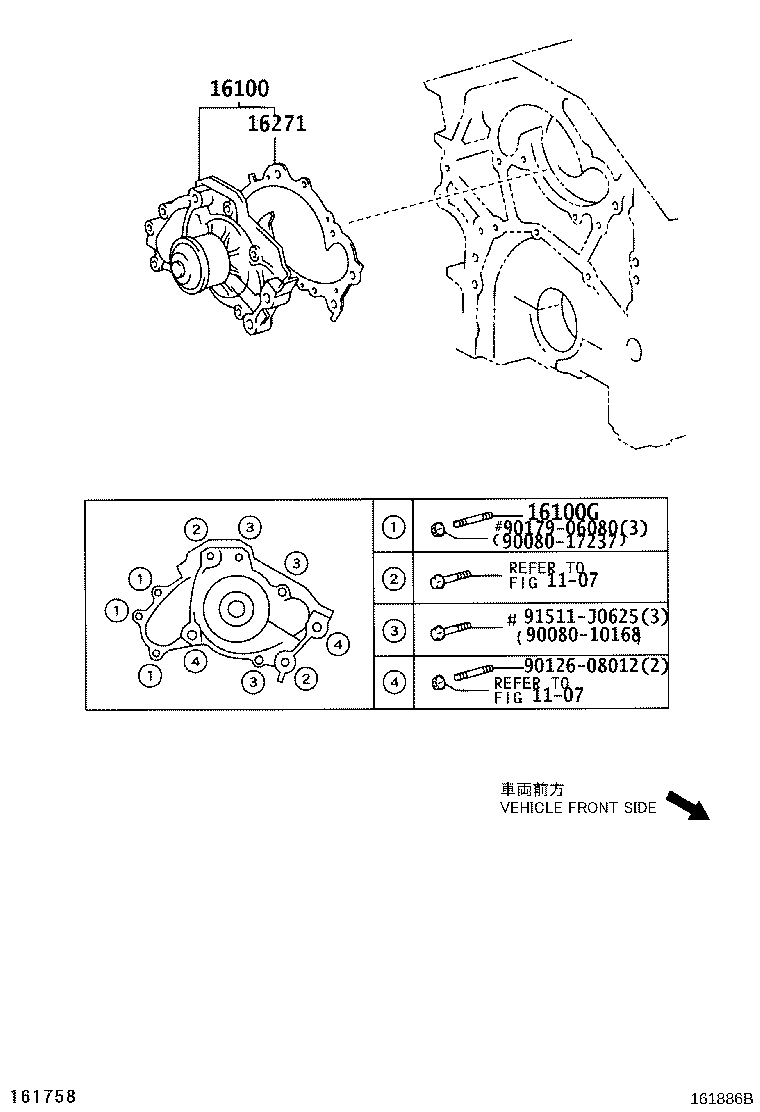

Figure 161880E 161880E 2003-07 → 2006-05 Figure 162713F 162713F 2006-05 → — Figure 161886B 161886B 2003-07 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100G Bolt, Stud(FOR WATER PUMP SET)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16620 Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
