Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 2 illustrations

Illustrations

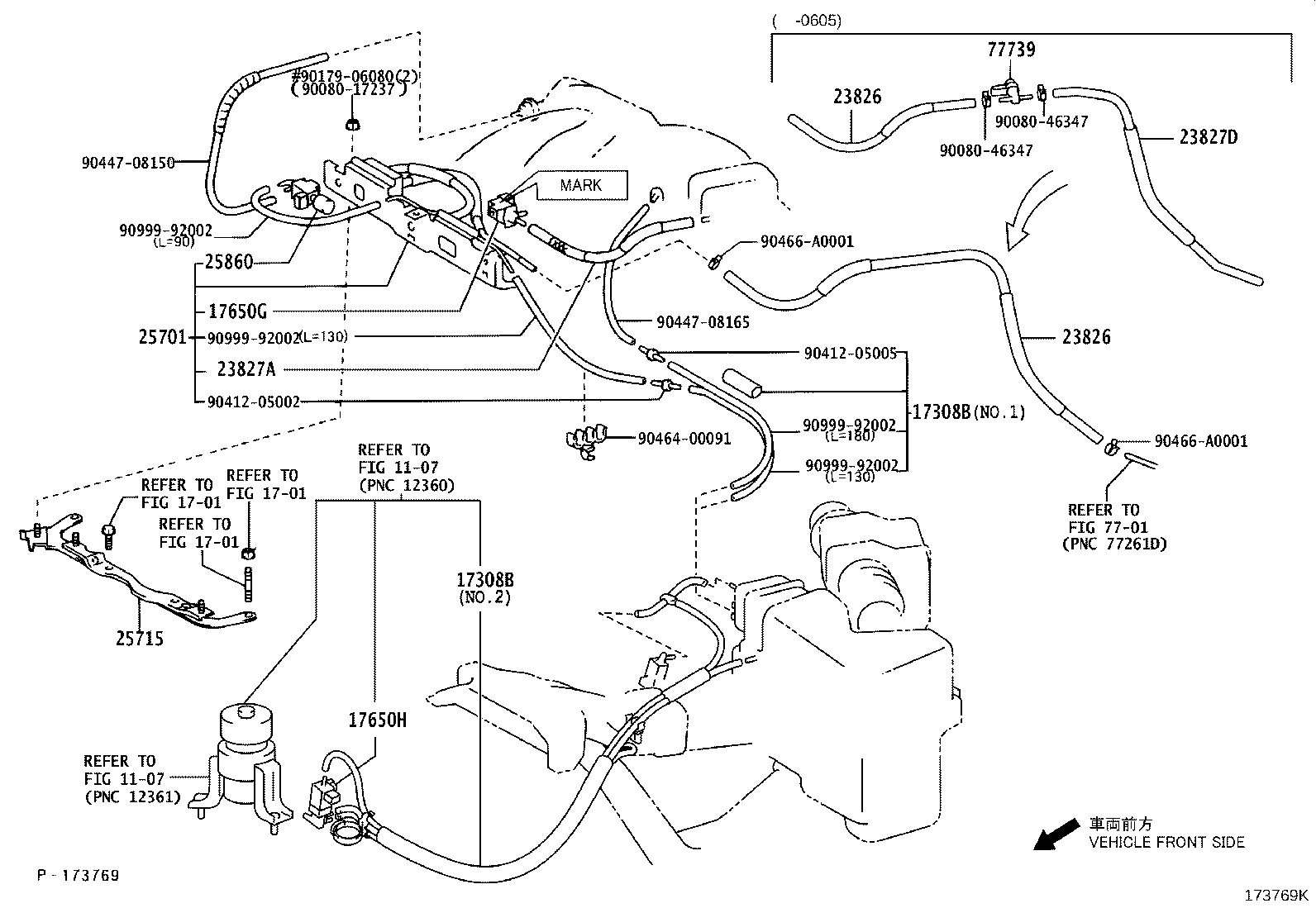

Figure 173766B 173766B 2003-07 → — Figure 173769K 173769K 2003-07 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827D Hose, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25715 Bracket, Emission Control Valve
25860 Valve Assy, Vacuum Switching, NO.1
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
