Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

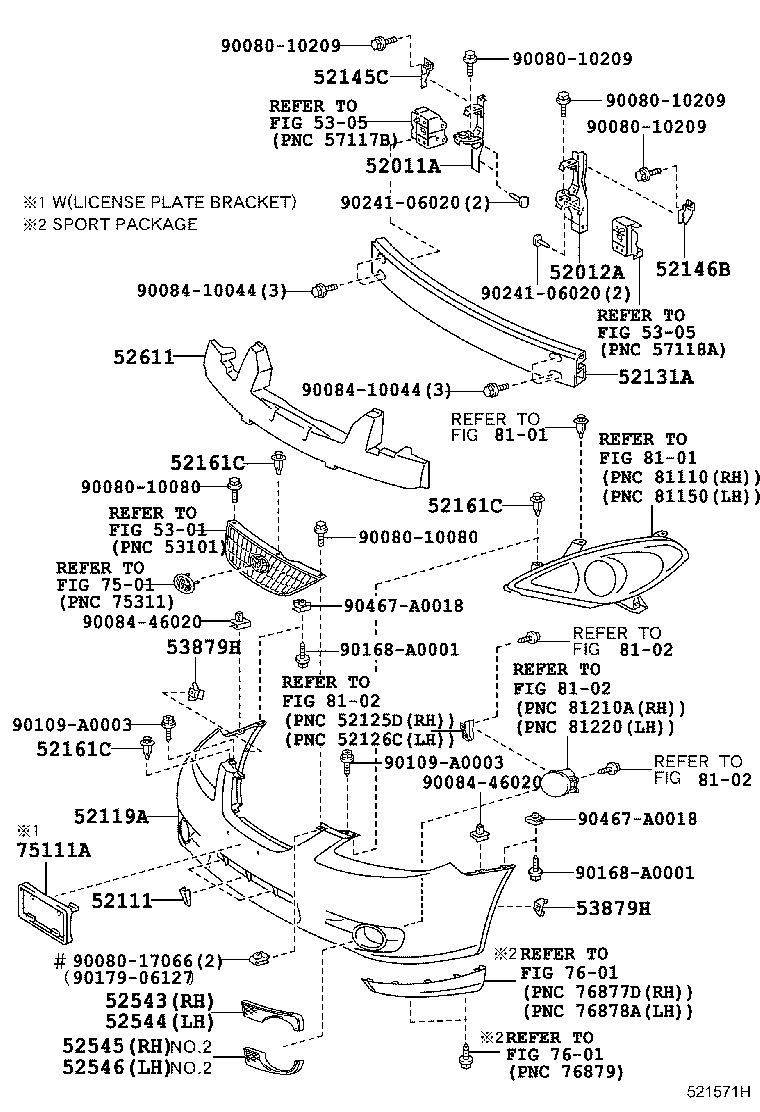

Figure 521015I 521015I 2003-07 → 2006-05 Figure 521571H 521571H 2006-05 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52545 Seal, Front Bumper Side, NO.2 RH
52546 Seal, Front Bumper Side, NO.2 RH
52611 Absorber, Front Bumper Energy
53879H Retainer, Front Fender Liner
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
