Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

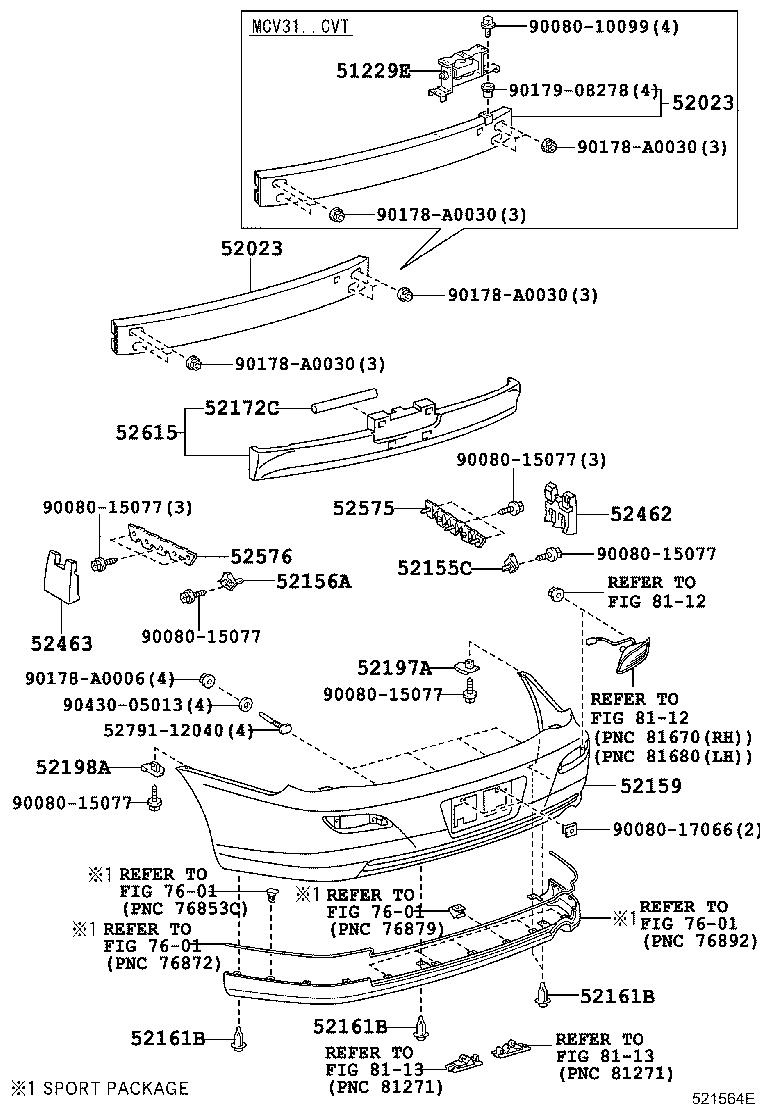

Figure 521016E 521016E 2003-07 → 2006-05 Figure 521564E 521564E 2006-05 → —

Part groups

PNCDescription
51229E Damper, Frame Dynamic
52023 Reinforcement Sub-assy, Rear Bumper
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52172C Reinforcement, Rear Bumper Bar, Center
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
