Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11

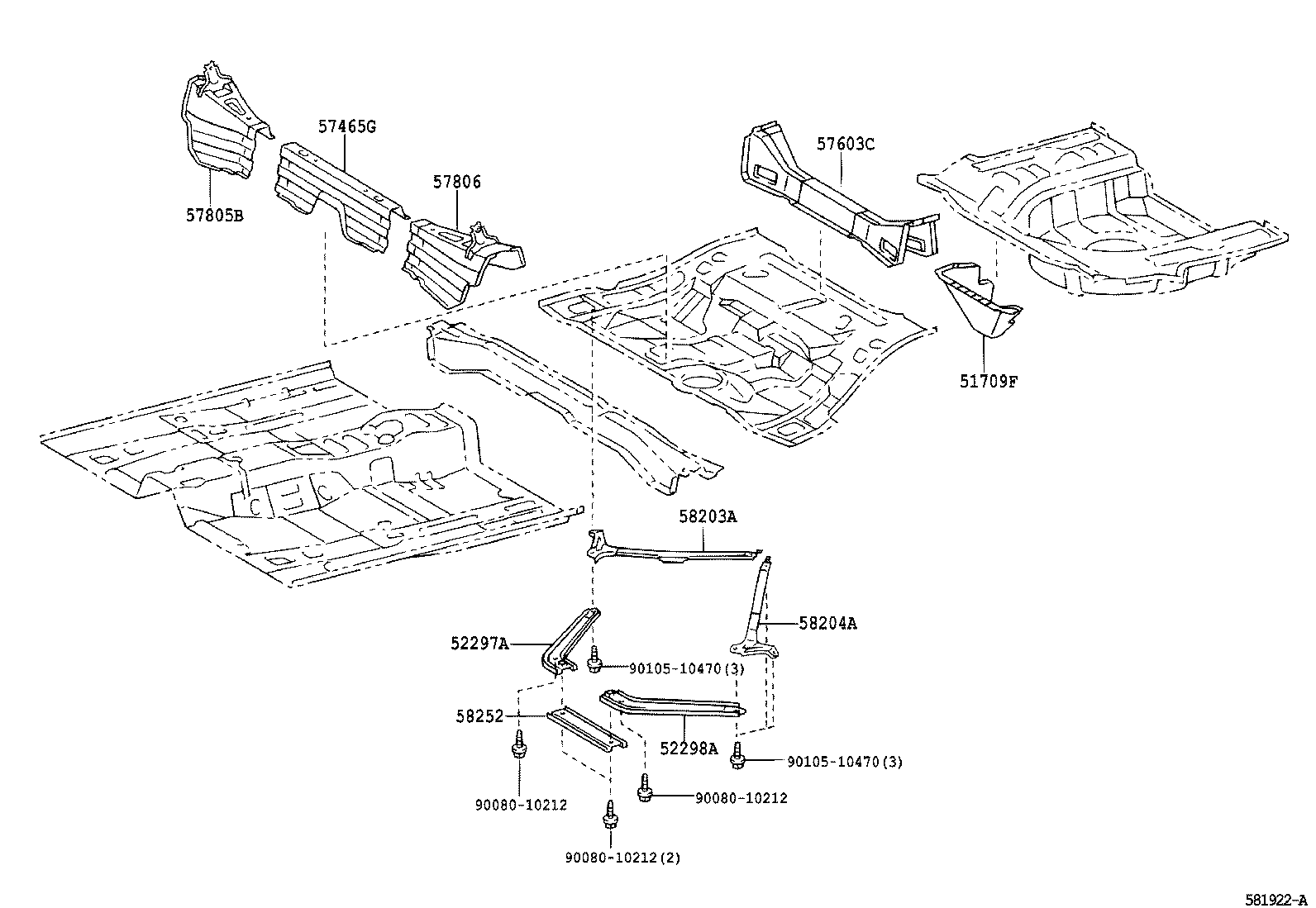

Floor Pan & Lower Back Panel

35 part groups · 2 illustrations

PNC	Description
51709F	Bracket Sub-assy, Torsion Bar
52297A	Brace, Rear Suspension Member, Rear Lower RH
52298A	Brace, Rear Suspension Member, Rear Lower LH
57465G	Gusset, Center Floor Crossmember
57603C	Gusset Sub-assy, Rear Floor Crossmember
57654A	Member, Rear Floor Cross, NO.3
57805B	Reinforcement Sub-assy, Belt Anchor, RH
57806	Reinforcement Sub-assy, Belt Anchor, LH
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58111	Pan, Front Floor
58115	Reinforcement, Front Floor Panel, Front
58136A	Cover, Front Floor Service Hole
58171	Reinforcement, Parking Brake Base
58189	Reinforcement, Exhaust Pipe Clamp Bracket
58203A	Reinforcement Sub-assy, Center Floor Panel, RH
58204A	Reinforcement Sub-assy, Center Floor Panel, LH
58208	Pan, Center Floor
58212C	Pan, Center Floor, Front
58215C	Reinforcement, Center Floor Panel, NO.2 RH
58216C	Reinforcement, Center Floor Panel, NO.2 LH
58234A	Bracket, Exhaust Pipe Mounting, Inner
58252	Brace, Floor Panel, Rear
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58323E	Reinforcement, Rear Bumper Arm Support, RH
58324D	Reinforcement, Rear Bumper Arm Support, LH
58325E	Cover, Rear Floor Service Hole
58336B	Reinforcement, Rear Floor Pan
58337D	Reinforcement, Rear Floor Pan, LH
58369B	Bracket, Fuel Tube, NO.3
58621F	Silencer, Center Console, NO.1
58676B	Pad, Rear Floor Silencer, NO.1 RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
