Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

13 part groups · 2 illustrations

Illustrations

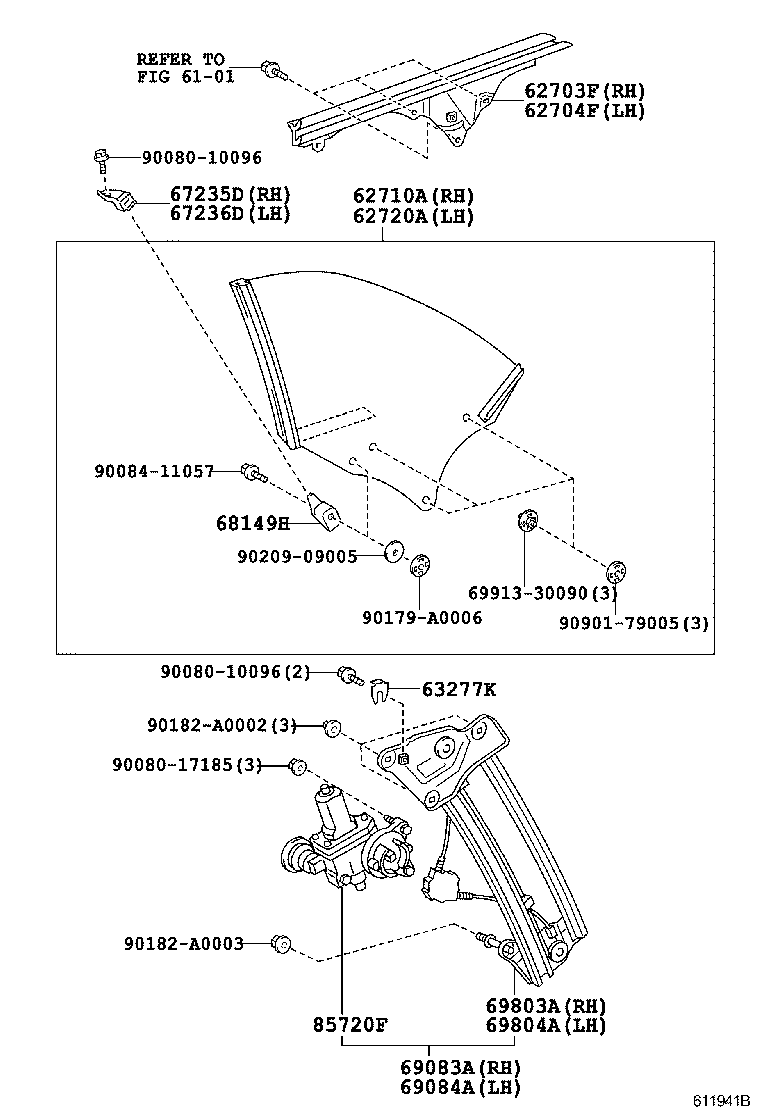

Figure 611833 611833 2003-07 → — Figure 611941B 611941B 2004-02 → —

Part groups

PNCDescription
62703F Retainer Sub-assy, Quarter Window Glass, Rear RH
62704F Retainer Sub-assy, Quarter Window Glass, Rear LH
62710A Window Assy, Quarter, RH
62720A Window Assy, Quarter, LH
63277K Shim, Quarter Window
67235D Stabilizer, Quarter Window Glass Female, RH
67236D Stabilizer, Quarter Window Glass Female, LH
68149H Stabilizer, Quarter Window Glass Male
69083A Guide Sub-assy, Quarter Window, RH
69084A Guide Sub-assy, Quarter Window, LH
69803A Regulator Sub-assy, Quarter Window, RH
69804A Regulator Sub-assy, Quarter Window, LH
85720F Motor Assy, Power Window Regulator, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
