Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

31 part groups · 3 illustrations

Illustrations

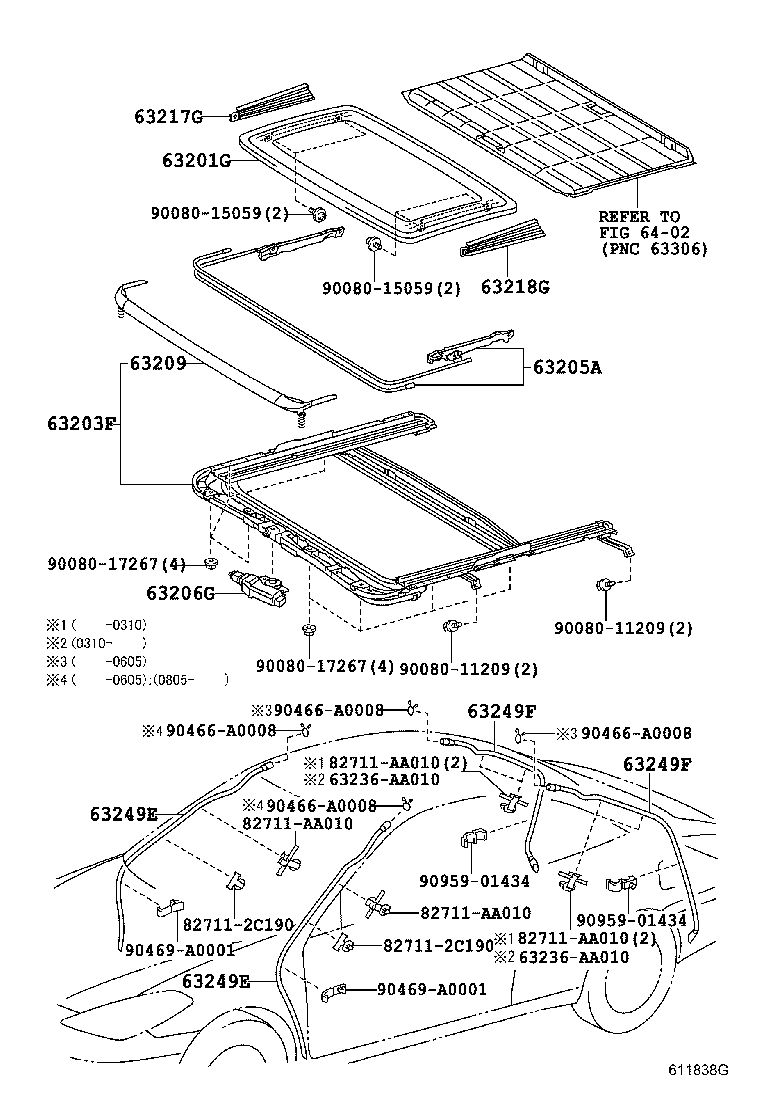

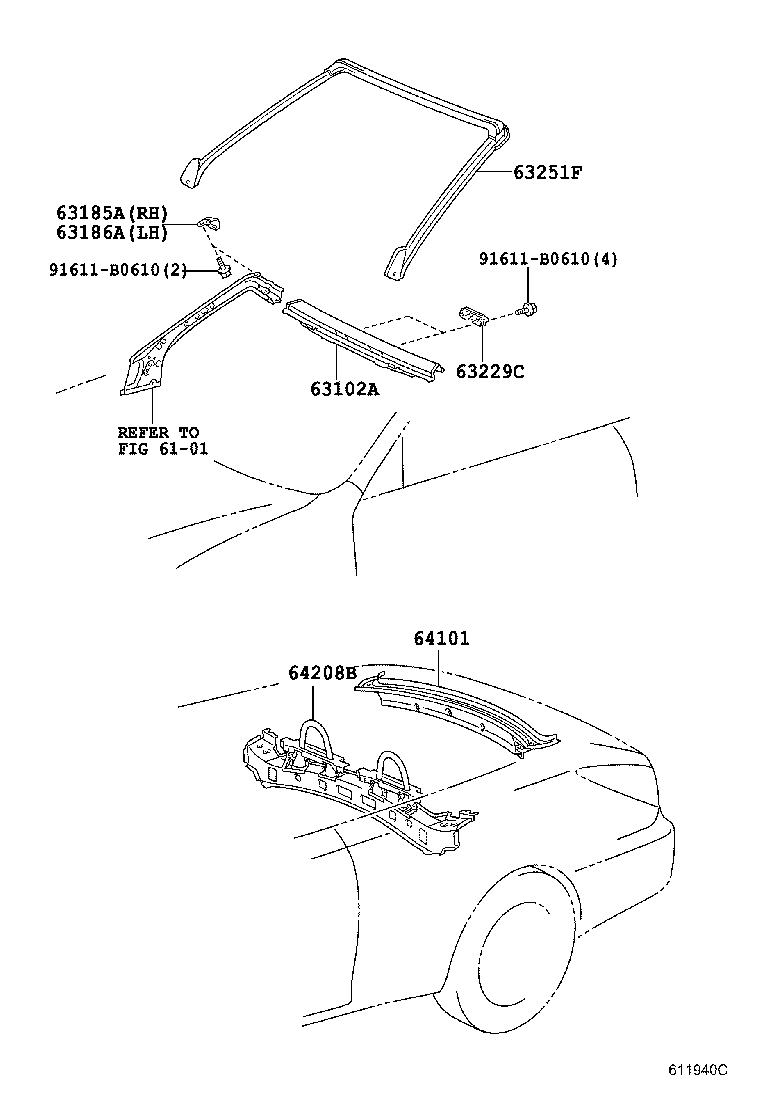

Figure 611837F 611837F 2003-07 → — Figure 611838G 611838G 2003-07 → — Figure 611940C 611940C 2004-02 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132 Panel, Windshield Header, Inner
63133B Frame, Back Window
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63147F Bracket, Roof Panel Reinforcement, RH
63148E Bracket, Roof Panel Reinforcement, LH
63185A Bracket, Roof Rack, Front RH
63186A Bracket, Roof Rack, Front LH
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63206G Gear Sub-assy, Sliding Roof Drive
63209 Panel Sub-assy, Roof Wind Deflector
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63229C Bracket, Roof Headlining, NO.2
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251F Weatherstrip, Removable Roof, Front
64101 Panel Sub-assy, Upper Back
64165B Cover, Upper Back Panel Hole, NO.1
64208B Member Sub-assy, Room Partition Cross
64811 Glass, Back Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
